CHAIN CASE - SHOCK ABSORBER

GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

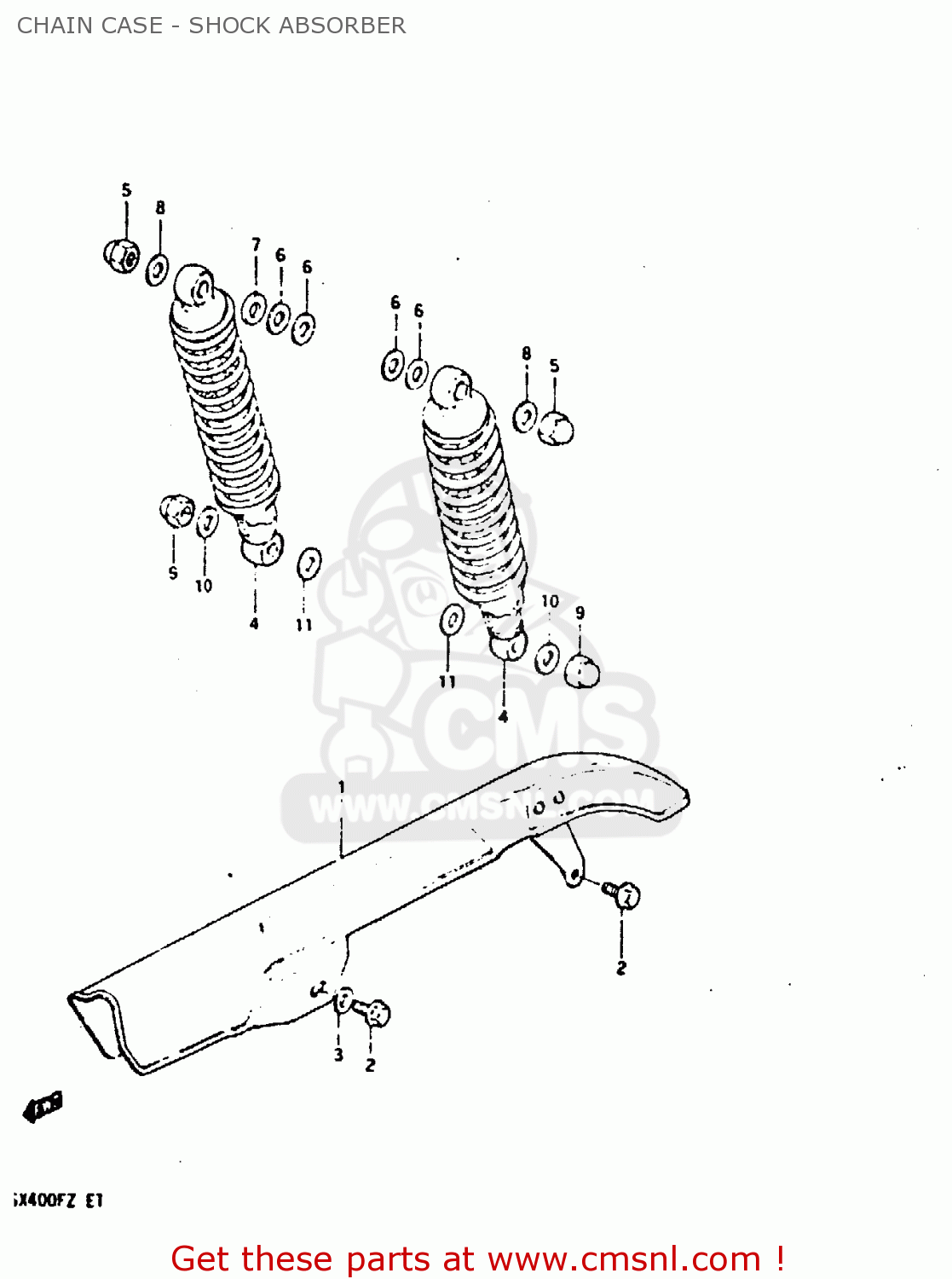

Chain case - shock absorber diagram GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

prices are in EUR

ref

part #

description

quantity

6131033200
ref: 1

CHAIN CASE

€ 46.00

0151706108
ref: 2

BOLT

€ 2.50

0916906026
ref: 3

WASHER

€ 2.00

4-1

6210033210
ref: 4-1
MODEL X

SHOCK ABSORBER, REAR

€ 0.00

4-2

6210033230
ref: 4-2
MODEL Z

ABSORBER ASSY,RR SHOCK

€ 188.00

0914510001
ref: 5

NUT

€ 2.50

0832211128
ref: 6

WASHER

€ 2.00

0916012012
ref: 7

WASHER (12.5X24X3.2)

€ 2.50

0916010001
ref: 8

WASHER

€ 2.00

0831311108
ref: 9

NUT, LOWER LH

€ 2.50

0916010001
ref: 10

WASHER

€ 2.00

0916012004
ref: 11

WASHER (12.5X24X1.6)

€ 2.00
