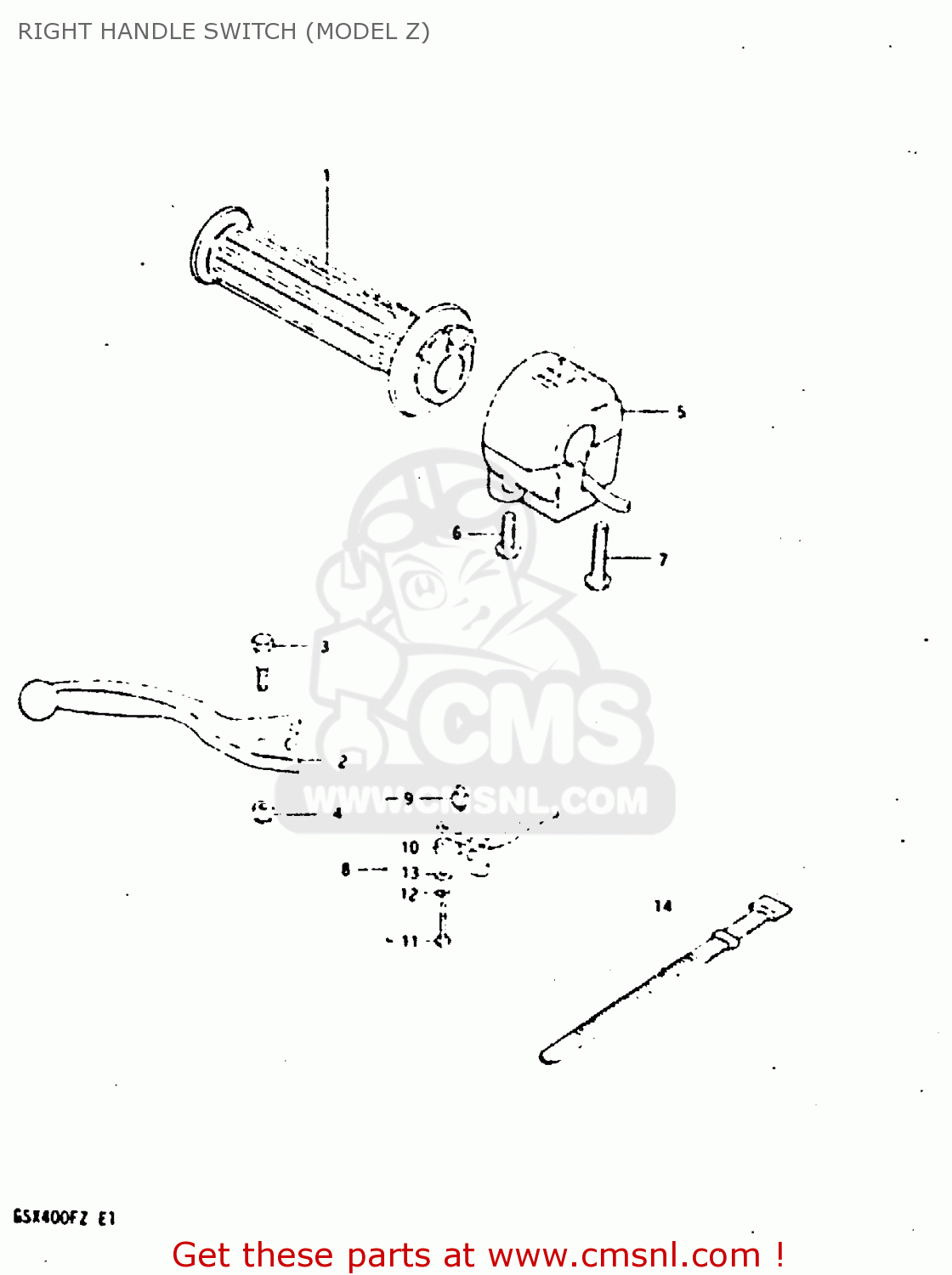

RIGHT HANDLE SWITCH (MODEL Z)

GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

Right handle switch (model z) diagram GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

RIGHT HANDLE SWITCH (MODEL Z) GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

RIGHT HANDLE SWITCH (MODEL Z) GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

prices are in EUR

ref

part #

description

quantity

1

5711044011
ref: 1

GRIP,THROTTLE

€ 33.00

2

5742049101
ref: 2

LEVER,BRAKE

€ 36.50

3

5743118621
ref: 3

BOLT

€ 8.00

4

0831921068
ref: 4

NUT 6MM

€ 2.00

5

3720034411
ref: 5

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 108.50

6

0211205258
ref: 6

SCREW

€ 2.00

7

0211205358
ref: 7

SCREW

€ 1.50

8

5746049300
ref: 8

SWITCH ASSEMBLY

€ 40.00

9

5746518601
ref: 9

CONTACT,SWITCH

€ 4.50

10

5748133010
ref: 10

COVER,FR BK TERMINAL BASE

€ 19.50

11

0912503105
ref: 11

SCREW

€ 2.50

12

0832121038
ref: 12

LOCK WASHER

€ 1.50

13

0832221038
ref: 13

WASHER

€ 2.00

14

0940712402
ref: 14

CLAMP(L:120)

€ 3.00
