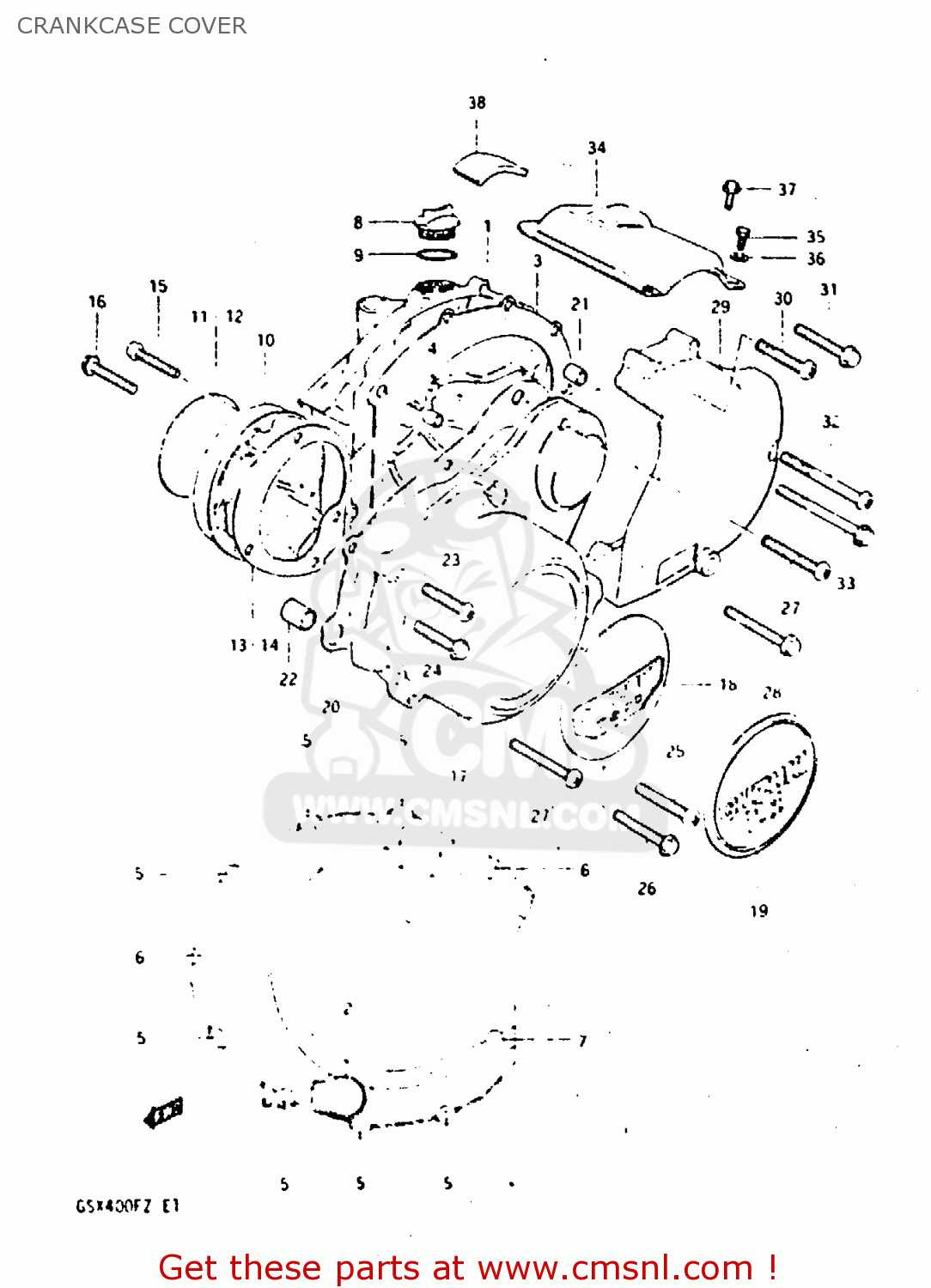

CRANKCASE COVER

ref

part #

description

quantity

1-1

1134033200
ref: 1-1
~E.NO.114427

COVER, CLUTCH

€ 127.00

1-2

1134033201
ref: 1-2
E.NO.114428~120761

COVER, CLUTCH

€ 127.00

1-3

1134033202
ref: 1-3
E.NO.120762~

COVER, CLUTCH

€ 127.00

2-1

1197145010
ref: 2-1
~E.NO.120761

LENS,OIL LEVEL CHECK

€ 13.00

2-2

1197143210
ref: 2-2
E.NO.120762~

LENS, OIL LEVEL

€ 0.00

3

1148233200
ref: 3

GASKET (MCA)

€ 17.00

4

0421109129
ref: 4

PIN

€ 2.00

5-1

0211206258
ref: 5-1

SCREW

€ 2.00

5-2

0154706258
ref: 5-2

BOLT

€ 2.50

6-1

0211206308
ref: 6-1

SCREW 6X30

€ 2.50

6-2

0154706308
ref: 6-2

BOLT (6X30)

€ 2.50

7-1

0211206458
ref: 7-1

SCREW (6X45)

€ 2.00

7-2

0154706458
ref: 7-2

BOLT

€ 2.50

8

0925930003
ref: 8

PLUG

€ 8.50

9

0928027002
ref: 9

O-RING

€ 3.00

10-1

1138133201
ref: 10-1
~E.NO.120761

COVER, CONTACT BREAKER

€ 57.50

10-2

1138133202
ref: 10-2
E.NO.120762~

COVER, CONTACT BREAKER

€ 57.50

11

6823533200
ref: 11
MODEL X

EMBLEM,CONTACT

€ 14.00

12

6823533210
ref: 12
MODEL Z

EMBLEM,CONTACT BREAKER COVER

€ 14.00

13

1149133201
ref: 13
~E.NO.112239

GASKET,CONTACT BREAKER COVER (MCA)

€ 4.50

14

1149133202
ref: 14
E.NO.112240~

GASKET,CONTACT BREAKER COVER (NAS)

€ 4.50

15

0211205308
ref: 15

SCREW

€ 1.50

16

0154405308
ref: 16

BOLT (5*30)

€ 2.00

17-1

1135133200
ref: 17-1
~E.NO.114427

COVER, GENERATOR

€ 172.50

17-2

1135133201
ref: 17-2
E.NO.114428~

COVER,MAGNETO

€ 172.50

18

6823349200
ref: 18
MODEL X

EMBLEM,MAGNETO COVER

€ 29.50

19

6823349500
ref: 19
MODEL Z

EMBLEM,MAGNETO COVER

€ 23.50

20

1148333200
ref: 20

GASKET (MCA)

€ 11.50

21

0421109129
ref: 21

PIN

€ 2.00

22

0920613001
ref: 22

PIN

€ 2.50

23

0211206308
ref: 23

SCREW 6X30

€ 2.50

24

0154706308
ref: 24

BOLT (6X30)

€ 2.50

25

0211206358
ref: 25

SCREW (6X35)

€ 2.50

26

0154706358
ref: 26

BOLT (6X35)

€ 2.50

27

0211206408
ref: 27

SCREW

€ 2.00

28

0154706408
ref: 28

BOLT (6X40)

€ 2.50

29-1

1136133200
ref: 29-1
~E.NO.112239

COVER, ENGINE SPROCKET

€ 43.50

29-2

1136133202
ref: 29-2
E.NO.112240~

COVER, ENGINE SPROCKET

€ 43.50

30

0211206358
ref: 30

SCREW (6X35)

€ 2.50

31

0154706358
ref: 31

BOLT (6X35)

€ 2.50

32

0211206658
ref: 32

SCREW 6X65

€ 2.00

33

0154706658
ref: 33

BOLT (6X65)

€ 2.00

34

1138234200
ref: 34

COVER

€ 16.50

35

0110405088
ref: 35

BOLT 5X16

€ 2.00

36

0832221058
ref: 36

WASHER

€ 2.50

37

0154405088
ref: 37

BOLT (5*8)

€ 2.00

38

1136234200
ref: 38

DAMPER,STARTER MOTOR CLUTCH

€ 5.50
