SEAT

GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

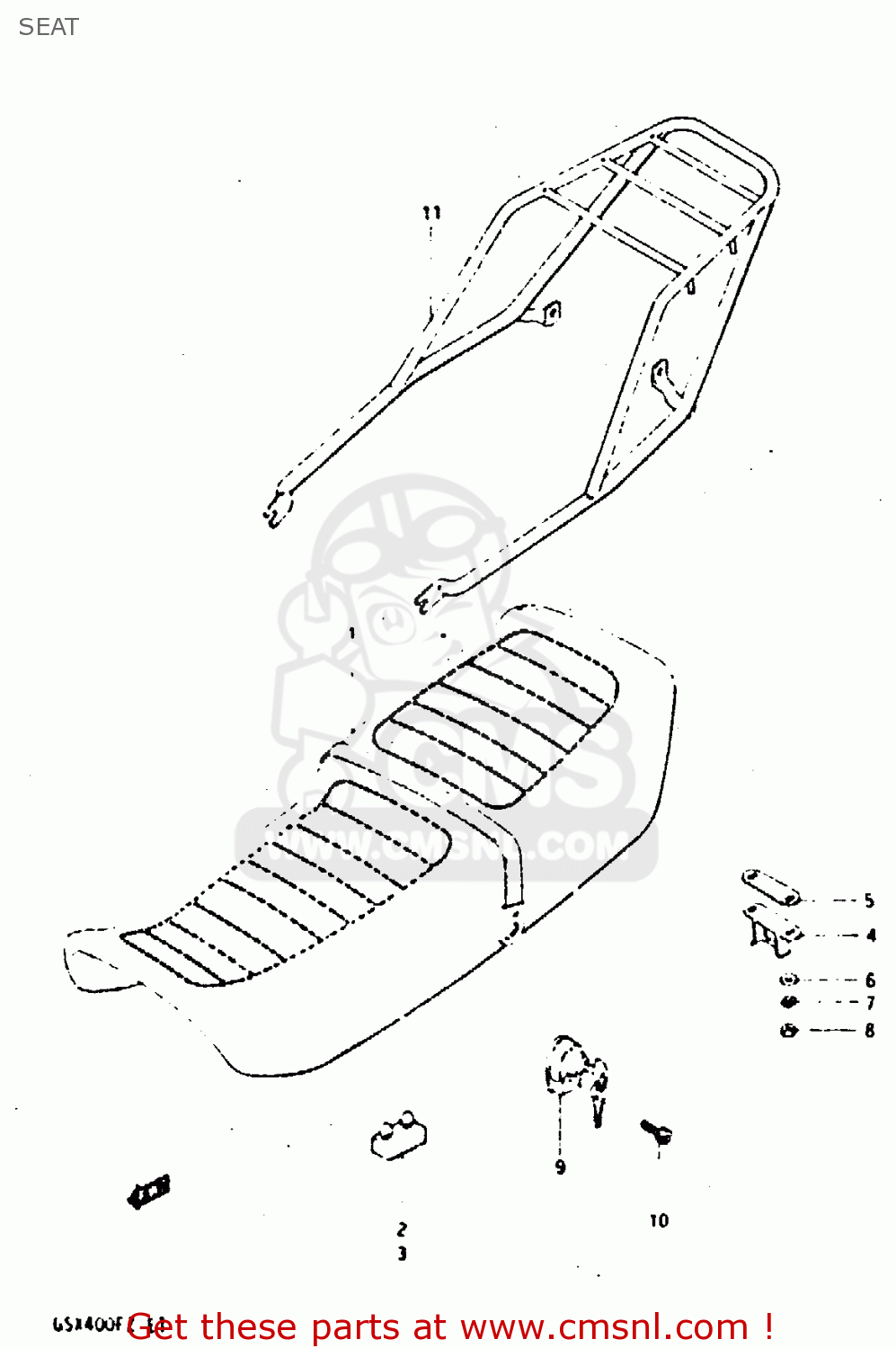

Seat diagram GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

SEAT GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

SEAT GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

prices are in EUR

ref

part #

description

quantity

1-1

451003320041G
ref: 1-1
MODEL X

SEAT ASSY (BLACK)

€ 387.00

1-2

451003321047G
ref: 1-2
MODEL Z

SEAT ASSY (BLACK)

€ 387.00

2

0932108006
ref: 2

CUSHION

€ 3.00

3

0932108010
ref: 3

CUSHION

€ 4.00

4

4521033200
ref: 4

STRIKER, SEAT LOCK

€ 17.50

5

4521744100
ref: 5

SHIM,SEAT LOCK STRIKER

€ 4.50

6

0832221068
ref: 6

WASHER

€ 2.00

7

0832121068
ref: 7

LOCK WASHER

€ 2.50

8

0831022068
ref: 8

NUT 6MM

€ 2.50

9

9570034210
ref: 9

LOCK ASSY,HELMET

€ 59.00

10

0910605008
ref: 10

BOLT 5X25

€ 2.00

11

4631033200
ref: 11
OPT

CARRIER, SPORTS

€ 43.00
