FRONT RIGHT FORK (MODEL Z)

GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

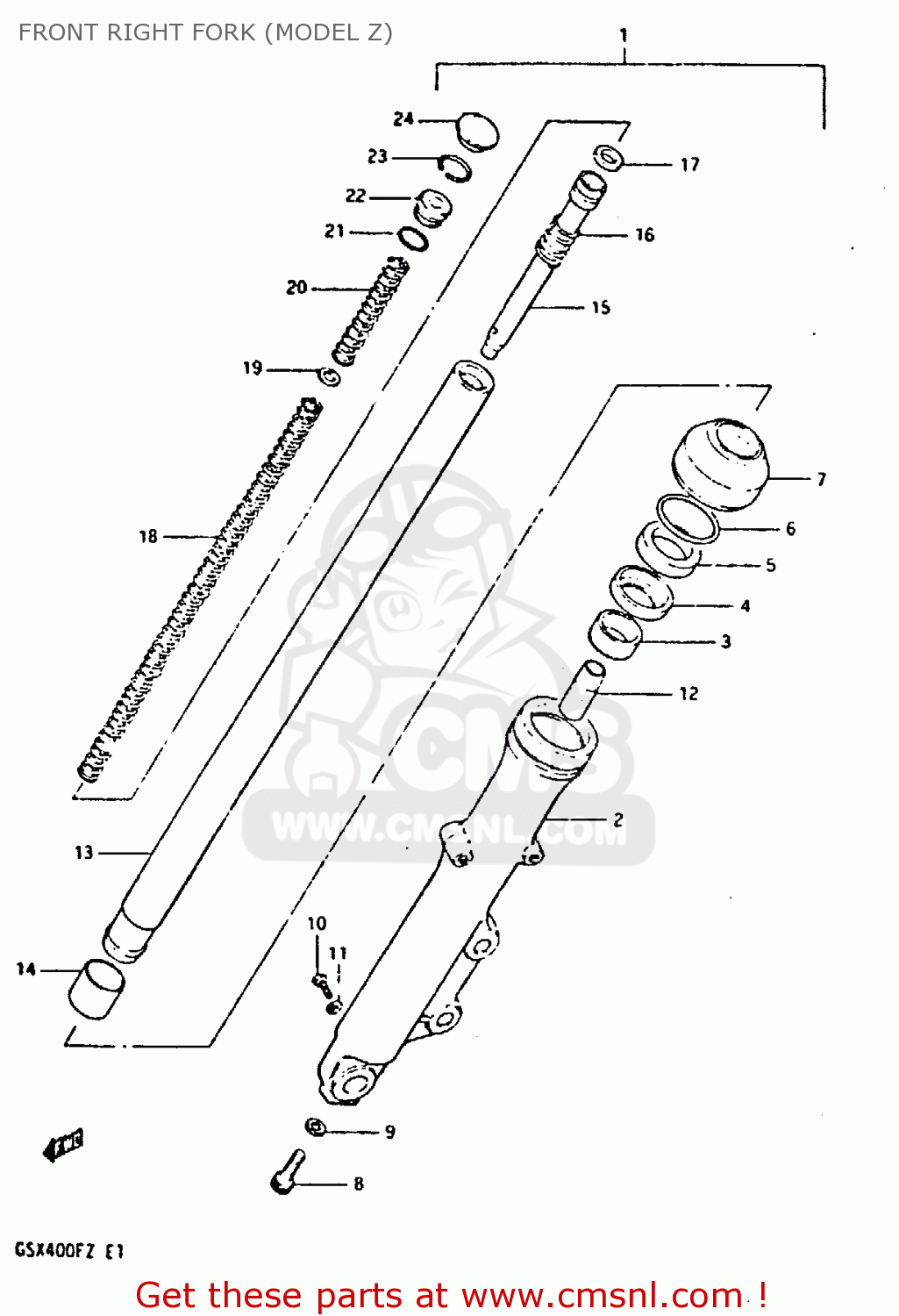

Front right fork (model z) diagram GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

prices are in EUR

ref

part #

description

quantity

5110333230
ref: 1

DAMPER ASSY, RH

€ 0.00

5113033230
ref: 2

OUTER TUBE RH

€ 195.00

5115211420
ref: 3

BUSH,GUIDE

€ 16.50

5116844030
ref: 4

SPACER,OIL SEAL

€ 4.50

5115337310
ref: 5

OIL SEAL,FRONT FORK

€ 15.00

5115633130
ref: 6

CIRCLIP,FORK OIL SEAL

€ 4.50

5157137310
ref: 7

DUST SEAL

€ 22.00

5114748130
ref: 8

BOLT(8X27)

€ 3.50

5114831030
ref: 9

GASKET (NAS)

€ 4.00

0110706088
ref: 10

BOLT

€ 2.50

5118331030
ref: 11

GASKET,DRAIN,PLUG (NAS)

€ 4.00

5119548000
ref: 12

PIECE,OIL LOCK

€ 8.50

5111033230
ref: 13

INNER TUBE

€ 145.50

5112111420
ref: 14

BUSH

€ 16.50

5114633200
ref: 15

CYLINDER

€ 23.00

5117711420
ref: 16

SPRING,REBOUND

€ 4.50

5119633130
ref: 17

RING,PISTON

€ 7.50

5118433230
ref: 18

SPRING (B)

€ 20.50

5117236331
ref: 19

SEAT,SPRING

€ 2.50

5117133200
ref: 20

SPRING A

€ 9.00

5118133131
ref: 21

O RING

€ 5.00

5117548500
ref: 22

SEAT,SPRING

€ 9.00

5116948500
ref: 23

RING,STOPPER

€ 2.00

5118944031
ref: 24

CAP

€ 7.00
