CRANKSHAFT

GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

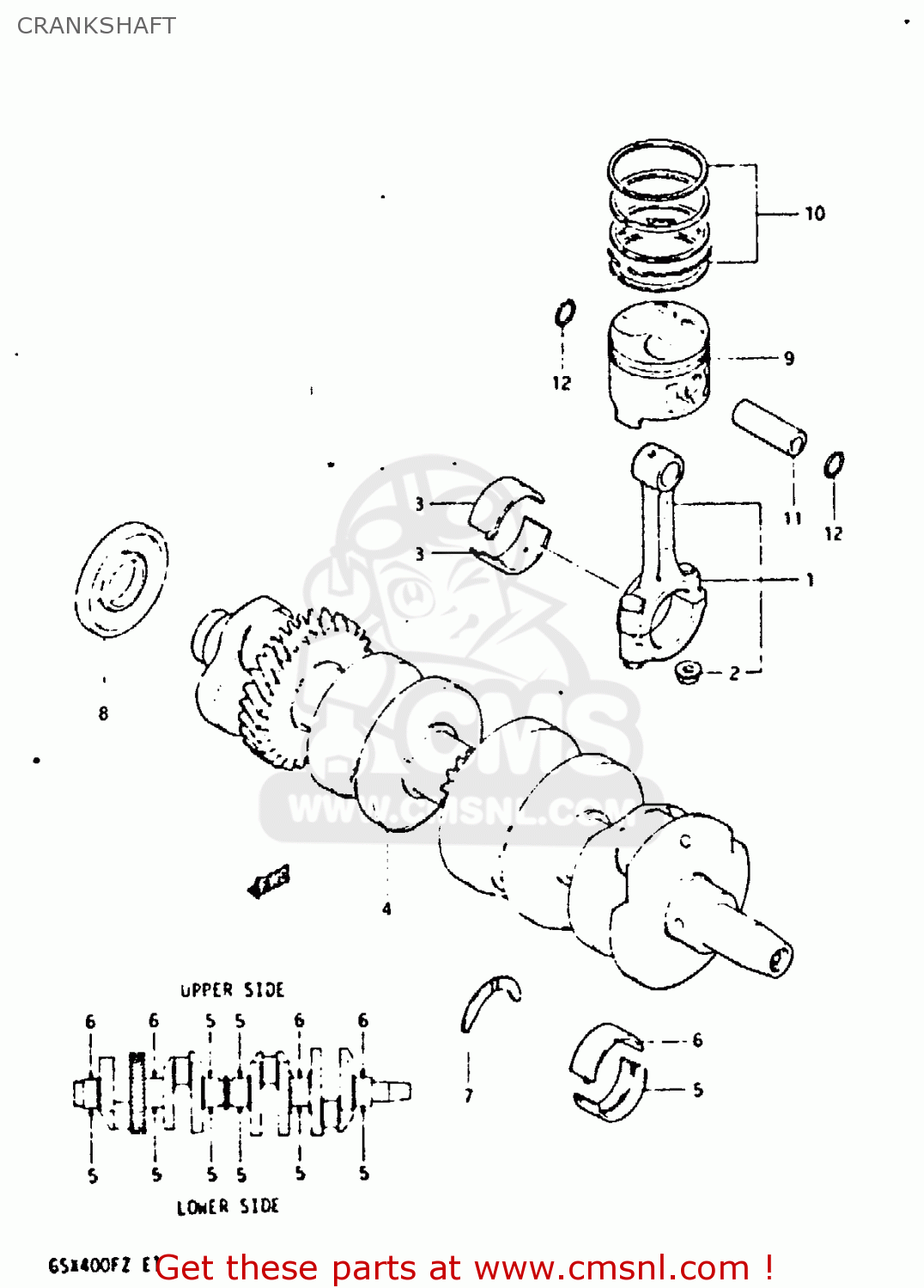

Crankshaft diagram GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

CRANKSHAFT GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48
CRANKSHAFT GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48
CRANKSHAFT GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48
prices are in EUR
ref
part #
description
quantity
1
1216033200
ref: 1
ROD ASSY, CONNECTING
1216033200
€ 33.00
2
0915908033
ref: 2
NUT
0915908033
€ 2.50
3-1
1216433210010
ref: 3-1
GREEN
BEARING,CRANK PIN
1216433210010
€ 12.00
3-2
1216433210020
ref: 3-2
BLACK
BEARING,CRANK PIN
1216433210020
€ 12.50
3-3
1216433210030
ref: 3-3
BROWN
BEARING,CRANK PIN
€ 12.50
3-4
1216433210040
ref: 3-4
YELLOW
BEARING,CRANK PIN
1216433210040
€ 11.50
3-5
1216433210025
ref: 3-5
US:0.25
BEARING,CRANK PIN(US:0.25)
1216433210025
€ 11.50
3-6
1216433210050
ref: 3-6
US:0.5
BEARING,CRANK PIN(US:0.5)
1216433210050
€ 11.00
4
1222033203
ref: 4
CRANKSHAFT
€ 802.50
5-1
1222911400010
ref: 5-1
GREEN
METAL CRANKSHAFT (YELLOW)
€ 9.50
5-2
1222911400020
ref: 5-2
BLACK
METAL CRANKSHAFT (BROWN)
1222911400020
€ 12.00
5-3
1222911400030
ref: 5-3
BROWN
METAL CRANKSHAFT (BLACK)
1222911400030
€ 10.00
5-4
1222911400040
ref: 5-4
YELLOW
METAL CRANKSHAFT (GREEN)
1222911400040
€ 10.50
5-5
1222911400025
ref: 5-5
US:0.25
BEARING,CRANKSHAFT(US:0.25)
1222911400025
€ 9.50
5-6
1222911400050
ref: 5-6
US:0.5
METAL CRANKSHAFT
1222911400050
€ 9.50
6-1
1222911410010
ref: 6-1
GREEN
METAL CRANKSHAFT (YELLOW)
€ 9.50
6-2
1222911410020
ref: 6-2
BLACK
METAL CRANKSHAFT (BROWN)
1222911410020
€ 12.00
6-3
1222911410030
ref: 6-3
BROWN
METAL CRANKSHAFT
1222911410030
€ 10.00
6-4
1222911410040
ref: 6-4
YELLOW
METAL CRANKSHAFT
1222911410040
€ 10.50
6-5
1222911410025
ref: 6-5
US:0.25
BEARING, CRANKSHAFT UPPER
1222911410025
€ 9.50
6-6
1222911410050
ref: 6-6
US:0.5
METAL,CRANKSHA
€ 9.50
7-1
1222844104
ref: 7-1
GREEN
BEARING,CRANK THRUST(GREEN)
€ 8.00
7-2
1222844105
ref: 7-2
BRACK
PLATE,CRANK THRUST
€ 6.50
7-3
1222844106
ref: 7-3
NOT MARKER
BEARING,CRANK THRUST
1222844106
€ 8.50
7-4
1222844107
ref: 7-4
BROWN
PLATE,CRANK THRUST
1222844107
€ 5.50
7-5
1222844108
ref: 7-5
YELLOW
PLATE,CRANK THRUST
1222844108
€ 7.50
8
0928330036
ref: 8
OIL SEAL 30X56
0928330036
€ 13.00
9-1
1211133202
ref: 9-1
PISTON (STD)
1211133202
€ 77.50
9-2
1211133202050
ref: 9-2
PISTON (OS:0.5)
€ 108.50
9-3
1211133202100
ref: 9-3
PISTON 1.00
1211133202100
€ 109.00
10-1
1214033211
ref: 10-1
PISTON RING SET (STD)
1214033211
€ 61.50
10-2
1214033211050
ref: 10-2
PISTON RING SET (OS:0.5)
1214033211050
€ 31.50
10-3
1214033211100
ref: 10-3
RING SET
€ 99.00
11
1215111001
ref: 11
PIN,PISTON
1215111001
€ 19.50
12
0938114001
ref: 12
RING,SNAP 14MM
0938114001
€ 1.50
