WIRING HARNESS

GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

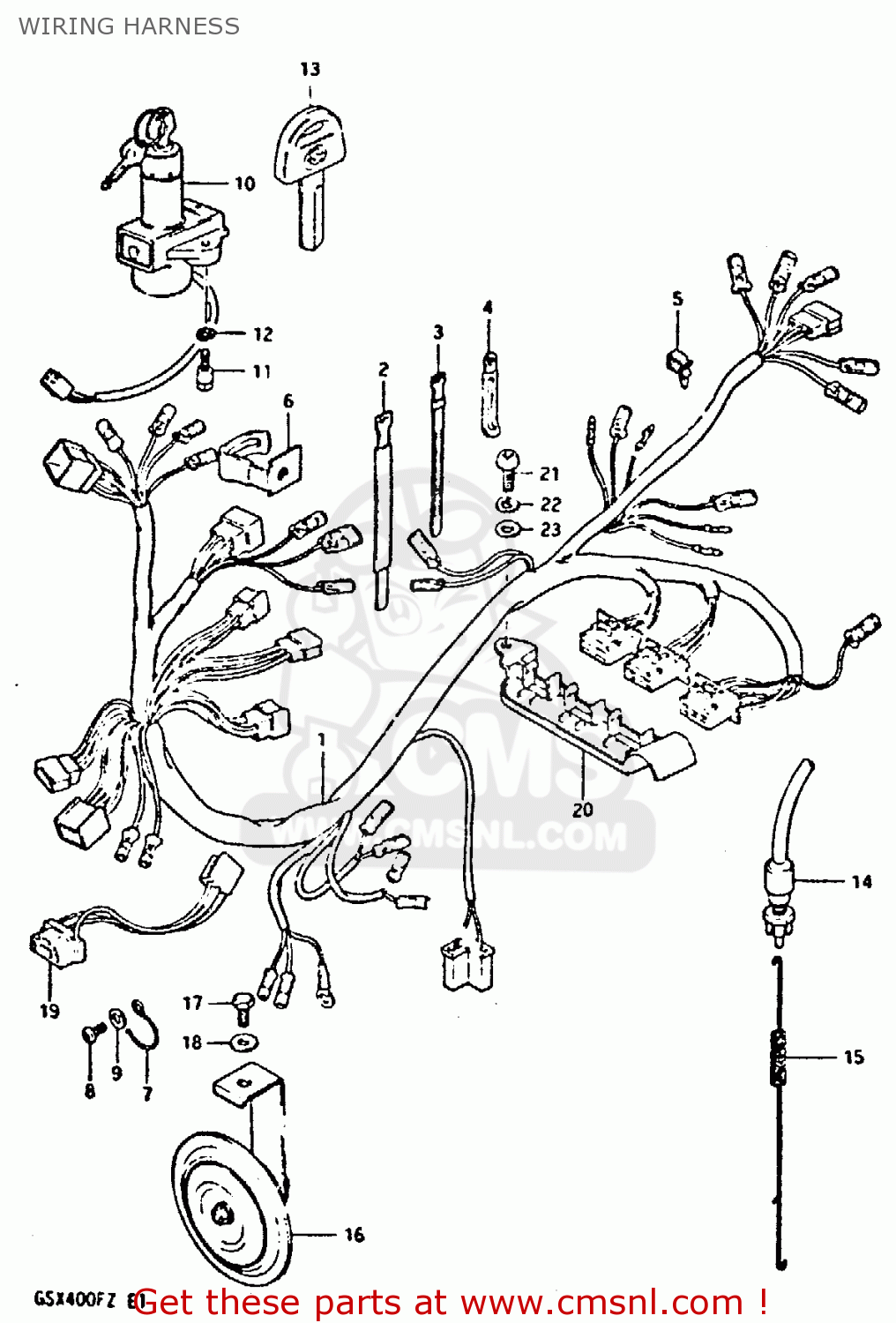

Wiring harness diagram GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

WIRING HARNESS GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48
WIRING HARNESS GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48
WIRING HARNESS GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48
prices are in EUR
ref
part #
description
quantity
1-1
3661033201
ref: 1-1
MODEL X
WIRING HARNESS
€ 157.50
1-2
3661033220
ref: 1-2
MODEL Z
WIRING HARNESS
€ 157.50
2
0940718301
ref: 2
CLAMP
0940718301
€ 6.00
3
0940708401
ref: 3
CLAMP(L:80)
€ 2.50
4
0940406414
ref: 4
CLAMP
€ 3.00
5
0940305305
ref: 5
CLIP
0940305305
€ 3.00
6
3665033201
ref: 6
FROM 36650-33200
CLAMP,WIRING HARNESS
€ 0.00
7
3661944000
ref: 7
GUIDE,WIRING HARNESS
3661944000
€ 2.50
8
0211206128
ref: 8
SCREW 6X12
0211206128
€ 2.00
9
0832221068
ref: 9
WASHER
0832221068
€ 2.00
10-1
3710049201
ref: 10-1
SWITCH ASSY,IGNITION
3710049201
€ 141.00
10-2
NOTUSED
ref: 10-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
11
3715247010
ref: 11
BOLT
€ 3.00
12
0832121068
ref: 12
LOCK WASHER
0832121068
€ 2.50
13
3714647010
ref: 13
OPT
KEY,BLANK
3714647010
€ 15.00
14
3774004571
ref: 14
SWITCH ASSEMBLY,STOP LAMP
€ 22.00
15
0944306019
ref: 15
FROM 09443-06006
SPRING
0944306019
€ 3.50
16-1
3850033220
ref: 16-1
MODEL X
HORN
€ 51.50
16-2
3850033222
ref: 16-2
MODEL Z
HORN
€ 51.50
16-3
NOTUSED
ref: 16-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
16-4
NOTUSED
ref: 16-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
16-5
NOTUSED
ref: 16-5
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
17
0110708128
ref: 17
BOLT 8X12
0110708128
€ 2.50
18
0832211088
ref: 18
WASHER
0832211088
€ 2.00
19
3685234000
ref: 19
LEAD WIRE,HEADLAMP
3685234000
€ 13.00
20
4745133200
ref: 20
PLATE, COUPLER
4745133200
€ 9.00
21
0110706128
ref: 21
BOLT
0110706128
€ 2.00
22
0832121068
ref: 22
LOCK WASHER
0832121068
€ 2.50
23
0832221068
ref: 23
WASHER
0832221068
€ 2.00
