CRANKCASE

GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

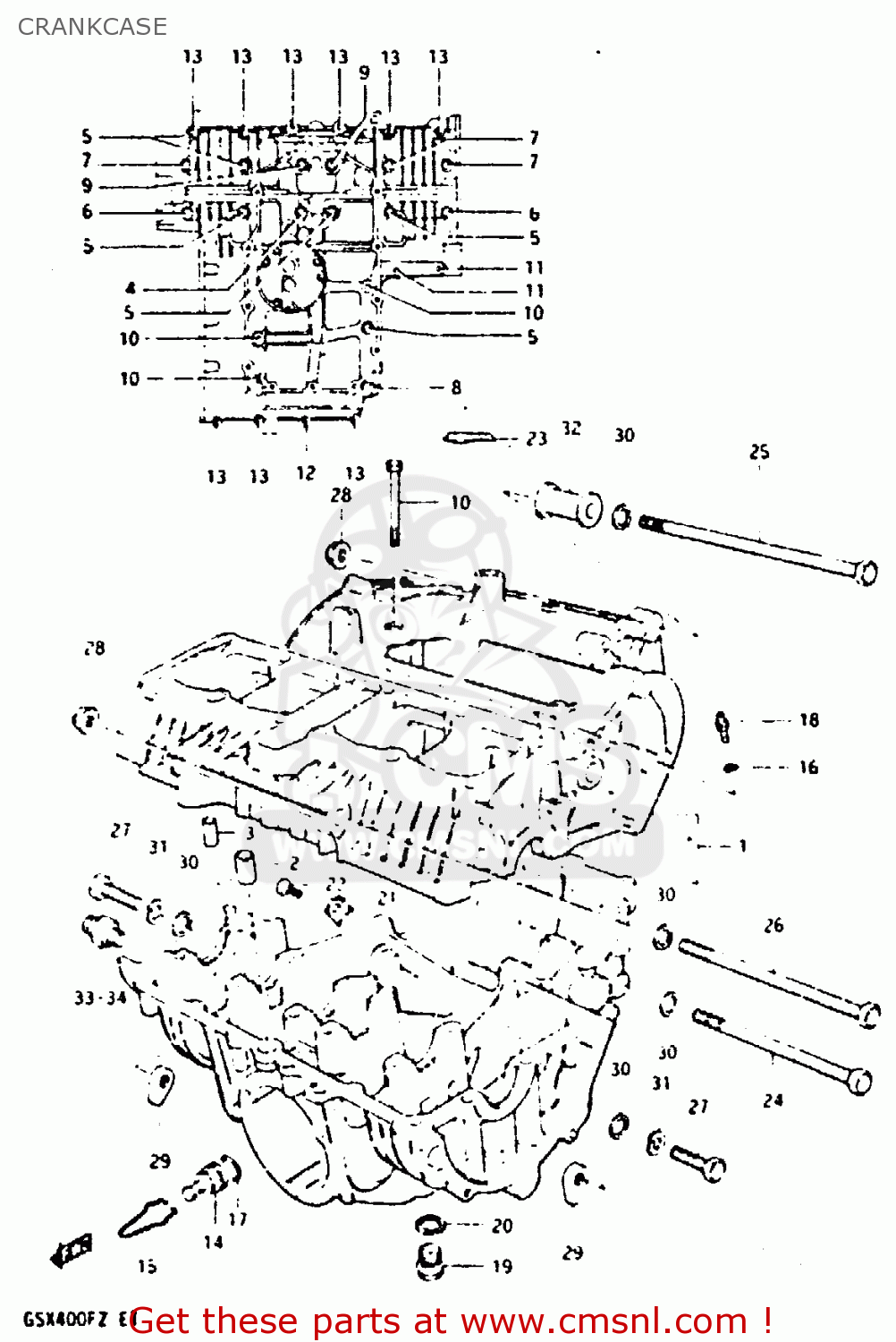

Crankcase diagram GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

CRANKCASE GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48
CRANKCASE GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48
CRANKCASE GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48
prices are in EUR
ref
part #
description
quantity
1-1
1130033833
ref: 1-1
~E.NO.120761
CRANKCASE SET
€ 0.00
1-2
1130033834
ref: 1-2
E.NO.120762~
CRANKCASE SET
€ 0.00
2
0920613004
ref: 2
PIN(10.4X13X22)
0920613004
€ 3.00
3
0920611005
ref: 3
PIN (11X20)(SUS)
€ 6.50
4
0910308020
ref: 4
BOLT
€ 8.00
5
0910308024
ref: 5
BOLT
0910308024
€ 3.00
6
0910308009
ref: 6
BOLT
0910308009
€ 5.00
7
0151708858
ref: 7
BOLT
€ 3.50
8
0151708608
ref: 8
BOLT
€ 3.50
9
0910608012
ref: 9
BOLT
€ 3.50
10
0910306025
ref: 10
BOLT
0910306025
€ 3.50
11
0151706758
ref: 11
BOLT (6X75)
€ 2.50
12
0151706558
ref: 12
BOLT
€ 2.50
13
0151706408
ref: 13
BOLT
0151706408
€ 2.50
14
1153133201
ref: 14
JET, OIL GALLERY CYLINDER
€ 0.00
15
1153333200
ref: 15
CLIP
€ 0.00
16
0928004002
ref: 16
O-RING,OIL GALLERY JET
0928004002
€ 2.00
17
0928011004
ref: 17
O RING(D:1.9,ID:11)
0928011004
€ 2.50
18
0949328010
ref: 18
JET,AIR(14)
0949328010
€ 10.50
19
0924716002
ref: 19
E.NO.112240~
PLUG
0924716002
€ 3.50
20
0916816002
ref: 20
E.NO.112240~
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
21
1132933200
ref: 21
E.NO.112240~
PLATE
€ 0.00
22
0110706128
ref: 22
E.NO.112240~
BOLT
0110706128
€ 2.00
23
6832233990
ref: 23
E.NO.120762~
NOTE, ENGINE OIL
€ 0.00
24
0910010092
ref: 24
BOLT 10X160
0910010092
€ 28.50
25
0910010140
ref: 25
BOLT 10X230
0910010140
€ 13.50
26
0910010163
ref: 26
BOLT (10*180)
€ 13.00
27
0110710358
ref: 27
BOLT,M10X1.25X
0110710358
€ 2.50
28
0831931105
ref: 28
NUT 10MM
€ 3.00
29
0915910020
ref: 29
NUT
0915910020
€ 7.50
30
0832211108
ref: 30
WASHER
€ 2.50
31
0832121108
ref: 31
LOCK WASHER
0832121108
€ 2.00
32
1161044100
ref: 32
SPACER,ENGINE MOUNT
1161044100
€ 9.50
33
3782034200
ref: 33
~E.NO.110055
SWITCH ASSEMBLY
3782034200
€ 29.00
34
3782033200
ref: 34
E.NO.110056
SWITCH ASSEMBLY
3782033200
€ 29.00
