CYLINDER

GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

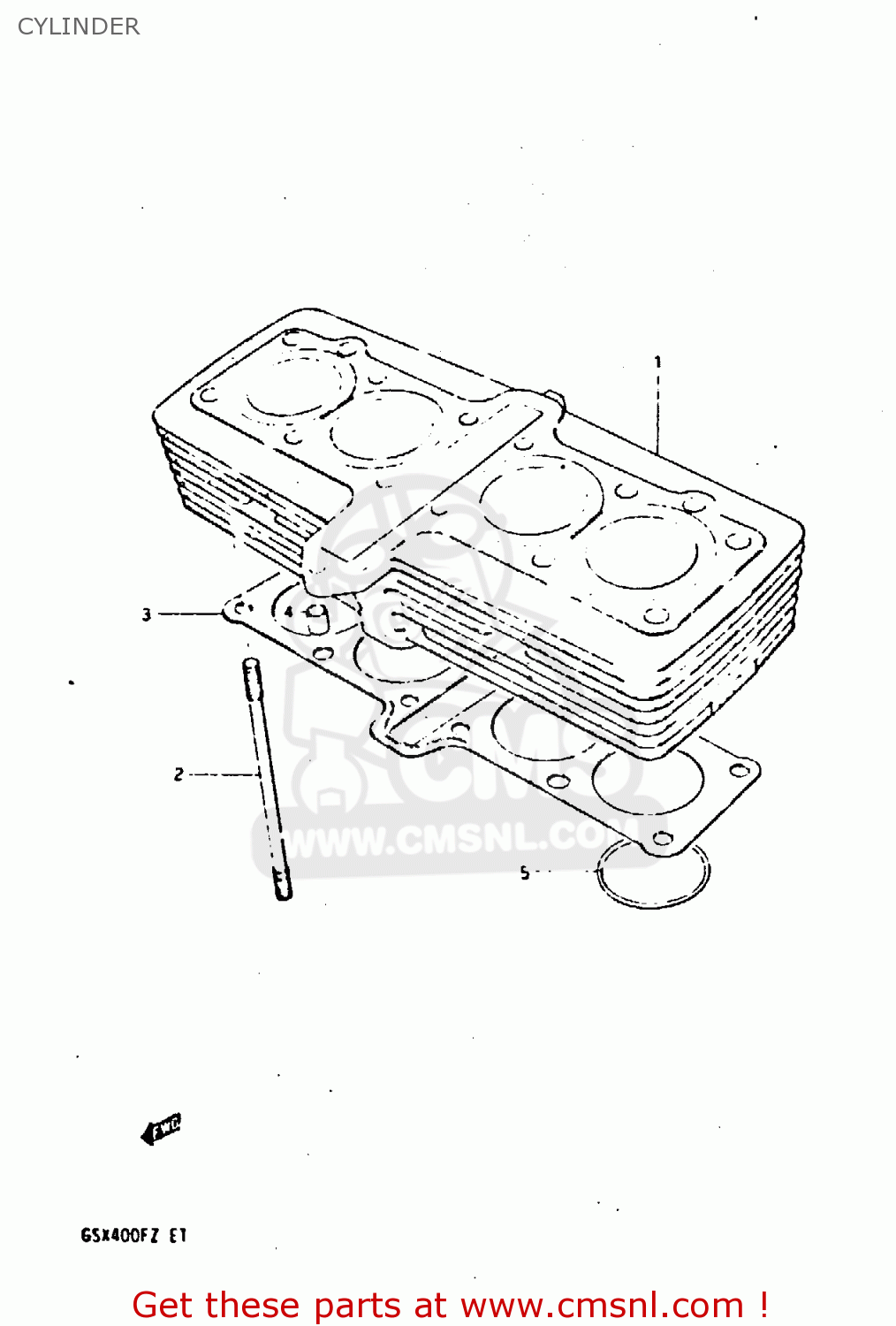

Cylinder diagram GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

CYLINDER GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

CYLINDER GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

prices are in EUR

ref

part #

description

quantity

1-1

1121033201
ref: 1-1
MODEL X

CYLINDER

€ 668.50

1-2

1121033202
ref: 1-2
MODEL Z

CYLINDER

€ 668.50

2

0910808085
ref: 2

STUD

€ 5.00

3

1124133202
ref: 3

GASKET (T:0.8) (MCA)

€ 20.50

4

0920611003
ref: 4

PIN

€ 2.00

5

0928056001
ref: 5

O-RING (D:2 ID:56.5)

€ 4.00
