RIGHT HANDLE SWITCH (MODEL X)

GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

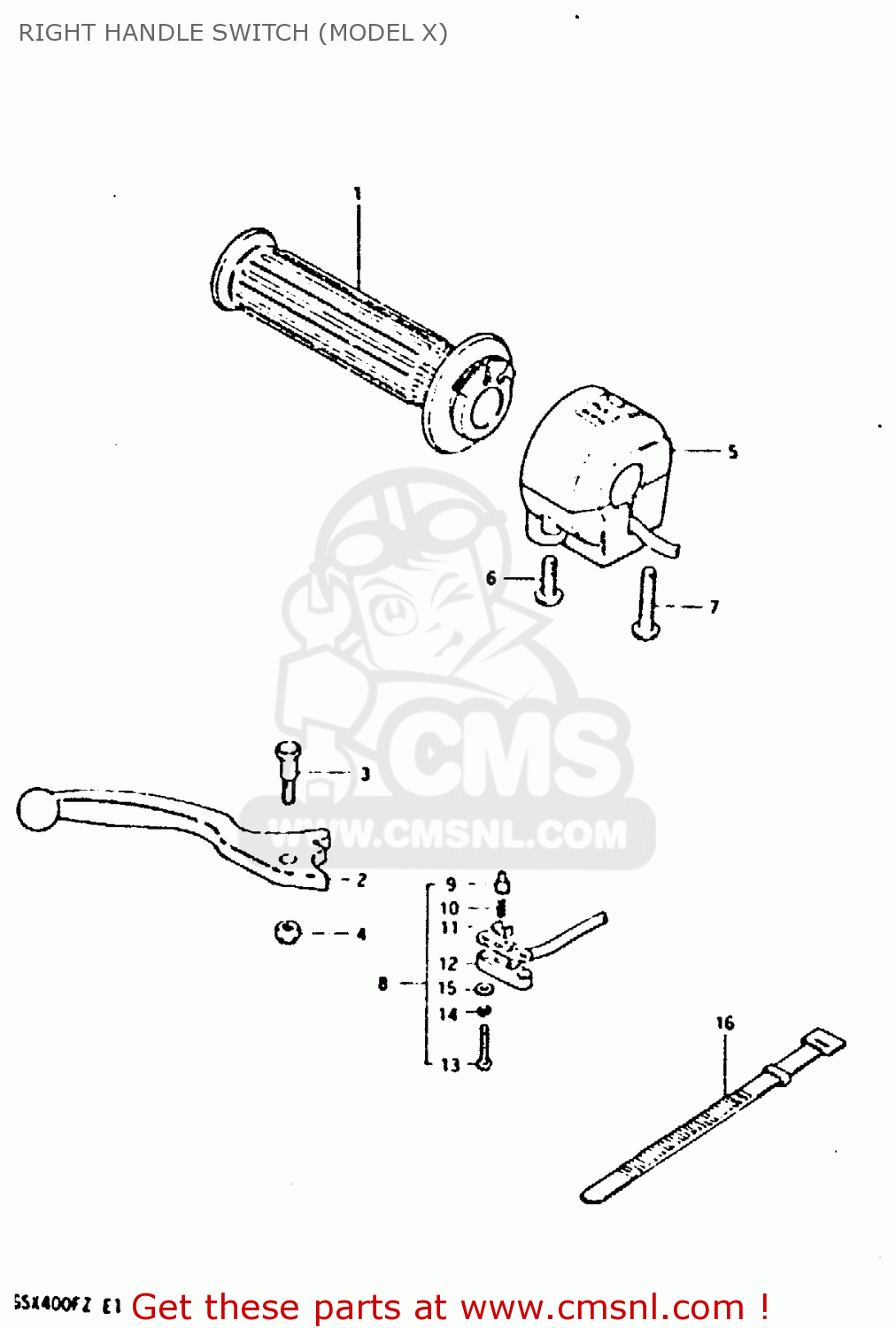

Right handle switch (model x) diagram GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48

RIGHT HANDLE SWITCH (MODEL X) GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48
RIGHT HANDLE SWITCH (MODEL X) GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48
RIGHT HANDLE SWITCH (MODEL X) GSX400F 1981 (X) (E01 E02 04 06 15 16 18 21 22 24 25 26 34 39 48
prices are in EUR
ref
part #
description
quantity
1
5711044011
ref: 1
GRIP,THROTTLE
5711044011
€ 33.00
2
5742049101
ref: 2
LEVER,BRAKE
5742049101
€ 36.50
3
5743118621
ref: 3
BOLT
5743118621
€ 8.00
4
0831921068
ref: 4
NUT 6MM
0831921068
€ 2.00
5
3720034410
ref: 5
SWITCH ASSY, HANDLE LH
3720034410
€ 108.50
6
0211205258
ref: 6
SCREW
0211205258
€ 2.00
7
0211205358
ref: 7
SCREW
€ 1.50
8
NOTUSED
ref: 8
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
9
NOTUSED
ref: 9
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10
NOTUSED
ref: 10
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
11
NOTUSED
ref: 11
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
12
NOTUSED
ref: 12
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
13
NOTUSED
ref: 13
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
14
NOTUSED
ref: 14
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
15
NOTUSED
ref: 15
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
16
0940712402
ref: 16
CLAMP(L:120)
0940712402
€ 3.00
