CARBURETOR
GSX500E 1984 (E) GENERAL EXPORT (E01)

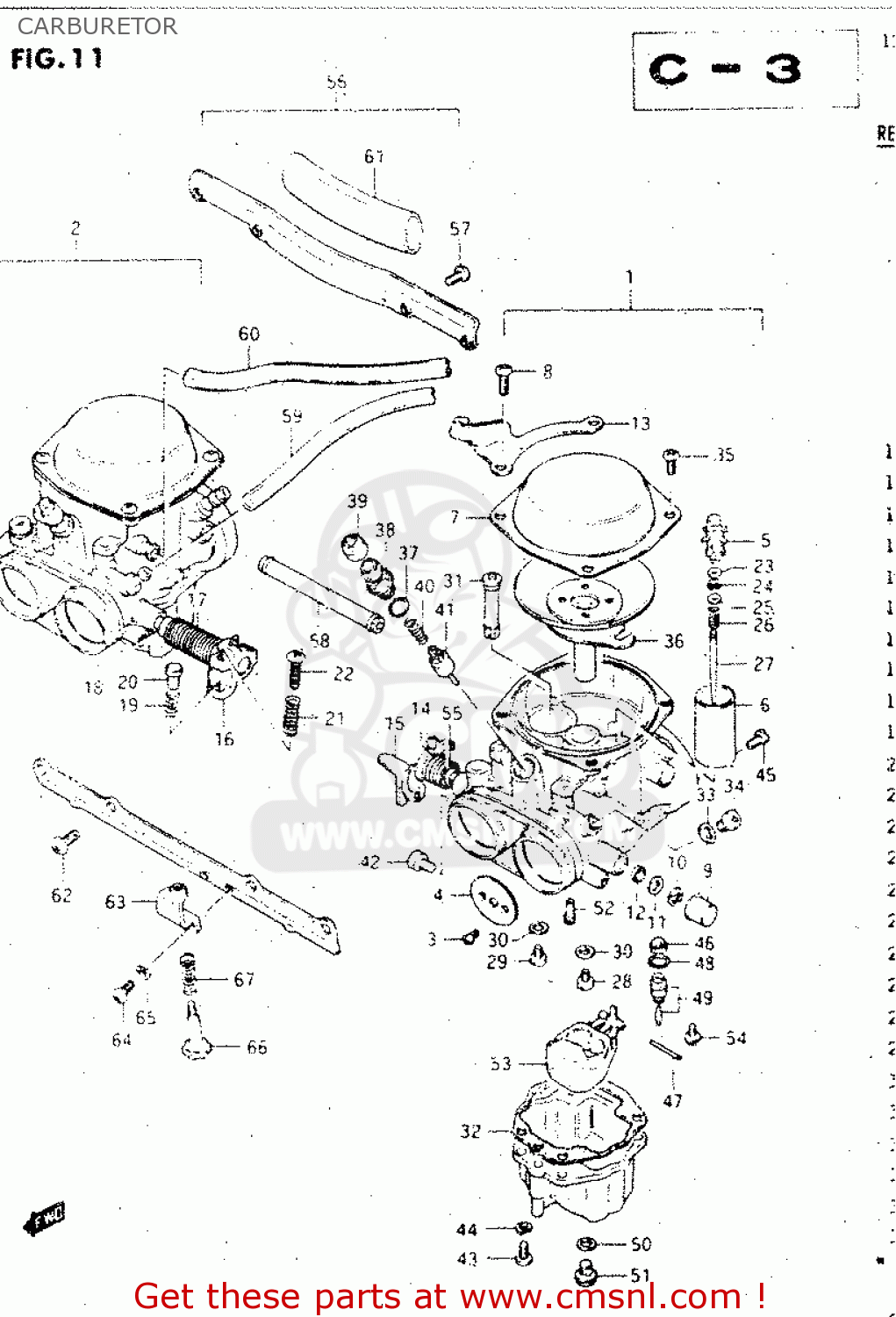

Carburetor diagram GSX500E 1984 (E) GENERAL EXPORT (E01)
CARBURETOR GSX500E 1984 (E) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
1320143480
ref: 1
CARBURETOR, LH
€ 0.00
2
1320243480
ref: 2
CARBURETOR, RH
€ 0.00
3
1360444080
ref: 3
SCREW
€ 3.50
4
1355143440
ref: 4
VALVE,THROTTLE
€ 0.00
5
1351143410
ref: 5
HOLDER,GUIDE
€ 6.50
6
1355143500
ref: 6
VALVE,THROTTLE
€ 0.00
7
1350243430
ref: 7
COVER,DIAPHRAGM
€ 0.00
8
0211205125
ref: 8
LH
SCREW
€ 1.50
9
1357845530
ref: 9
CAP,THROTTLE SHAFT
€ 5.50
10
1361744080
ref: 10
E RING
€ 3.50
11
1355747070
ref: 11
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
12
1365151010
ref: 12
SEAL
€ 4.00
13
1362143420
ref: 13
LH
BRACKET,THROTTLE CABLE
€ 5.50
14
1357343410
ref: 14
LH
SPRING,THROTTLE SHAFT
€ 6.50
15
1355043410
ref: 15
LH
SHAFT ASSEMBLY
€ 0.00
16
1355043400
ref: 16
RH
SHAFT ASSEMBLY
€ 0.00
17
1357343400
ref: 17
RH
SPRING
€ 9.50
18
1357443410
ref: 18
RH
RING
€ 0.00
19
1326844010
ref: 19
RH
SPRING,THROTTLE SCREW
€ 3.00
20
1357547070
ref: 20
RH
PIN,THROTTLE LEVER
€ 2.50
21
1327193311
ref: 21
RH
SPRING
€ 4.50
22
1360515530
ref: 22
RH
SCREW
€ 0.00
23
1338747010
ref: 23
RING
€ 7.50
24
1341547070
ref: 24
CAP,LEVER
€ 4.50
25
1338244030
ref: 25
WASHER
€ 3.50
26
1338844030
ref: 26
SPRING
€ 6.00
27
1338343530
ref: 27
NEEDLE, JET (5C13-3)
€ 14.50
28
0949190007
ref: 28
LH,RH
JET,MAIN(90)
€ 10.50
29
0949197003
ref: 29
ML,MR
JET,MAIN(97.5)
€ 8.50
30
1333244080
ref: 30
WASHER,NEEDLE NOZZLE
€ 2.50
31
0949400464
ref: 31
JET, NEEDLE (P-4)
€ 26.50
32
1325143410
ref: 32
GASKET,FLOAT CHAMBER (MCA)
€ 10.50
33
1353143410
ref: 33
WASHER
€ 3.50
34
1360543410
ref: 34
SCREW
€ 0.00
35
0211205105
ref: 35
LH:2,RH:4
SCREW
€ 2.00
36
1350043410
ref: 36
DIAPHRAGM,CARBURETOR
€ 181.50
37
1327847090
ref: 37
O RING
€ 2.00
38
1341843410
ref: 38
HOLDER,GUIDE
€ 6.50
39
1368104010
ref: 39
CAP
€ 3.00
40
1341743410
ref: 40
SPRING
€ 3.50
41
1341143410
ref: 41
VALVE,STARTER
€ 23.50
42
1360573000
ref: 42
LH
SCREW
€ 10.50
43
0211204165
ref: 43
SCREW
€ 1.00
44
0832121064
ref: 44
WASHER,LOCK
€ 2.00
45
0949226001
ref: 45
JET, PILOT AIR (130)
€ 16.50
46
1337665010
ref: 46
FILTER
€ 6.50
47
1325420010
ref: 47
PIN,FLOAT
€ 3.00
48
1337444080
ref: 48
O-RING,NEEDLE VALVE
€ 6.00
49
1337043410
ref: 49
VALVE ASSEMBLY,NEEDLE
€ 70.50
50
1324644080
ref: 50
GASKET (NAS)
€ 3.50
51
1324743410
ref: 51
PLUG,DRAIN
€ 9.50
52
0949235010
ref: 52
JET,PILOT(37.5)
€ 10.50
53
1325043410
ref: 53
FLOAT
€ 28.00
54
1360243410
ref: 54
SCREW
€ 2.50
55
1357443400
ref: 55
LH
RING,THROTTLE SHAFT
€ 0.00
56
1321043420
ref: 56
FLANGE ASSEMBLY,CARBURETOR
€ 70.50
57
0211205125
ref: 57
SCREW
€ 1.50
58
1368543410
ref: 58
PIPE,CARBURETOR
€ 25.50
59
1368345050
ref: 59
HOSE 4.5X8X390
€ 14.00
60
1368343410
ref: 60
HOSE
€ 17.50
61
1368443440
ref: 61
HOSE(16X19X100)
€ 6.50
62
0211206125
ref: 62
SCREW
€ 1.50
63
1362143430
ref: 63
BRACKET,SLOW ADJUST
€ 6.00
64
0211205088
ref: 64
SCREW
€ 2.00
65
0832121058
ref: 65
LOCK WASHER
€ 2.00
66
1326743420
ref: 66
ADJUSTER
€ 15.50
67
1326843410
ref: 67
SPRING
€ 6.50
