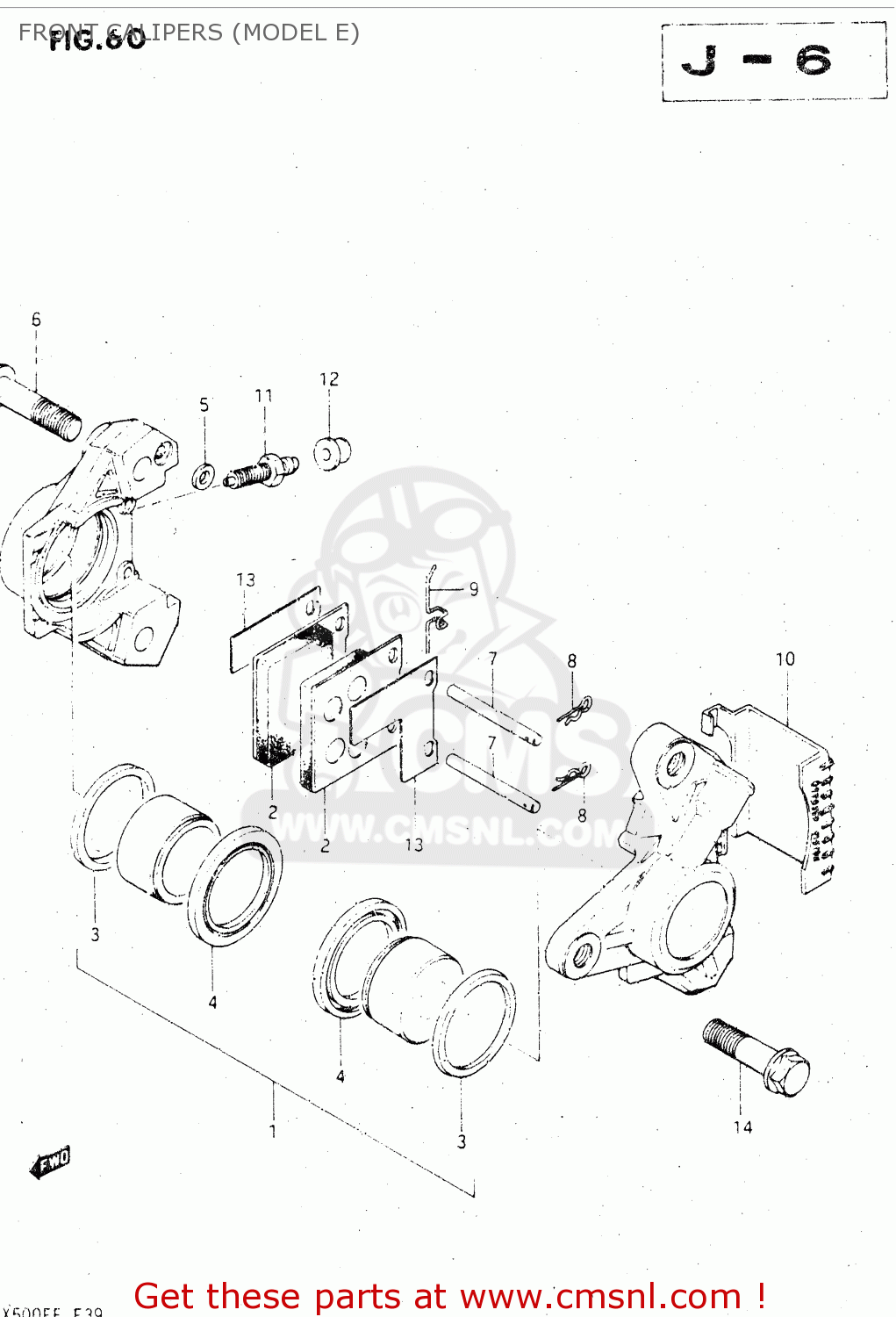

FRONT CALIPERS (MODEL E)

GSX500E 1984 (E) GENERAL EXPORT (E01)

Front calipers (model e) diagram GSX500E 1984 (E) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

5910033410
ref: 0

CALIPER ASSEMBLY,RIGHT

€ 372.00

5930033410
ref: 0

CALIPER ASSEMBLY,LEFT

€ 380.00

6910016810
ref: 1

PISTON SET

€ 192.50

5913016700
ref: 2

PAD (MCA)

€ 43.00

5910718410
ref: 3

SEAL,PISTON

€ 17.00

5910816700
ref: 4

BOOT

€ 16.50

6910734200
ref: 5

SEAL,JOINT

€ 12.00

5914516700
ref: 6

BOLT,HOUSING

€ 8.00

6914145000
ref: 7

PIN,PAD

€ 6.50

6914245000
ref: 8

CLIP,PAD PIN

€ 4.50

5914316700
ref: 9

SPRING

€ 7.50

5915116700
ref: 10

COVER,CALIPER

€ 13.50

5912118410
ref: 11

BLEEDER

€ 8.00

5912218410
ref: 12

CAP,BREATHER

€ 6.00

5937133420
ref: 13

SHIM

€ 14.00

0910310038
ref: 14

BOLT 10X37

€ 3.00
