FRONT MASTER CYLINDER

GSX500E 1984 (E) GENERAL EXPORT (E01)

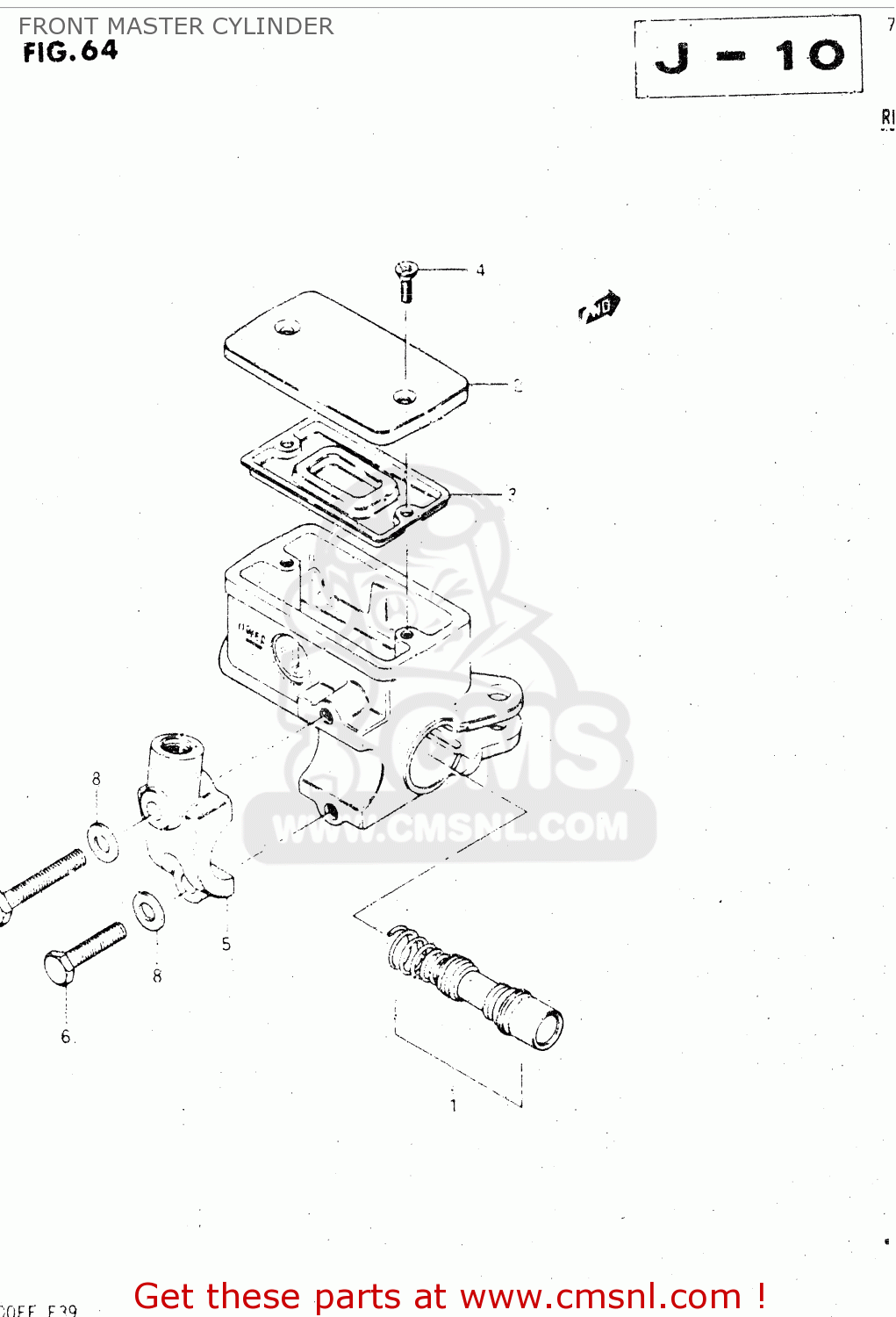

Front master cylinder diagram GSX500E 1984 (E) GENERAL EXPORT (E01)

FRONT MASTER CYLINDER GSX500E 1984 (E) GENERAL EXPORT (E01)

FRONT MASTER CYLINDER GSX500E 1984 (E) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

0

5960049420
ref: 0

MASTER CYLINDER ASSY, FRONT

€ 274.00

1

5960045831
ref: 1

PISTON & CUP SET

€ 41.50

2

6966949300
ref: 2

CAP

€ 30.00

3

6966749300
ref: 3

6966749300

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967144300
ref: 5

HOLDER

€ 14.50

6

0110706255
ref: 6

BOLT

€ 2.50

7

0110706405
ref: 7

BOLT

€ 2.00

8

0832221064
ref: 8

WASHER

€ 2.00
