REAR COMBINATION LAMP

GSX500E 1984 (E) GENERAL EXPORT (E01)

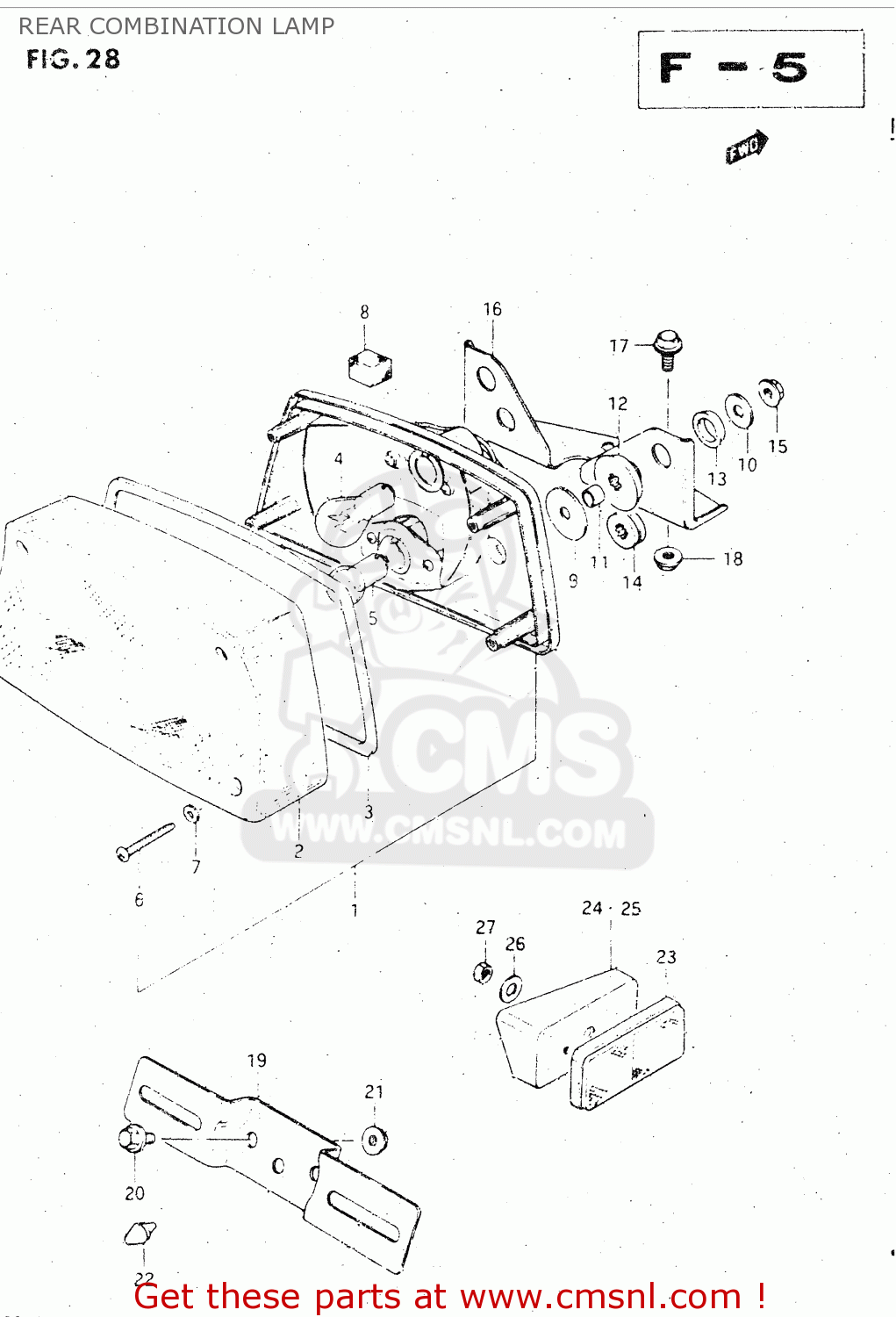

Rear combination lamp diagram GSX500E 1984 (E) GENERAL EXPORT (E01)

REAR COMBINATION LAMP GSX500E 1984 (E) GENERAL EXPORT (E01)
REAR COMBINATION LAMP GSX500E 1984 (E) GENERAL EXPORT (E01)
REAR COMBINATION LAMP GSX500E 1984 (E) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
3571043481
ref: 1-1
MODEL E E39
LAMP ASSY, REAR COMBINATION
€ 129.50
1-2
3571043482
ref: 1-2
MODEL F E39
LAMP ASSY, REAR COMBINATION
€ 129.50
1-3
3571043450
ref: 1-3
MODEL E E15
LAMP ASSY, REAR COMBINATION
€ 0.00
1-4
3571043451
ref: 1-4
MODEL F E15
LAMP ASSY, REAR COMBINATION
€ 0.00
2
3571243411
ref: 2
LENS
€ 49.50
3
3571343410
ref: 3
GASKET
3571343410
€ 4.00
4
0947112083
ref: 4
BULB(12V21/5W)
0947112083
€ 6.00
5
0947112058
ref: 5
BULB
0947112058
€ 4.00
6
0321104256
ref: 6
SCREW ,4X25
0321104256
€ 2.00
7
3562743010
ref: 7
GASKET (NAS)
3562743010
€ 2.00
8
3573306400
ref: 8
CUSHION,REAR COMBINATION LAMP
€ 2.50
9-1
0916006071
ref: 9-1
MODEL E
WASHER(6.5X30X1.2)
0916006071
€ 2.00
9-2
0916006020
ref: 9-2
MODEL F
WASHER
0916006020
€ 2.00
10-1
0916006012
ref: 10-1
MODEL E
WASHER(6,5X22X1.6)
€ 2.00
10-2
0916006012
ref: 10-2
MODEL F
WASHER(6,5X22X1.6)
€ 2.00
11-1
0918006006
ref: 11-1
MODEL E
SPACER (6.8X10X11.5)
0918006006
€ 3.00
11-2
3576626470
ref: 11-2
MODEL F
SPACER
3576626470
€ 2.00
12
0932009012
ref: 12
MODEL E
CUSHION
0932009012
€ 6.00
13
0932014010
ref: 13
MODEL E
CUSHION
0932014010
€ 2.50
14
3576535300
ref: 14
MODEL F
CUSHION,RR COMBINATION
3576535300
€ 3.00
15-1
0831626066
ref: 15-1
MODEL E
NUT
€ 2.00
15-2
0831626066
ref: 15-2
MODEL F
NUT
€ 2.00
16-1
3572643400
ref: 16-1
MODEL E
BRACKET,REAR COMBINATION LAMP
€ 8.00
16-2
3572643401
ref: 16-2
MODEL F
BRACKET,REAR COMBINATION LAMP
€ 8.00
17
0151706166
ref: 17
BOLT
€ 2.50
18
0831626066
ref: 18
NUT
€ 2.00
19
3592744110
ref: 19
PLATE,RR LICENSE
3592744110
€ 22.50
20
0151706125
ref: 20
BOLT 6X12
0151706125
€ 2.50
21
0831626066
ref: 21
NUT
€ 2.00
22
0932106023
ref: 22
CUSHION
0932106023
€ 2.00
23
3595049330
ref: 23
E39
REFLECTOR,REFLEX
3595049330
€ 15.00
24
3597743400
ref: 24
E39
SPACER, RH
3597743400
€ 4.00
25
3597843400
ref: 25
E39
SPACER, LH
€ 0.00
26
0916005013
ref: 26
E39
WASHER(5.2X16X1)
0916005013
€ 1.50
27
0831011056
ref: 27
E39
NUT
€ 2.50
