CRANKCASE COVER
GSX500E 1984 (E) GENERAL EXPORT (E01)

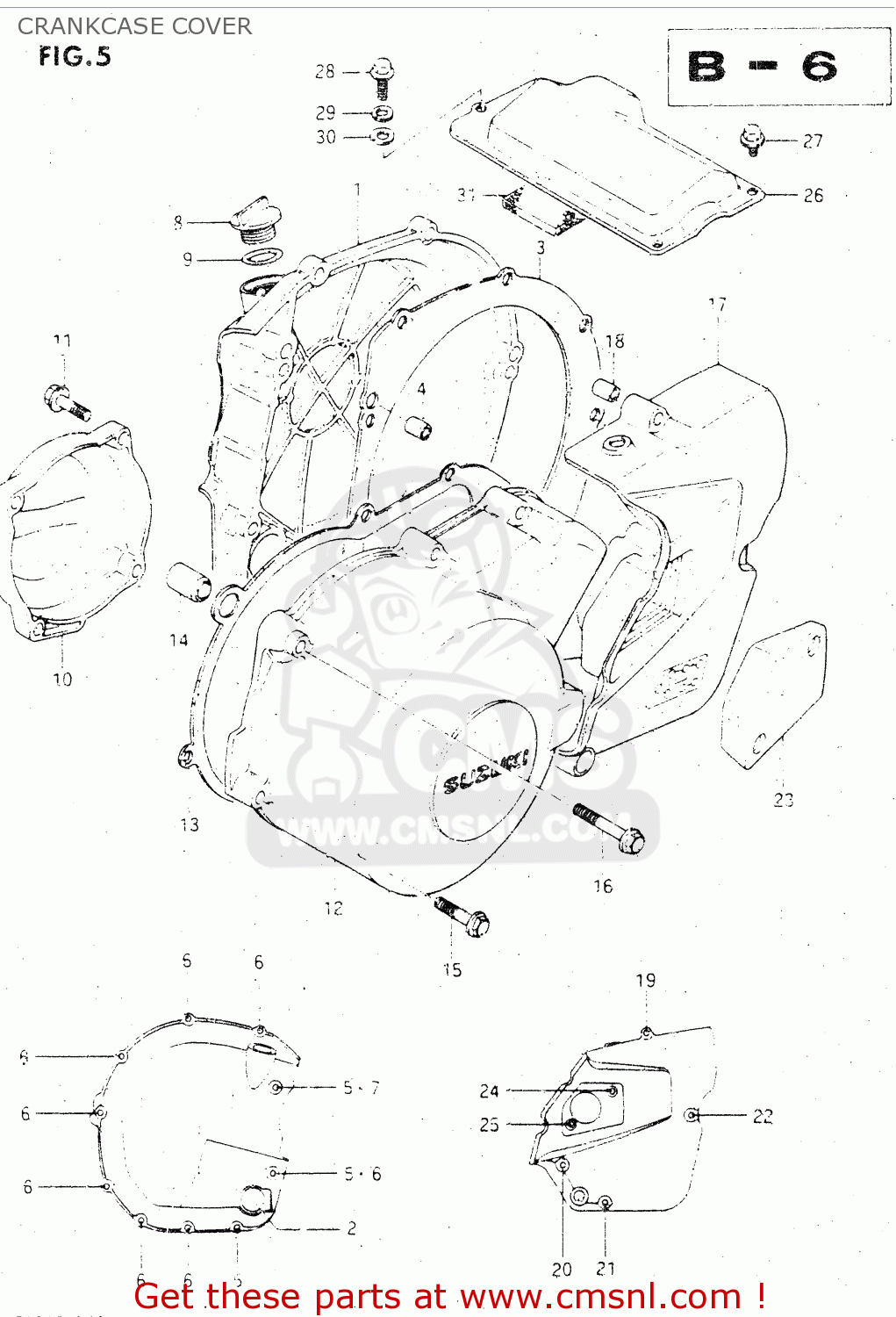

Crankcase cover diagram GSX500E 1984 (E) GENERAL EXPORT (E01)
CRANKCASE COVER GSX500E 1984 (E) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
1134043401
ref: 1
COVER,CLUTCH
€ 176.00
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
€ 13.50
3
1148243401
ref: 3
GASKET,CLUTCH COVER (MCA)
€ 16.50
4
0421109129
ref: 4
PIN
€ 2.00
5
0916806015
ref: 5
WASHER
€ 2.00
6
0154706254
ref: 6
BOLT 6X25
€ 2.50
7
0154706354
ref: 7
BOLT 6X35
€ 3.00
8
0925920008
ref: 8
PLUG
€ 6.50
9
0928017003
ref: 9
O RING(D:3.1,ID:16.8)
€ 2.00
10
1138143400
ref: 10
COVER,CONTACT BREAKER
€ 56.50
11
0154706254
ref: 11
BOLT 6X25
€ 2.50
12
1135143400
ref: 12
COVER,MAGNETO
€ 173.00
13
1148343400
ref: 13
GASKET,MAGNETO COVER (MCA)
€ 15.50
14
0920611005
ref: 14
PIN (11X20)(SUS)
€ 6.50
15
0154706304
ref: 15
BOLT 6X30
€ 2.50
16
0154706454
ref: 16
BOLT
€ 3.00
17
1136043400
ref: 17
COVER,ENGINE SPROCKET
€ 79.00
18
0421109129
ref: 18
PIN
€ 2.00
19
0154706404
ref: 19
BOLT 6X40
€ 3.00
20
0154706555
ref: 20
BOLT (6X55)
€ 3.00
21
0154706505
ref: 21
BOLT 6X50
€ 3.50
22
0154706805
ref: 22
BOLT 6X80
€ 3.50
23
1138743400
ref: 23
CAP,CLUTCH RELEASE ADJUST
€ 26.00
24
0213205125
ref: 24
SCREW
€ 2.00
25
0213205205
ref: 25
SCREW
€ 2.00
26
1138243401
ref: 26
COVER,STARTER MOTOR
€ 20.00
27
0154705084
ref: 27
BOLT
€ 2.50
28
0154705125
ref: 28
BOLT
€ 2.00
29
0832121055
ref: 29
WASHER,LOCK
€ 3.00
30
0916005031
ref: 30
WASHER
€ 1.50
31
1136234200
ref: 31
DAMPER,STARTER MOTOR CLUTCH
€ 5.50
