FRAME

GSX500E 1984 (E) GENERAL EXPORT (E01)

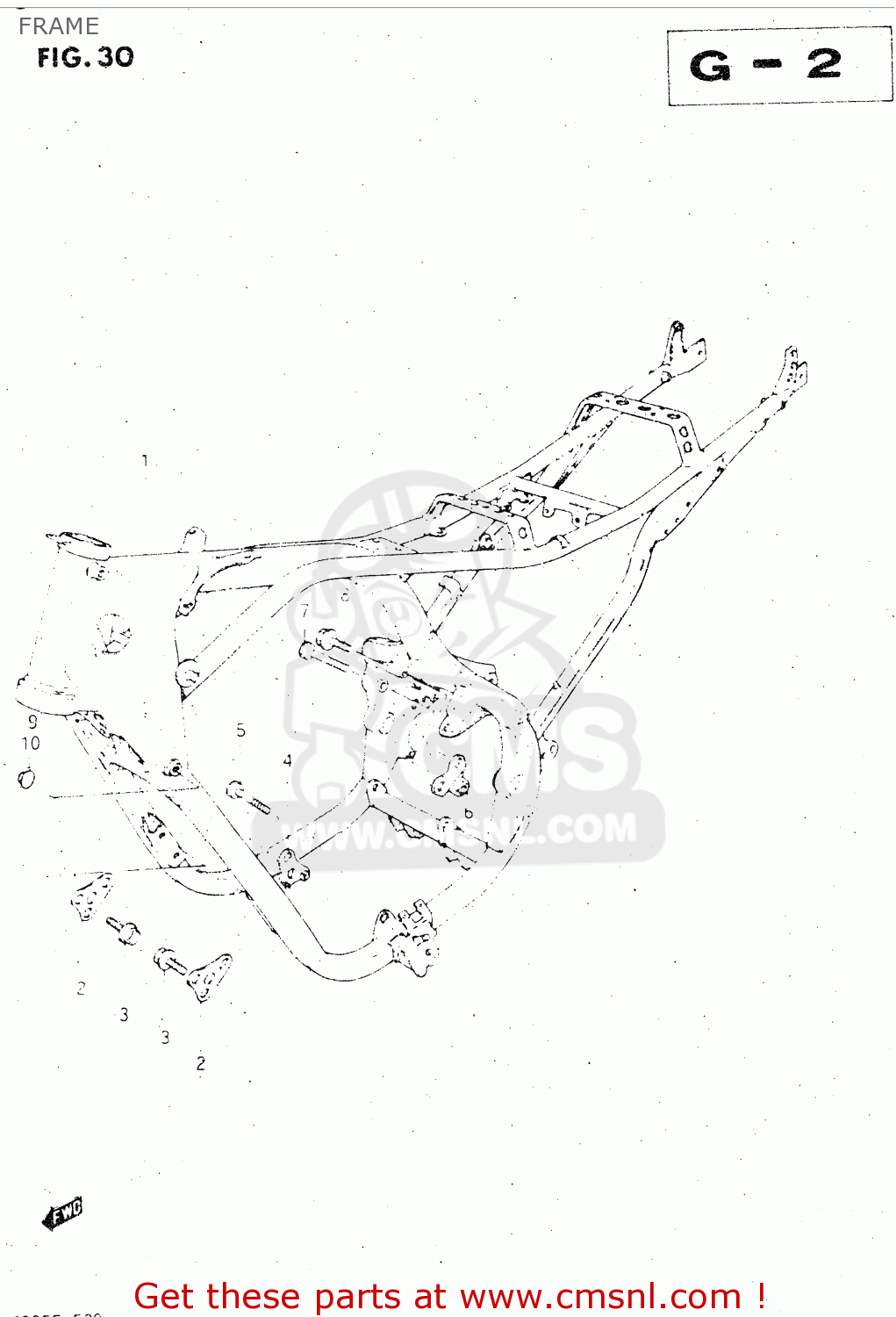

Frame diagram GSX500E 1984 (E) GENERAL EXPORT (E01)

FRAME GSX500E 1984 (E) GENERAL EXPORT (E01)
FRAME GSX500E 1984 (E) GENERAL EXPORT (E01)
FRAME GSX500E 1984 (E) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
411004345013L
ref: 1-1
FRAME
€ 1,346.50
1-2
411004348013L
ref: 1-2
E15
FRAME (SILVER)
€ 0.00
2
4199143401291
ref: 2
PLATE,ENGINE MOUNTING NO
€ 9.00
3
0151708168
ref: 3
BOLT
€ 3.00
4
4199243400291
ref: 4
PLATE,ENGINE MOUNTING NO
€ 11.50
5
0711008408
ref: 5
BOLT
€ 3.50
6
4199343400291
ref: 6
PLATE,ENGINE MOUNTING NO.4
€ 0.00
7
0711008408
ref: 7
BOLT
€ 3.50
8
0151708168
ref: 8
BOLT
€ 3.00
9
0925005006
ref: 9
PLUG
0925005006
€ 2.50
10
0925006007
ref: 10
PLUG
0925006007
€ 2.00
