Buy Suzuki GSX Parts Online


LEFT HANDLE SWITCH (GSX500ESE/ESF)

GSX500E 1984 (E) GENERAL EXPORT (E01)

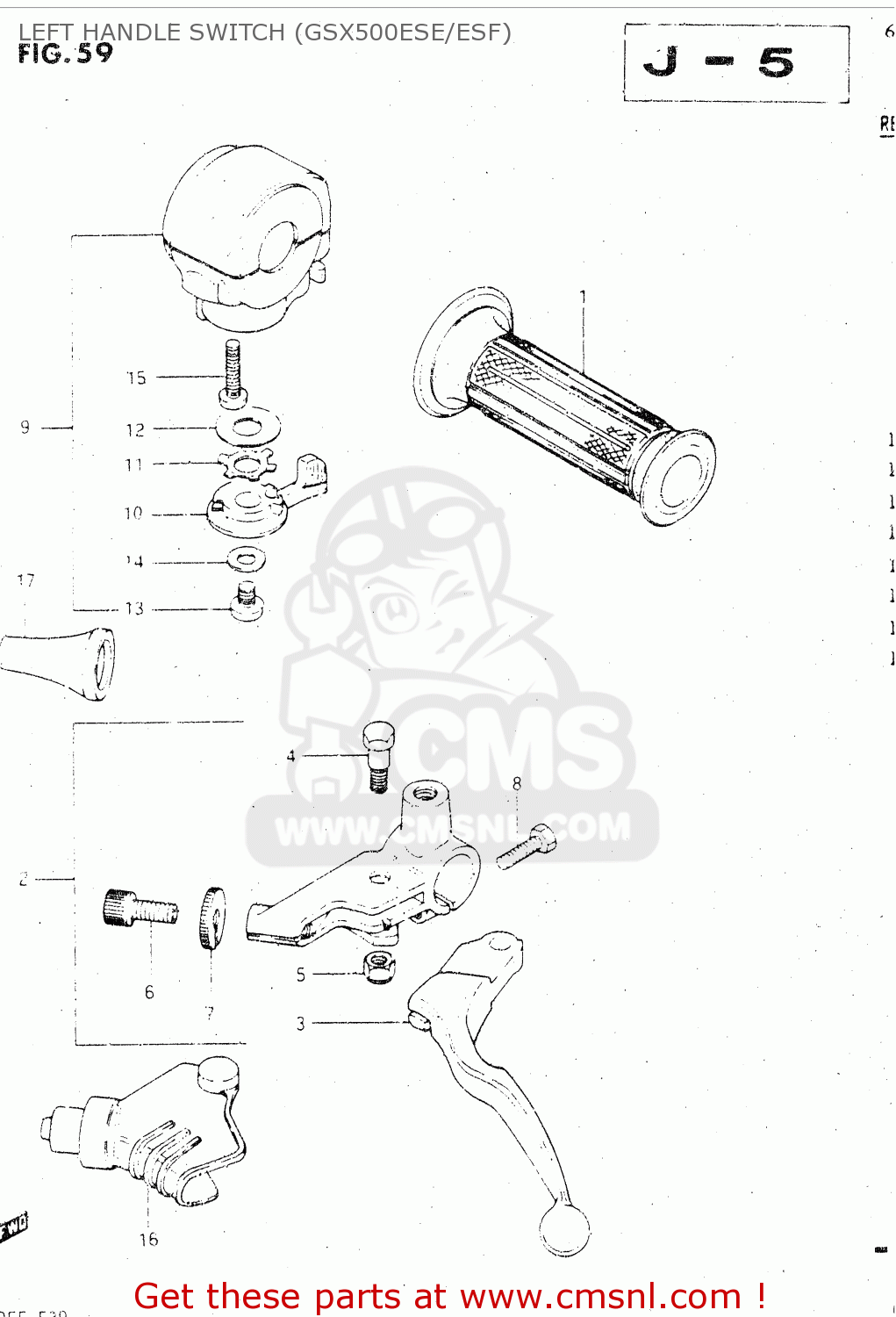

Left handle switch (gsx500ese/esf) diagram GSX500E 1984 (E) GENERAL EXPORT (E01)

LEFT HANDLE SWITCH (GSX500ESE/ESF) GSX500E 1984 (E) GENERAL EXPORT (E01)
LEFT HANDLE SWITCH (GSX500ESE/ESF) GSX500E 1984 (E) GENERAL EXPORT (E01)
LEFT HANDLE SWITCH (GSX500ESE/ESF) GSX500E 1984 (E) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
5721149500
ref: 1
GRIP,L
5721149500
€ 9.00
2
5750033420
ref: 2
LEVER ASSY,CLU
5750033420
€ 50.00
3
5762033410
ref: 3
LEVER,CLUTCH
5762033410
€ 28.50
4
5743133450
ref: 4
BOLT,LEVER
5743133450
€ 8.50
5
0831921065
ref: 5
NUT
0831921065
€ 2.50
6
5744111010
ref: 6
ADJUSTER,CABLE
5744111010
€ 8.00
7
5744211010
ref: 7
NUT,CABLE ADJUSTER
5744211010
€ 4.00
8
0110706205
ref: 8
BOLT
0110706205
€ 2.00
9
3740033410
ref: 9
SWITCH ASSY,HA
€ 161.00
10
3757145110
ref: 10
LEVER,STARTER
3757145110
€ 19.00
11
3757345110
ref: 11
WASHER
3757345110
€ 2.00
12
3757343440
ref: 12
WASHER
€ 4.00
13
0211206085
ref: 13
SCREW
€ 1.50
14
0832221064
ref: 14
WASHER
0832221064
€ 2.00
15
0211205255
ref: 15
SCREW
€ 2.00
16
5766133400
ref: 16
COVER,CLUTCH LEVER
5766133400
€ 7.50
17
5827331000
ref: 17
BOOT,CLUTCH CABLE
5827331000
€ 2.50
