REAR SHOCK ABSORBER (MODEL F)

GSX500E 1984 (E) GENERAL EXPORT (E01)

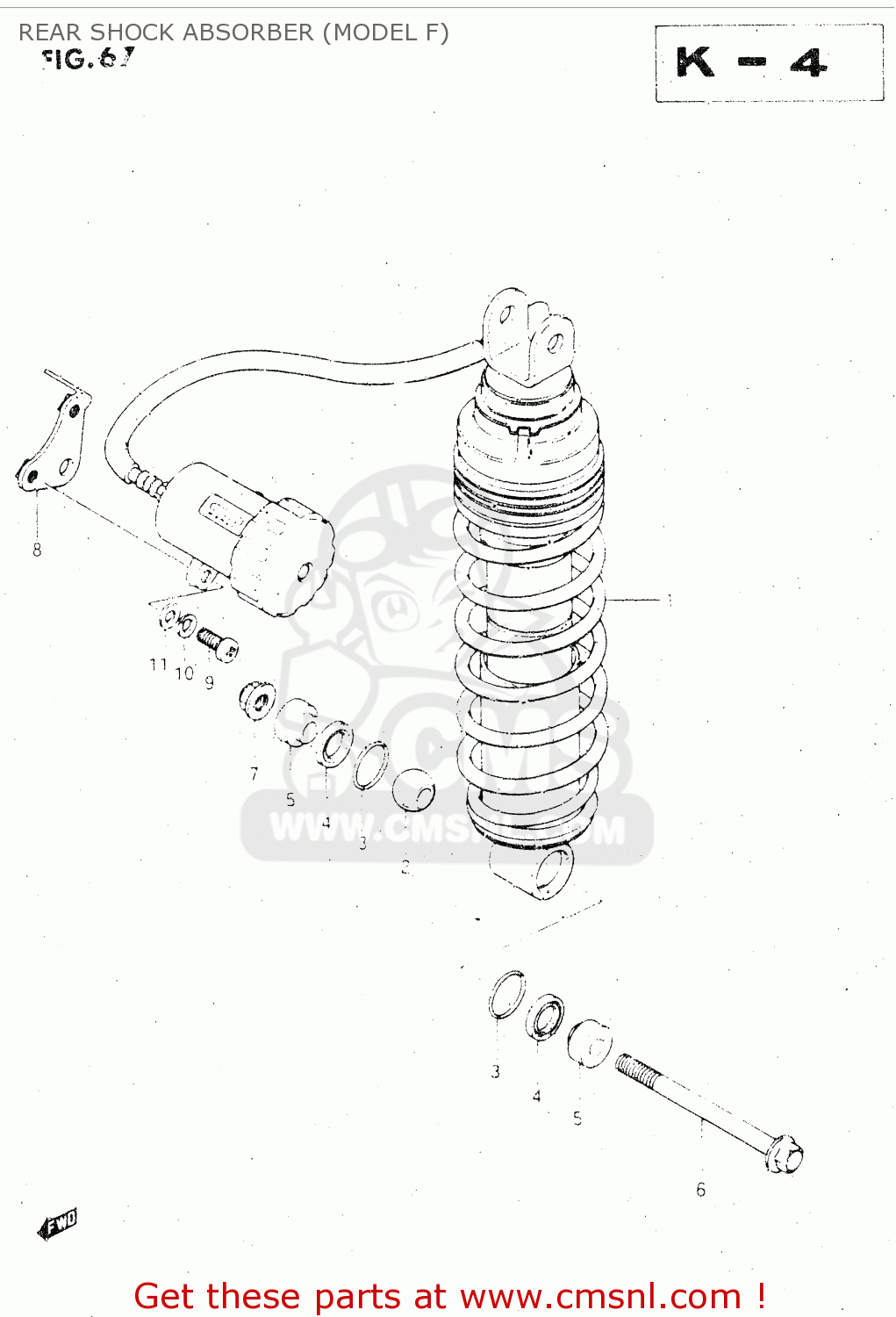

Rear shock absorber (model f) diagram GSX500E 1984 (E) GENERAL EXPORT (E01)

REAR SHOCK ABSORBER (MODEL F) GSX500E 1984 (E) GENERAL EXPORT (E01)
REAR SHOCK ABSORBER (MODEL F) GSX500E 1984 (E) GENERAL EXPORT (E01)
REAR SHOCK ABSORBER (MODEL F) GSX500E 1984 (E) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
6210043470
ref: 1
SHOCK ABSORBER, REAR
€ 807.00
2
6217543400
ref: 2
BEARING,REAR SHOCK ABSORBER
€ 66.00
3
6227714200
ref: 3
RING
6227714200
€ 1.50
4
6222643410
ref: 4
SEAL,DUST
6222643410
€ 7.50
5
6218743400
ref: 5
COLLAR
6218743400
€ 5.00
6
0910310063
ref: 6
BOLT(10X115)
0910310063
€ 5.00
7
0831931108
ref: 7
NUT
0831931108
€ 3.00
8
6241143402
ref: 8
BRACKET,RESERVOIR TANK
€ 0.00
9
0211206255
ref: 9
SCREW
€ 1.50
10
0832121064
ref: 10
WASHER,LOCK
0832121064
€ 2.00
11
0832221064
ref: 11
WASHER
0832221064
€ 2.00
