CYLINDER HEAD COVER

GSX500E 1984 (E) GENERAL EXPORT (E01)

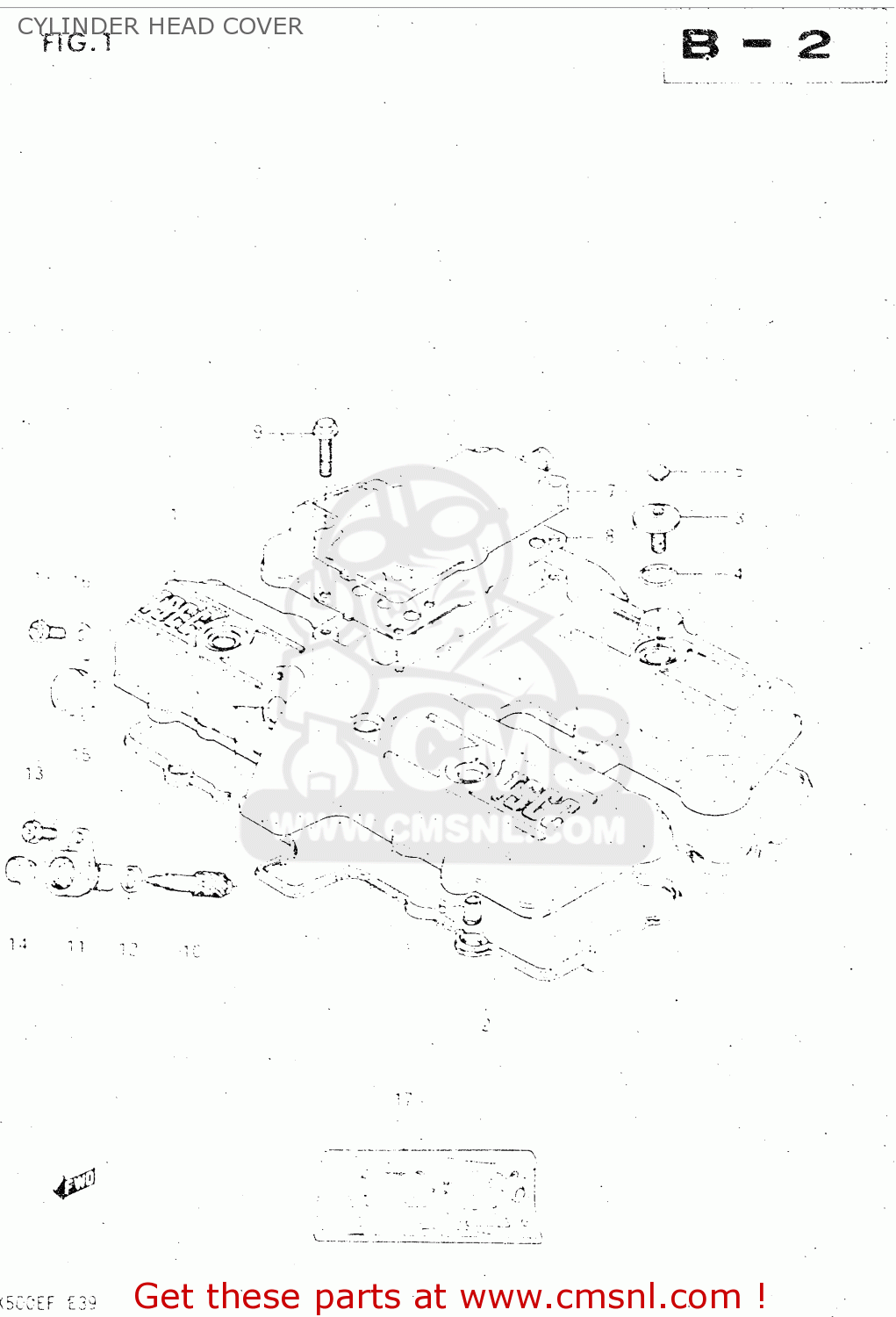

Cylinder head cover diagram GSX500E 1984 (E) GENERAL EXPORT (E01)

CYLINDER HEAD COVER GSX500E 1984 (E) GENERAL EXPORT (E01)

CYLINDER HEAD COVER GSX500E 1984 (E) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1117143403
ref: 1

COVER,CYLINDER HEAD

€ 135.00

2

1117343402
ref: 2

GASKET,CYL HEAD COVER (NAS)

€ 32.50

3

0910607001
ref: 3

BOLT(7X5.5)

€ 6.00

4

0928015006
ref: 4

O RING(D:1.9,ID:14.5)

€ 3.00

5

0925006008
ref: 5

CAP(OD:10)

€ 3.00

6

0422108129
ref: 6

PIN

€ 2.00

7

1117643402
ref: 7

COVER,BREATHER

€ 17.00

8

1117743403
ref: 8

GASKET (MCA)

€ 11.50

9

0151706254
ref: 9

BOLT

€ 2.50

10-1

2643149200
ref: 10-1
GSX500EE

GEAR,TACHOMETER DRIVEN

€ 40.00

10-2

2643149201
ref: 10-2
GSX500FF

GEAR,TACHOMETER DRIVEN

€ 40.00

11

2644149000
ref: 11
GSX500EE/EF

SLEEVE,TACHOMETER DRIVE GEAR

€ 18.00

12

2645145000A
ref: 12
GSX500EE/EF

SEAL,TACHOMETER DRIVEN

€ 4.50

13

0912805101
ref: 13

SCREW(5X12)

€ 1.50

14

0928905002
ref: 14
GSX500EE/EF

SEAL,OIL(5X12X8)

€ 11.00

15

2644245000
ref: 15
GSX500ESE/ESF

PLUG,TACH GEAR SLEEVE HOLE

€ 15.50

16

2644933000
ref: 16
GSX500ESE/ESF

PLATE,TACH DRIVE GEAR SLEEVE

€ 3.50

17-1

1140043833
ref: 17-1
OPT MODEL E

GASKET SET (MCA)

€ 308.50

17-2

1140043834
ref: 17-2
OPT MODEL F

GASKET SET (MCA)

€ 308.50
