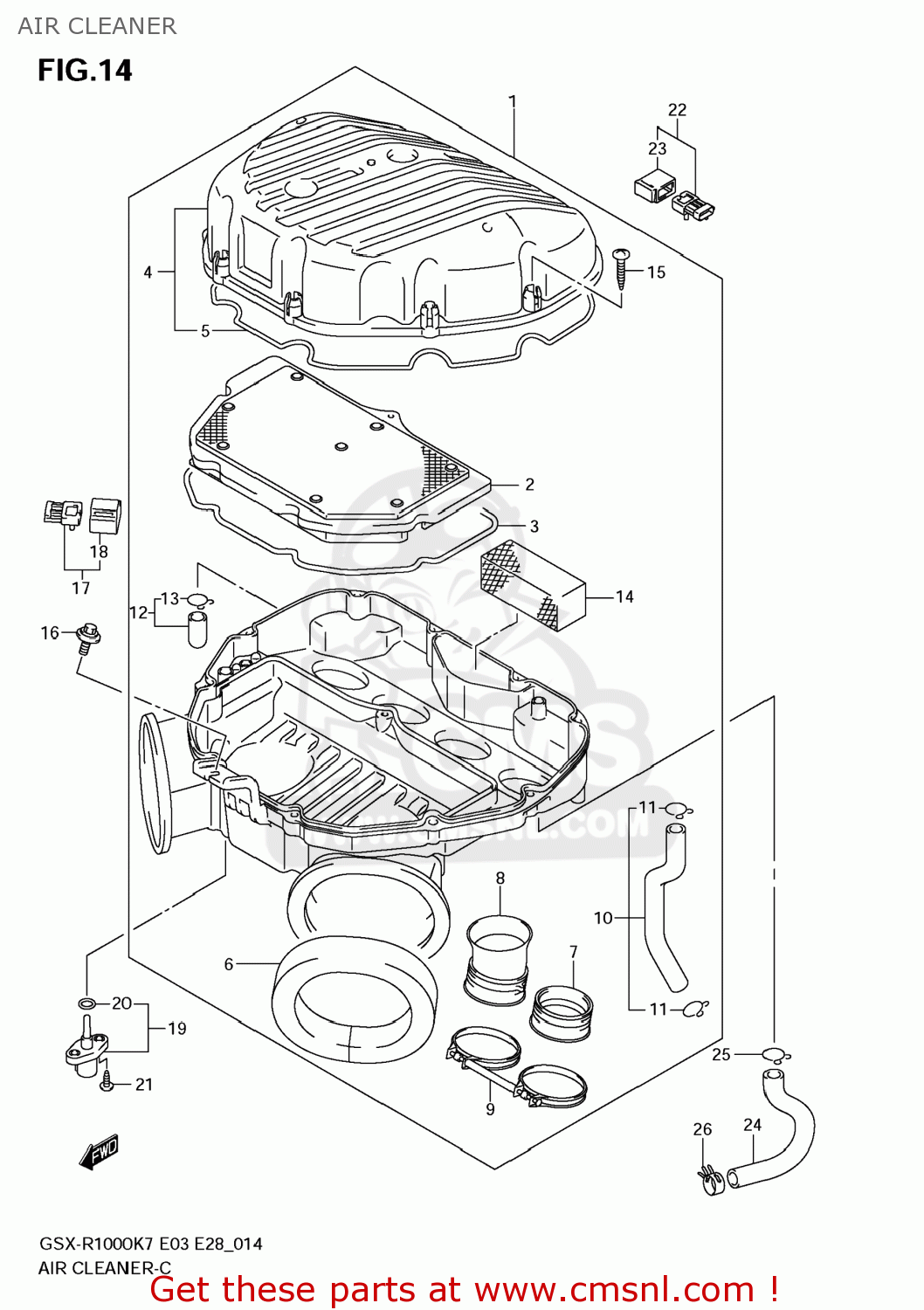

AIR CLEANER

ref

part #

description

quantity

1

1370021H00
ref: 1
13700-21H01

CLEANER ASSY,A

€ 258.50

2

1378041G00
ref: 2

FILTER ASSY,AIR CLEANER

€ 30.50

3

1375641G00
ref: 3

GASKET,CASE (NAS)

€ 5.50

4

1374021H00
ref: 4

CAP,AIR CLEANER

€ 38.00

5

1374641G00
ref: 5

GASKET,CAP (NAS)

€ 7.50

6

1373621H00
ref: 6
13736-02FA0

CUSHION,DUCT

€ 12.50

7

1388141G00
ref: 7

TUBE,OUTLET A

€ 23.00

8

1388241G00
ref: 8

TUBE,OUTLET B

€ 20.50

9

1317015H00
ref: 9
13170-15H10

CLAMP COMP,INT

€ 23.00

10

1385021H00
ref: 10

TUBE,BREATHER

€ 20.00

11

0940114101
ref: 11

CLIP

€ 2.00

12

1385619B03
ref: 12

PLUG ASSY,DRAIN

€ 6.00

13

0940114101
ref: 13

CLIP

€ 2.00

14

1378821H00
ref: 14

FILTER,BREATHER

€ 9.50

15

035410525B
ref: 15

SCREW

€ 2.50

16

0911606130
ref: 16

BOLT(6X16)

€ 2.00

17

1563029G20
ref: 17

SENSOR,BOOST

€ 180.50

18

1562529G10
ref: 18

COVER

€ 7.00

19

1365014G10
ref: 19

SENSOR,AIR TEMP

€ 34.50

20

1365514G10
ref: 20

O RING

€ 6.00

21

035110516A
ref: 21

SCREW

€ 2.50

22

1563029G10
ref: 22

SENSOR,AIR PRESSURE

€ 180.50

23

1562529G00
ref: 23

COVER

€ 7.50

24

1369721H00
ref: 24

HOSE,ISC VALVE

€ 12.00

25

0940115101
ref: 25

CLIP

€ 2.00

26

0940116403
ref: 26

CLIP

€ 2.00

all assemblies
