OIL COOLER

GSXR1000 2008 (K8) USA (E03)

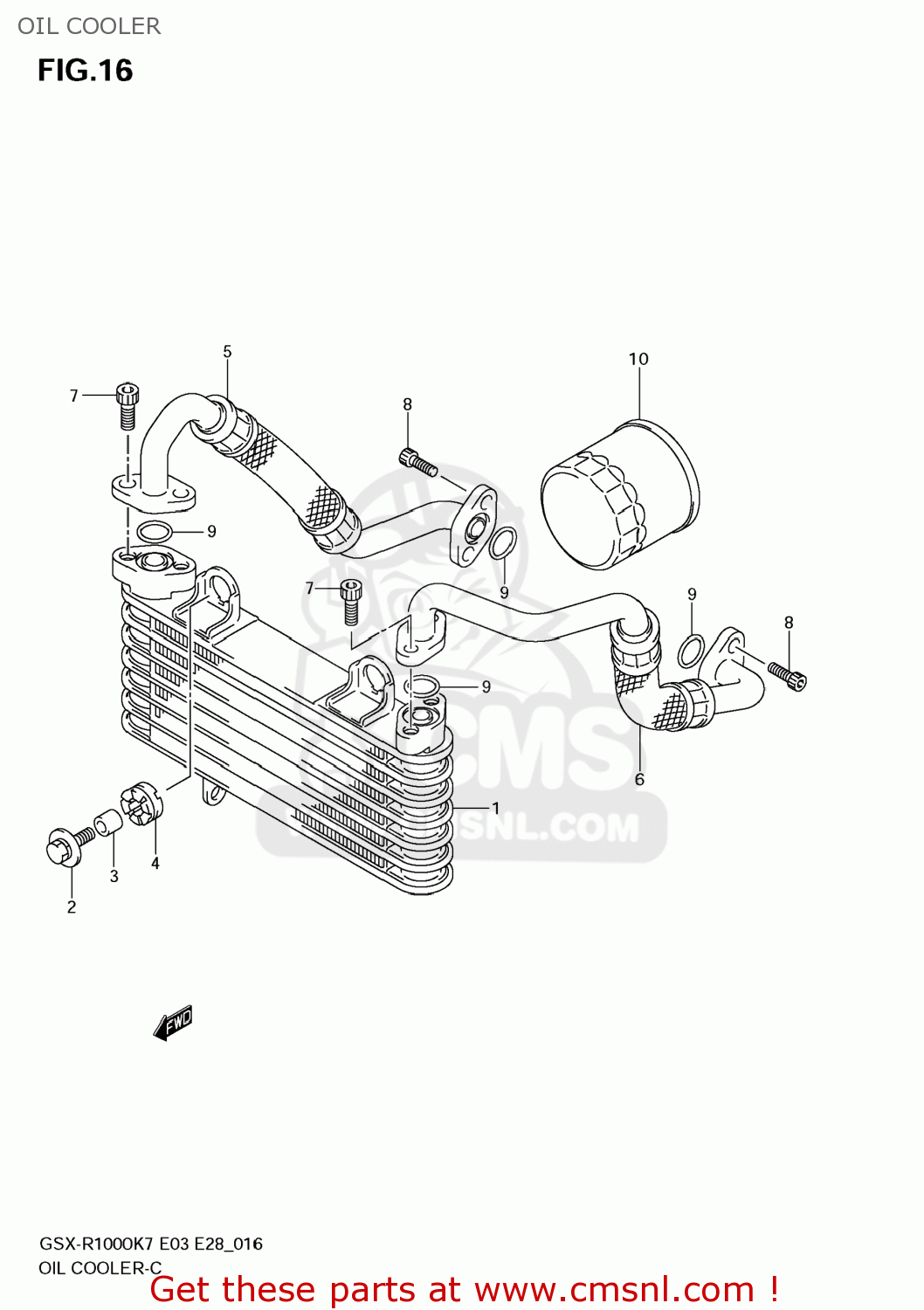

Oil cooler diagram GSXR1000 2008 (K8) USA (E03)

OIL COOLER GSXR1000 2008 (K8) USA (E03)

OIL COOLER GSXR1000 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1660021H00
ref: 1

COOLER ASSY,OIL

€ 1,030.50

2

0911806097
ref: 2

BOLT(6X25)

€ 2.50

3

0918006310
ref: 3

SPACER(6.5X10X10)

€ 2.00

4

0932010055
ref: 4

CUSHION

€ 3.50

5

1646021H00
ref: 5

HOSE,OIL COOLER,R

€ 171.00

6

1647021H00
ref: 6

HOSE,OIL COOLER,L

€ 171.00

7

0910606096
ref: 7

BOLT(6X20)

€ 4.00

8

0910606073
ref: 8

BOLT(6X16)

€ 2.50

9

0928015015
ref: 9

O RING(D:2.4,ID:16)

€ 5.00

10

1651003G00X07
ref: 10
16510-07J00

FILTER ASSY,EN

€ 12.50
