BATTERY

GSXR1000 2008 (K8) USA (E03)

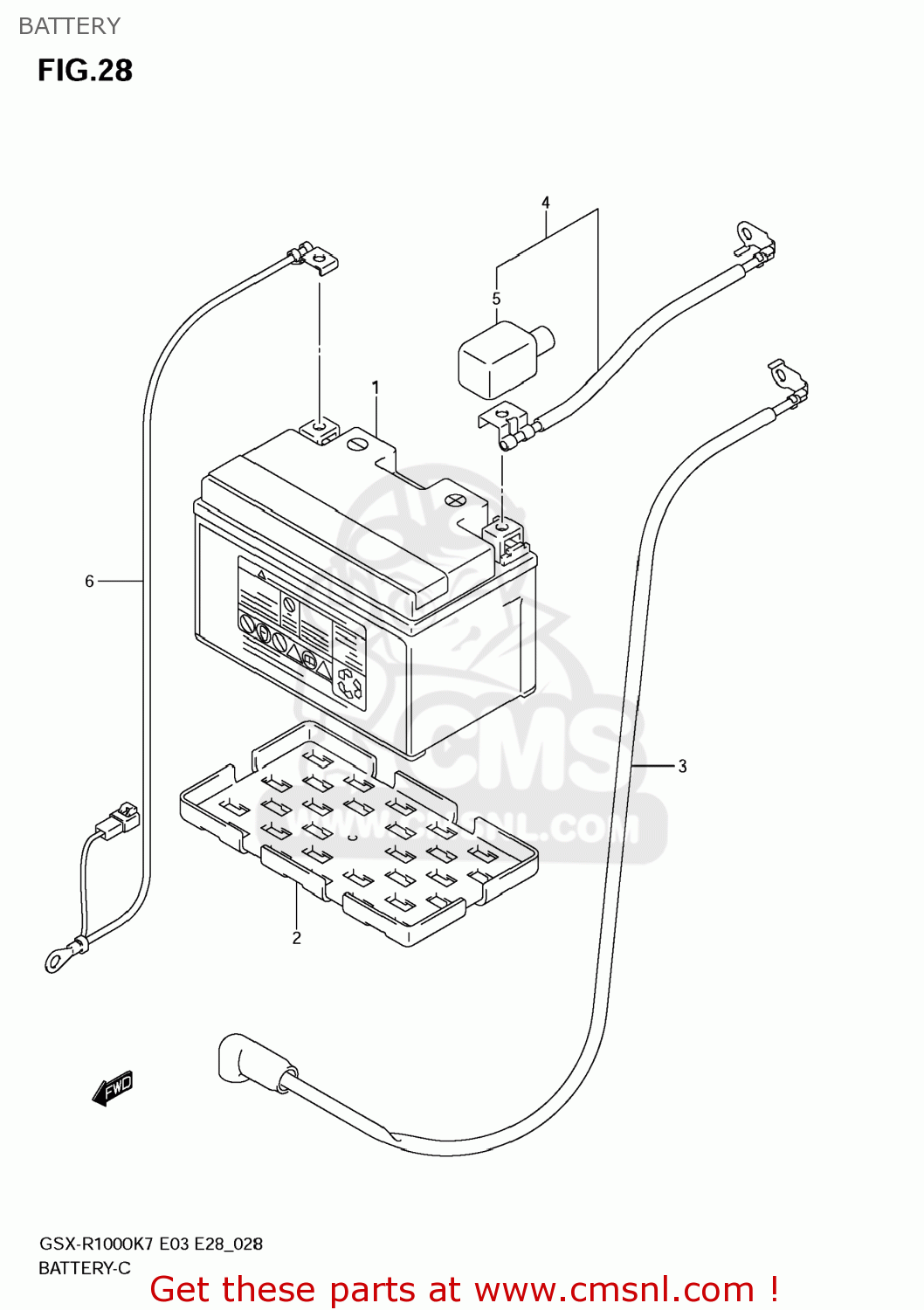

Battery diagram GSXR1000 2008 (K8) USA (E03)

BATTERY GSXR1000 2008 (K8) USA (E03)

BATTERY GSXR1000 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361014G10
ref: 1

BATTERY ASSY,F

€ 111.00

2

3365216G00
ref: 2

PROTECTOR,BATTERY

€ 5.50

3

3381021H00
ref: 3

WIRE,STARTER MOTOR LEAD

€ 29.50

4

3382021H00
ref: 4

WIRE,BATTERY PLUS LEAD

€ 23.50

5

3362416G00
ref: 5

CAP,BATTERY PLUS

€ 4.50

6

3386021H00
ref: 6

WIRE,BATTERY MINUS LEAD

€ 28.00
