THROTTLE BODY (MODEL K8)

GSXR1000 2008 (K8) USA (E03)

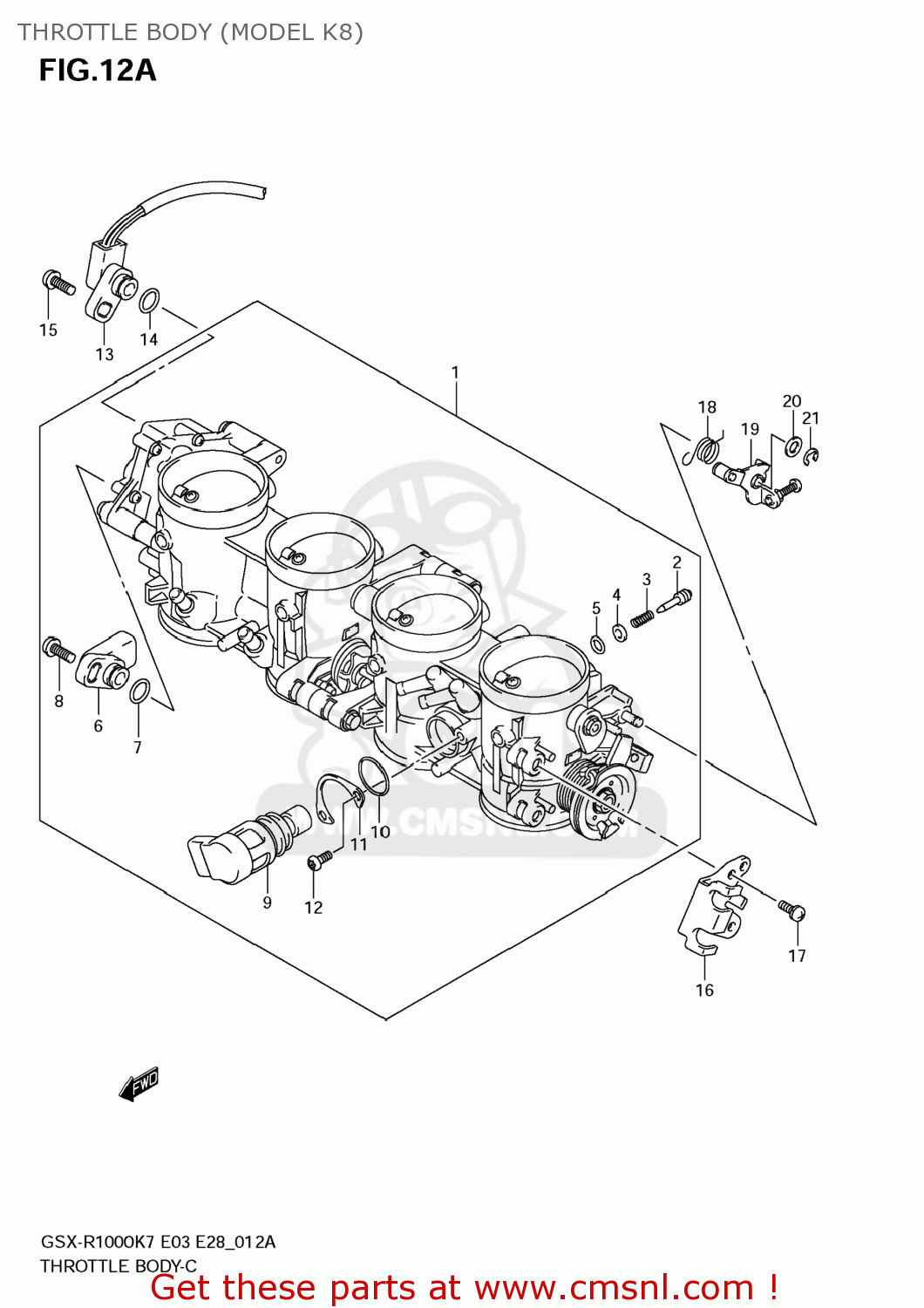

Throttle body (model k8) diagram GSXR1000 2008 (K8) USA (E03)

THROTTLE BODY (MODEL K8) GSXR1000 2008 (K8) USA (E03)
THROTTLE BODY (MODEL K8) GSXR1000 2008 (K8) USA (E03)
THROTTLE BODY (MODEL K8) GSXR1000 2008 (K8) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1340621H02
ref: 1-1
BODY ASSY,THROTTLE
1340621H02
€ 950.00
1-2
1340621H12
ref: 1-2
BODY ASSY,THROTTLE
€ 1,305.50
2
1326918G00
ref: 2
SCREW,AIR ADJUST
€ 7.50
3
1327143E00
ref: 3
SPRING
1327143E00
€ 4.00
4
1329126E00
ref: 4
WASHER
1329126E00
€ 3.00
5
1329526E00
ref: 5
O RING
1329526E00
€ 4.50
6
1358018G00
ref: 6
SENSOR ASSY,THROTTLE MAIN
1358018G00
€ 188.00
7
1357540F00
ref: 7
O RING
1357540F00
€ 3.50
8
1360540F00
ref: 8
SCREW
1360540F00
€ 3.00
9
1811715H10
ref: 9
18117-15H11
VALVE ASSY,ISC
1811715H10
€ 233.00
10
1811905H00
ref: 10
O RING
1811905H00
€ 2.50
11
1342815H00
ref: 11
PLATE,ISC VALVE
€ 19.50
12
1360515H00
ref: 12
SCREW
€ 4.50
13
1358040F30
ref: 13
SENSOR ASSY,TH
1358040F30
€ 188.00
14
1357540F00
ref: 14
O RING
1357540F00
€ 3.50
15
1360540F00
ref: 15
SCREW
1360540F00
€ 3.00
16
1356521H00
ref: 16
PLATE,STAY
€ 40.00
17
1360121H00
ref: 17
SCREW
1360121H00
€ 2.50
18
1342621H00
ref: 18
SPRING
1342621H00
€ 5.00
19
1342021H00
ref: 19
LEVER ASSY,LINK
1342021H00
€ 70.50
20
1342735F10
ref: 20
WASHER
€ 3.50
21
1342435F10
ref: 21
E CLIP
€ 3.00
