MUFFLER
GSXR1000 2008 (K8) USA (E03)

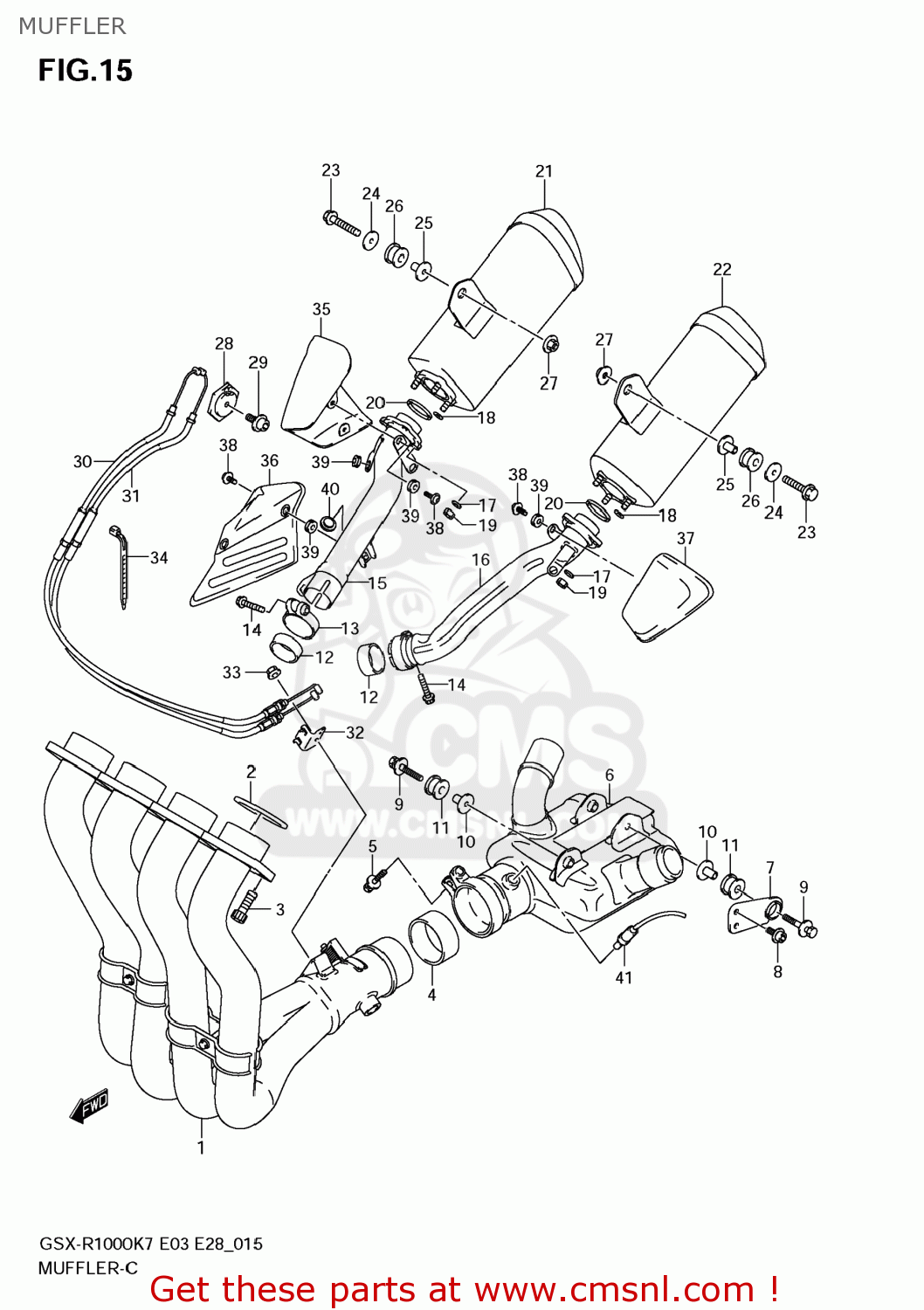

Muffler diagram GSXR1000 2008 (K8) USA (E03)
MUFFLER GSXR1000 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1410021H00
ref: 1
PIPE,EXHAUST
€ 1,925.50
2
1418122D01
ref: 2
GASKET,EXHAUST PIPE (NAS)
€ 9.00
3
071300825A
ref: 3
BOLT
€ 3.00
4
1477121H00
ref: 4
CONNECTOR,CHAMBER
€ 18.50
5
0910308392
ref: 5
BOLT(8X40)
€ 4.00
6
1420021H00
ref: 6
CHAMBER
€ 911.50
7
1477021H00
ref: 7
BRACKET,CHAMBER SPRT
€ 20.50
8
071200816A
ref: 8
BOLT
€ 3.00
9
0911808152
ref: 9
09118-08152-A05
BOLT 8X45
€ 5.00
10
0918008152
ref: 10
SPACER(8.6X12X24.2)
€ 6.00
11
0932012048
ref: 11
CUSHION
€ 5.00
12
1477102F00
ref: 12
CONNECTOR,EXHAUST,R
€ 19.50
13
1445921H10
ref: 13
CLAMP,CONNECTOR
€ 21.50
14
0910308392
ref: 14
BOLT(8X40)
€ 4.00
15
1423021H00
ref: 15
PIPE,JOINT,R
€ 375.50
16
1424021H00
ref: 16
PIPE,JOINT,L
€ 298.00
17
0916008059
ref: 17
WASHER(8.5X18X1.6)
€ 2.00
18
0928008012
ref: 18
O RING(D:1.9,ID:7.8)
€ 4.00
19
083192108A
ref: 19
NUT
€ 1.50
20
1418113A01
ref: 20
GASKET,EXHAUST PIPE (NAS)
€ 10.00
21
1431021H00H01
ref: 21
BODY,MUFFLER,R
€ 1,473.00
22
1434021H00H01
ref: 22
BODY,MUFFLER,L
€ 1,396.00
23
0910308358
ref: 23
BOLT(8X45)
€ 3.50
24
0916008142
ref: 24
WASHER(8.5X28X1.5)
€ 2.50
25
0918008152
ref: 25
SPACER(8.6X12X24.2)
€ 6.00
26
0932012048
ref: 26
CUSHION
€ 5.00
27
083612508A
ref: 27
NUT
€ 2.50
28
1126918G00
ref: 28
11269-18G01
PULLEY CONTROL
€ 17.00
29
071200516A
ref: 29
BOLT
€ 1.50
30
1127621H00
ref: 30
CABLE,EXHAUST VALVE NO.1
€ 50.50
31
1127721H00
ref: 31
CABLE,EXHAUST VALVE NO.2
€ 50.50
32
1425021H00
ref: 32
BRACKET,EXHAUST VALVE CABLE
€ 4.50
33
083193106A
ref: 33
NUT
€ 2.50
34
0940714403
ref: 34
CLAMP(L:125)
€ 2.50
35
1478021H01
ref: 35
COVER,JT,R
€ 307.00
36
1428021H00
ref: 36
COVER,JT,R NO.2
€ 246.50
37
1479021H01
ref: 37
COVER,JT,L
€ 307.00
38
0913906128
ref: 38
SCREW(6X12)
€ 4.00
39
0932008066
ref: 39
CUSHION
€ 7.50
40
0932110018
ref: 40
CUSHION
€ 5.00
41
1821315H00
ref: 41
18213-15H01
SENSOR,OXYGEN
€ 336.00
