STARTING MOTOR

GSXR1000 2008 (K8) USA (E03)

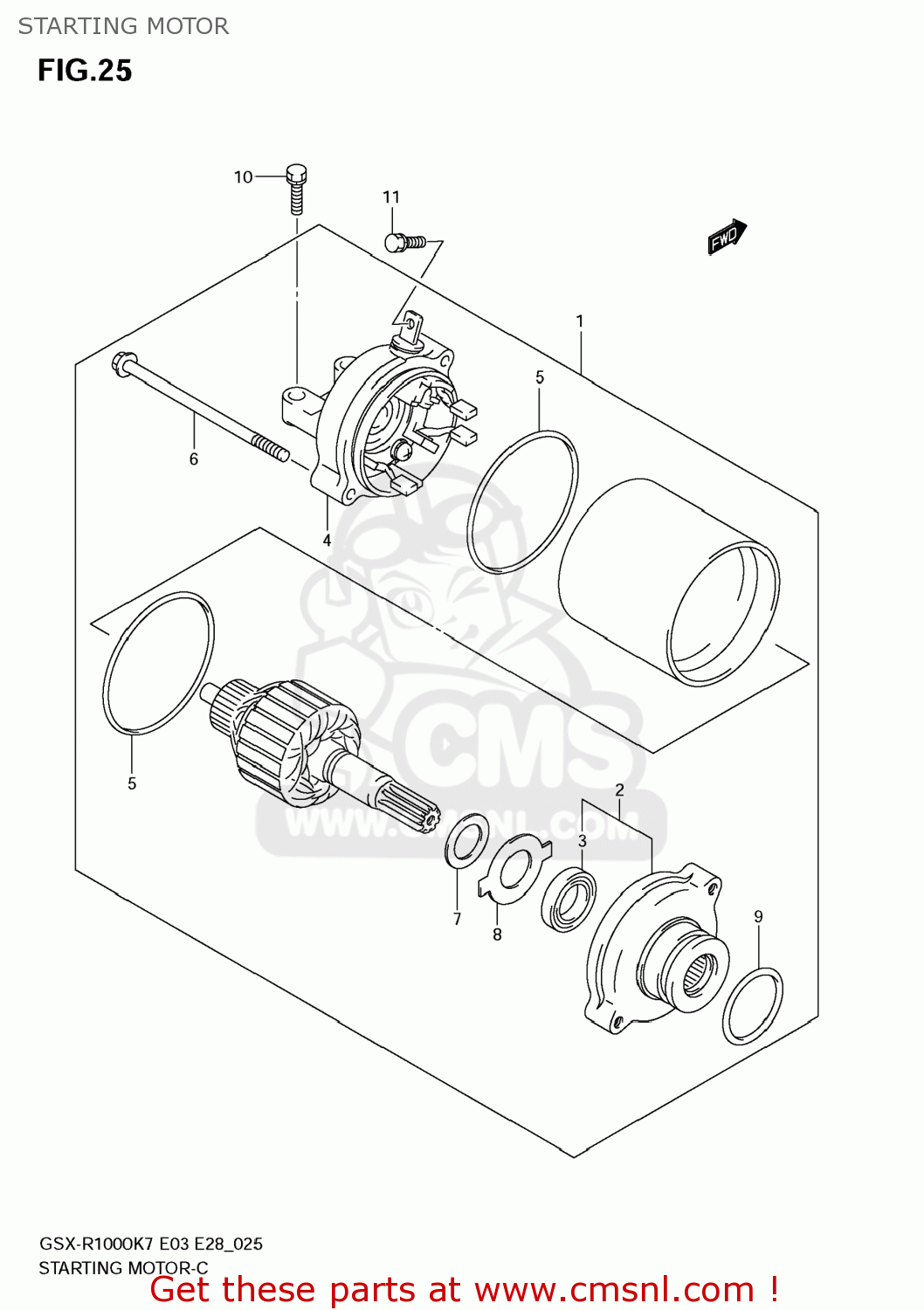

Starting motor diagram GSXR1000 2008 (K8) USA (E03)

STARTING MOTOR GSXR1000 2008 (K8) USA (E03)

STARTING MOTOR GSXR1000 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3110040F00
ref: 1

MOTOR ASSY,STARTING

€ 1,041.00

2

3115040F01
ref: 2

HOUSING ASSY

€ 80.50

3

3115349210
ref: 3

SEAL,OIL

€ 15.00

4

3117540F01
ref: 4

FRAME ASSY

€ 97.00

5

3126432C10
ref: 5

O RING

€ 9.00

6

3128140F00
ref: 6

BOLT

€ 7.00

7

3136132C10
ref: 7

PLATE,LOCK

€ 2.50

8

3136138300
ref: 8

SHIM

€ 1.50

9

3115640F00
ref: 9
31156-40F01

O RING(COLLAR:BROWN)

€ 8.00

10

0912806006
ref: 10
09128-06057

BOLT(6X20)

€ 2.00

11

0913705004
ref: 11

SCREW(5X8)

€ 2.00
