AIR INTAKE PIPE
GSXR750 2012 (L2) USA (E03)

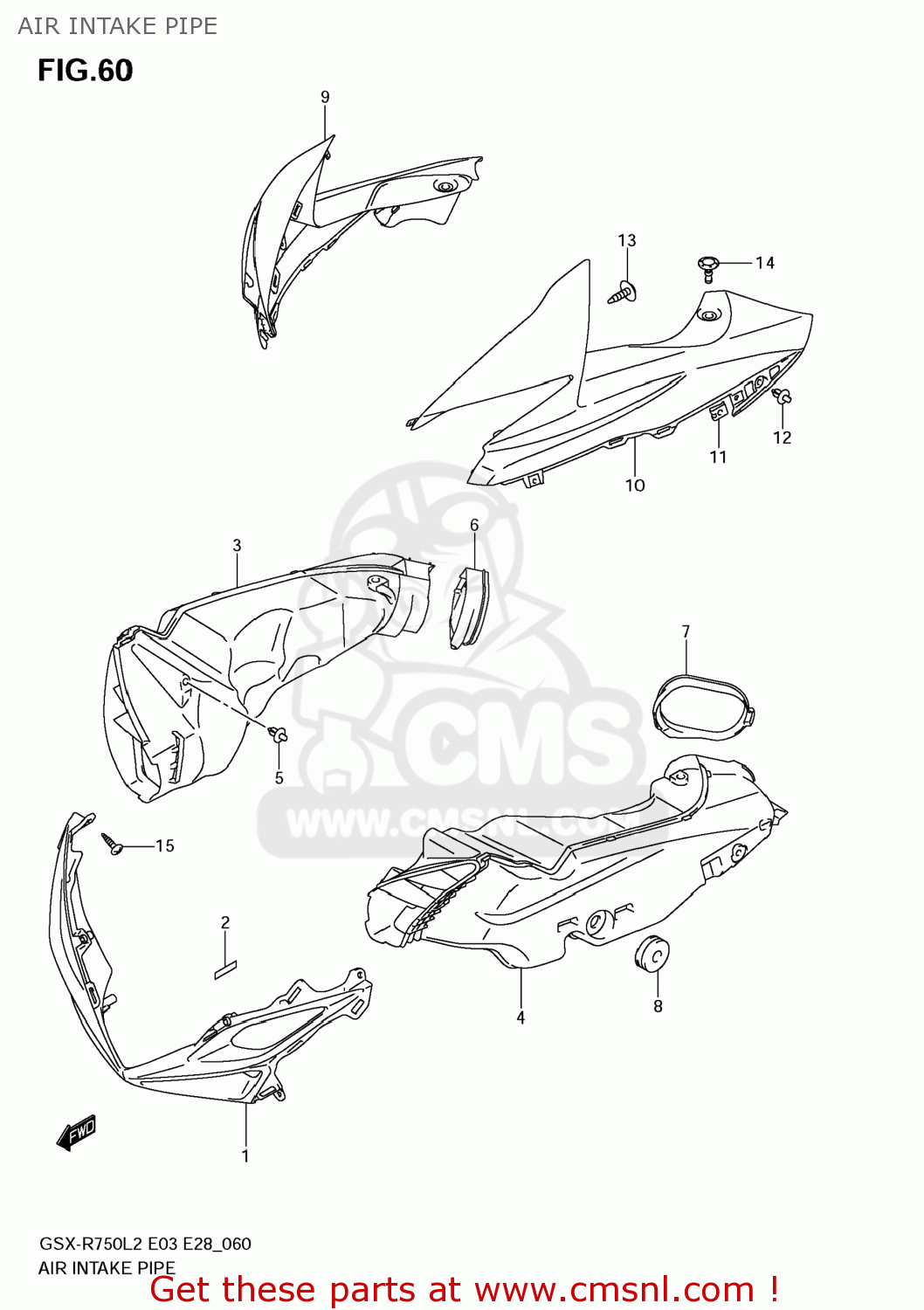

Air intake pipe diagram GSXR750 2012 (L2) USA (E03)
AIR INTAKE PIPE GSXR750 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
9467114J10019
ref: 1-1
COVER,INTAKE
€ 139.00
1-2
9467114J10Y4P
ref: 1-2
COVER,INTAKE
€ 139.00
2
9444306G00
ref: 2
TAPE(6X25X0.13)
€ 2.00
3
9442014J10
ref: 3
PIPE,AIR INTAKE,R
€ 41.00
4
9443014J10
ref: 4
PIPE,AIR INTAKE,L
€ 42.50
5
09409063145PK
ref: 5
CLIP(BLACK)
€ 3.50
6
9442314J00
ref: 6
MOLDING,AIR INTAKE,R
€ 11.50
7
9443314J00
ref: 7
MOLDING,AIR INTAKE,L
€ 11.50
8
0932008028
ref: 8
CUSHION
€ 2.50
9-1
9467214J00YUA
ref: 9-1
COVER,INTAKE,R
€ 131.00
9-2
9467214J00YVB
ref: 9-2
COVER,INTAKE,R
€ 95.00
10-1
9468214J00YUA
ref: 10-1
COVER,INTAKE,L
€ 131.00
10-2
9468214J00YVB
ref: 10-2
COVER,INTAKE,L
€ 95.00
11
0914805052
ref: 11
NUT
€ 3.50
12
09409063145PK
ref: 12
CLIP(BLACK)
€ 3.50
13
0913205050
ref: 13
SCREW(5X12)
€ 2.00
14
9447935F00
ref: 14
CLIP
€ 3.50
15
035410512A
ref: 15
SCREW
€ 2.00
