HANDLE LEVER
GSXR750 2012 (L2) USA (E03)

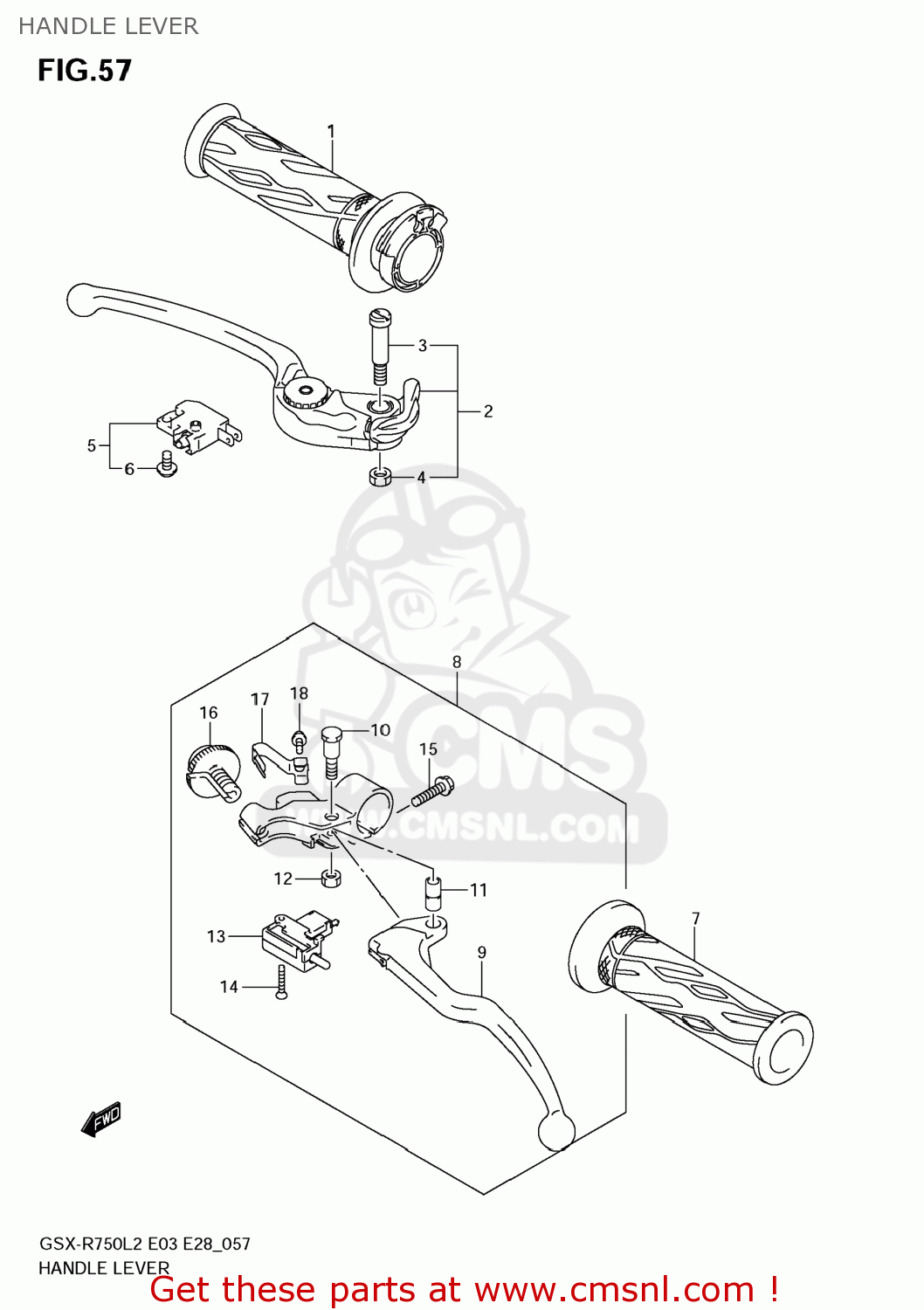

Handle lever diagram GSXR750 2012 (L2) USA (E03)
HANDLE LEVER GSXR750 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711021H01
ref: 1
GRIP,THROTTLE
€ 12.50
2
5730029G30
ref: 2
LEVER ASSY,BRAKE
€ 88.00
3
5743129G00
ref: 3
BOLT,LEVER PIVOT
€ 8.00
4
083192106A
ref: 4
NUT
€ 2.00
5
5746014J01
ref: 5
SWITCH ASSY,FR BRAKE
€ 32.50
6
5746517C00
ref: 6
SCREW
€ 1.50
7
5721121H00
ref: 7
GRIP,L
€ 8.00
8
5750041G20
ref: 8
LEVER ASSY,CLUTCH
€ 107.00
9
5762141G00
ref: 9
LEVER,CLUTCH
€ 24.00
10
5743141G00
ref: 10
BOLT,CLUTCH LEVER PIVOT
€ 14.50
11
5753241G00
ref: 11
COLLAR
€ 15.00
12
083193106B
ref: 12
NUT
€ 2.50
13
5756041G20
ref: 13
SWITCH,CLUTCH
€ 25.00
14
5756241G20
ref: 14
SCREW
€ 6.50
15
015470620B
ref: 15
BOLT
€ 2.50
16
5764133E21
ref: 16
NUT,ADJUSTER
€ 24.00
17
5764433E00
ref: 17
SPRING,ADJUST
€ 6.50
18
5764233E00
ref: 18
SCREW,SPRING
€ 2.50
