FRONT CALIPER
GSXR750 2012 (L2) USA (E03)

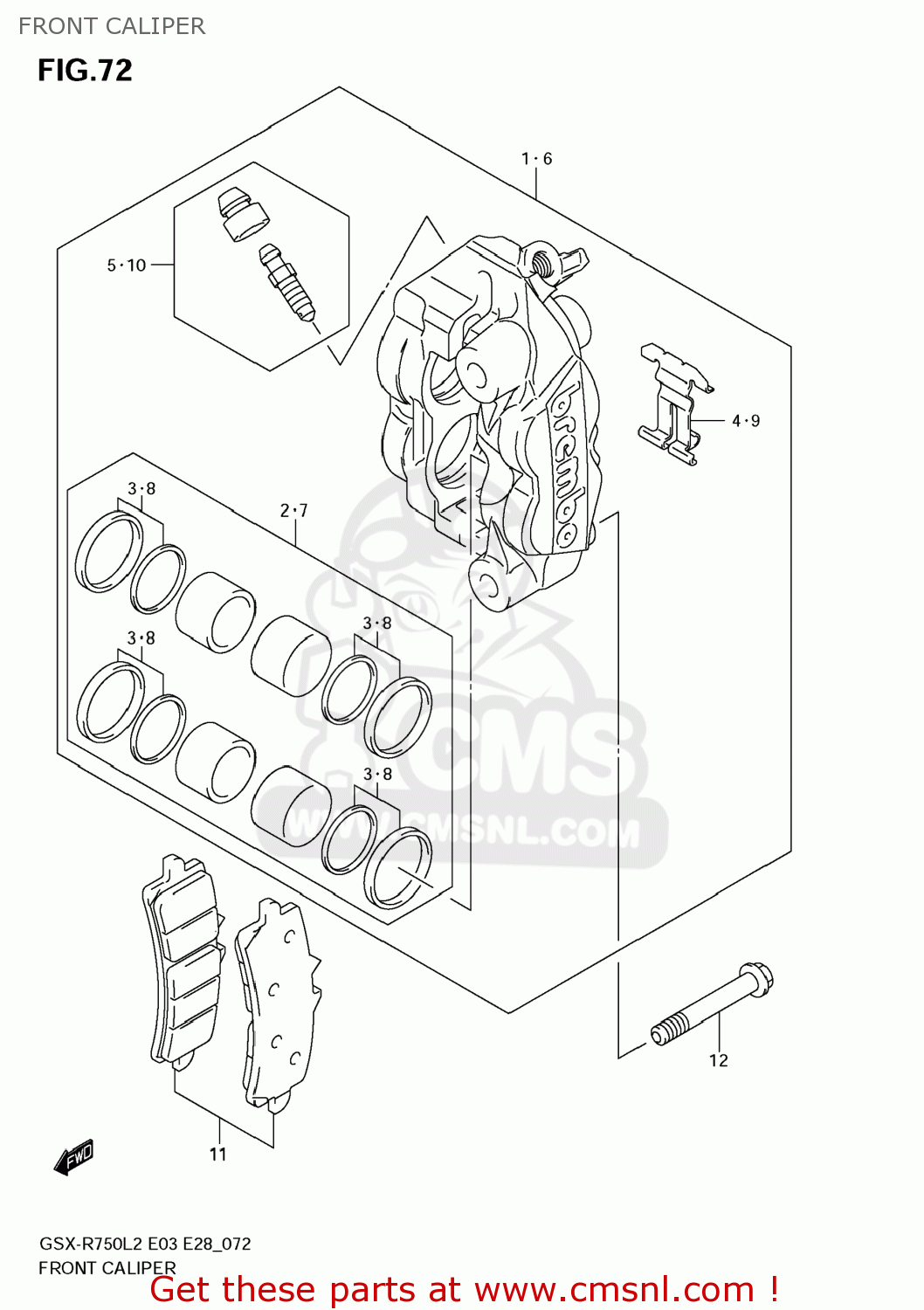

Front caliper diagram GSXR750 2012 (L2) USA (E03)
FRONT CALIPER GSXR750 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5910014J00999
ref: 1
CALIPER ASSY,FR,R
€ 390.00
2
5910014810
ref: 2
PISTON SET
€ 88.50
3
5910014820
ref: 3
SEAL SET,PISTON
€ 43.00
4
5915114J00
ref: 4
SPRING
€ 19.00
5
5910014840
ref: 5
BLEEDER SET
€ 19.50
6
5930014J00999
ref: 6
CALIPER ASSY,FR,L
€ 430.00
7
5910014810
ref: 7
PISTON SET
€ 88.50
8
5910014820
ref: 8
SEAL SET,PISTON
€ 43.00
9
5915114J00
ref: 9
SPRING
€ 19.00
10
5910014840
ref: 10
BLEEDER SET
€ 19.50
11
5910014830
ref: 11
PAD SET(T:3.5) (NAS)
€ 65.50
12
0910310429
ref: 12
BOLT(10X70)
€ 13.00
