ELECTRICAL (GSX-R750 L2 E28)
GSXR750 2012 (L2) USA (E03)

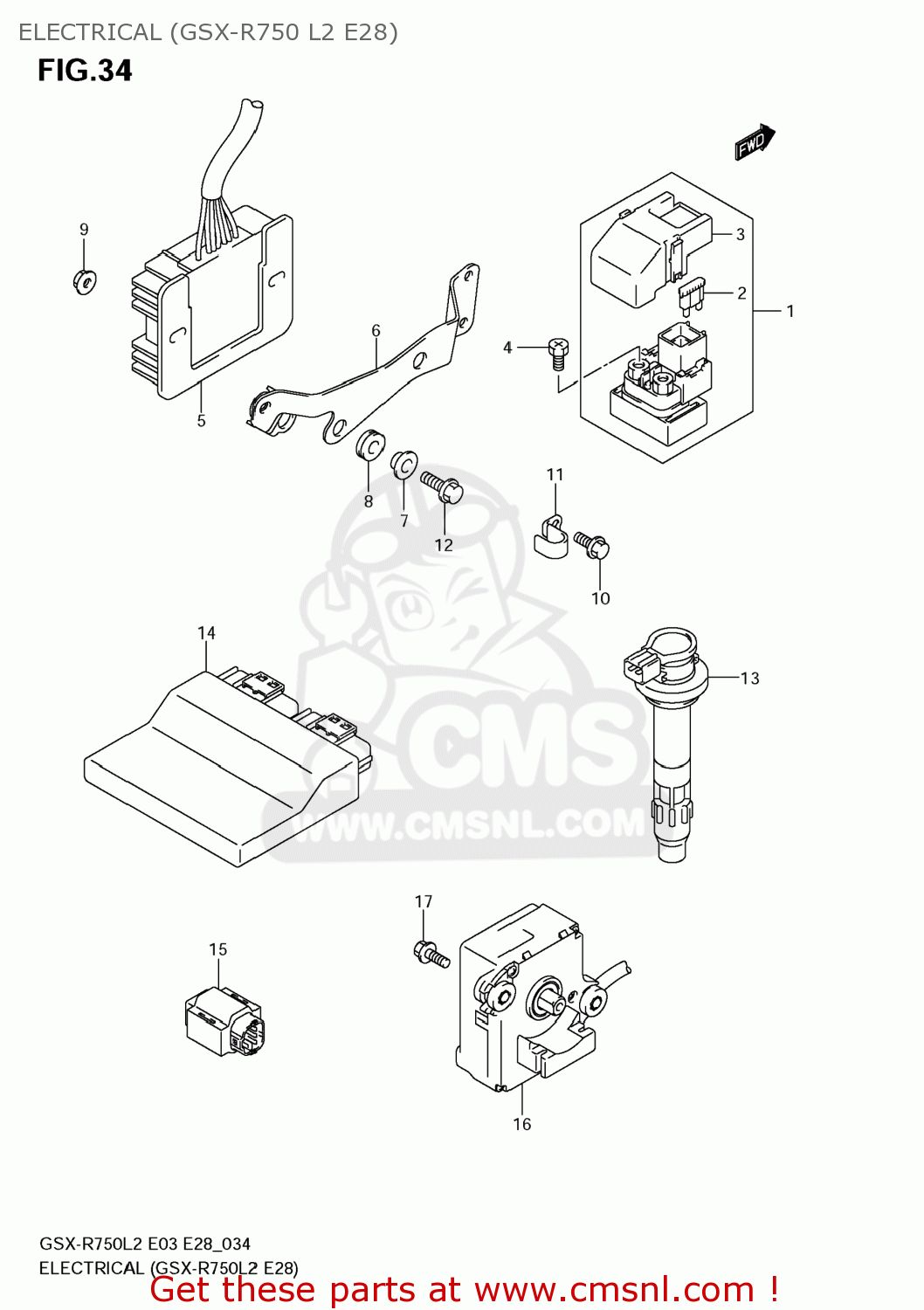

Electrical (gsx-r750 l2 e28) diagram GSXR750 2012 (L2) USA (E03)
ELECTRICAL (GSX-R750 L2 E28) GSXR750 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180006G00
ref: 1
RELAY ASSY,STARTING MOTOR
€ 78.50
2
0948130101
ref: 2
FUSE(30A)
€ 6.00
3
3186147E00
ref: 3
COVER
€ 10.50
4
0912806013
ref: 4
SCREW(6X8)
€ 1.50
5
3280047H00
ref: 5
RECTIFIER ASSY
€ 268.50
6
3283014J00
ref: 6
BRACKET,RECTIFIER
€ 10.50
7
0918006325
ref: 7
SPACER(6.2X8.4X6.9)
€ 3.00
8
0932008066
ref: 8
CUSHION
€ 7.50
9
0911606182
ref: 9
BOLT(6X20)
€ 3.00
10
015500616A
ref: 10
BOLT
€ 2.50
11
0940406433
ref: 11
CLAMP(L:80)
€ 3.00
12
083161006A
ref: 12
NUT
€ 2.50
13
3341038H00
ref: 13
COIL ASSY,IGNITION
€ 113.50
14
3292015J40
ref: 14
CONTROL UNIT,FI
€ 0.00
15
3396027G00
ref: 15
SENSOR ASSY,FUEL CUT
€ 72.00
16
3397047H01
ref: 16
ACTUATOR ASSY,EXHAUST CONTROL
€ 254.00
17
0911606148
ref: 17
BOLT(6X32.5)
€ 2.50
