RADIATOR HOSE
GSXR750 2012 (L2) USA (E03)

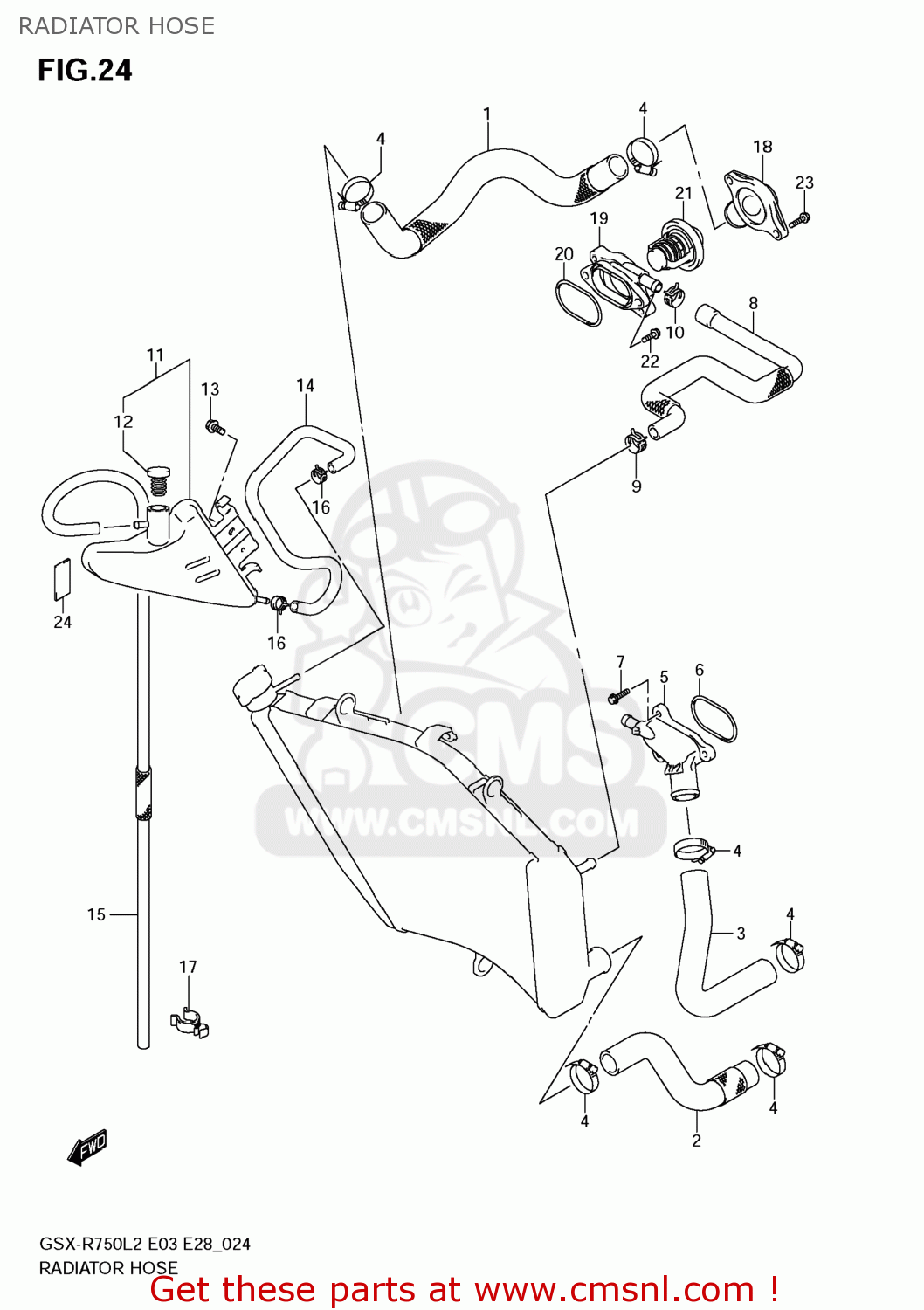

Radiator hose diagram GSXR750 2012 (L2) USA (E03)
RADIATOR HOSE GSXR750 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1785114J00
ref: 1
HOSE,RADIATOR INLET
€ 34.50
2
1785214J00
ref: 2
HOSE,RADIATOR OUTLET
€ 30.00
3
1785314J00
ref: 3
HOSE,CYLINDER INLET
€ 23.50
4
0940235501
ref: 4
CLAMP
€ 7.00
5
1786101H00
ref: 5
CONNECTOR,CYLINDER WATER INLET
€ 42.50
6
1786301H00
ref: 6
O RING,CYL WATER CONNECTOR
€ 5.50
7
015470620A
ref: 7
BOLT
€ 2.50
8
1785414J00
ref: 8
HOSE,WATER BYPASS
€ 24.00
9
0940112409
ref: 9
CLAMP
€ 3.00
10
0940114403
ref: 10
CLIP
€ 3.00
11
1791014J00
ref: 11
TANK ASSY,RESERVOIR
€ 49.00
12
1793102FA0
ref: 12
CAP,RESERVOIR TANK
€ 4.50
13
0911106085
ref: 13
BOLT(6X12)
€ 4.50
14
1798118G00
ref: 14
HOSE,RESERVOIR TANK INLET
€ 9.00
15
1798237H00
ref: 15
HOSE,RESERVOIR TANK OVFL
€ 11.00
16
0940108411
ref: 16
CLIP
€ 3.00
17
0940406429
ref: 17
CLAMP(L:45)
€ 2.50
18
1766137H00
ref: 18
COVER,THERMOSTAT
€ 23.00
19
1766201H00
ref: 19
CONNECTOR,THERMOSTAT
€ 58.50
20
1766301H00
ref: 20
O RING,THERMOSTAT CONNECTOR
€ 6.00
21
1767076G00
ref: 21
THERMOSTAT,WATER 82 DEG
€ 23.50
22
015470620A
ref: 22
BOLT
€ 2.50
23
015500625A
ref: 23
BOLT
€ 2.50
24
4631231D11
ref: 24
CUSHION,FR
€ 3.50
