LABEL (GSX-R750 L2 E28)

GSXR750 2012 (L2) USA (E03)

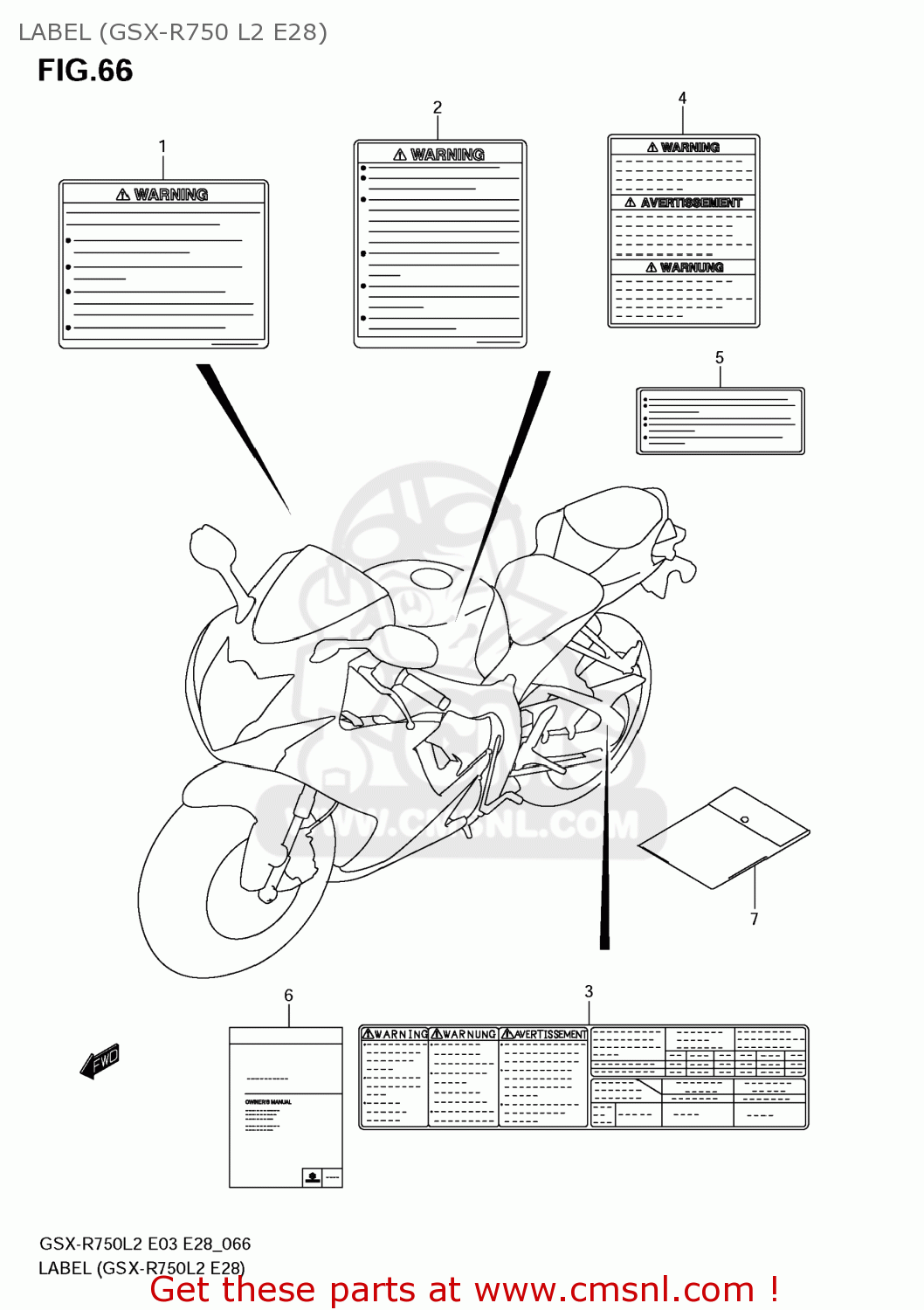

Label (gsx-r750 l2 e28) diagram GSXR750 2012 (L2) USA (E03)

LABEL (GSX-R750 L2 E28) GSXR750 2012 (L2) USA (E03)

LABEL (GSX-R750 L2 E28) GSXR750 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6831929F10
ref: 1

LABEL,GENERAL WARNING

€ 0.00

2-1

6892229F00
ref: 2-1

LABEL,SCREEN

€ 7.00

2-2

6892229F30
ref: 2-2

LABEL,SCREEN

€ 7.00

3

6833215J00
ref: 3

LABEL,TIRE INFORMATION

€ 6.50

4

6861324F00
ref: 4

LABEL,WARNING STEERING

€ 10.50

5

1880340F10
ref: 5

LABEL,FUEL INFORMATION

€ 3.00

6-1

9901115J5101A
ref: 6-1

MANUAL,OWNER'S

€ 20.00

6-2

9901115J5101F
ref: 6-2

MANUAL,OWNER'S

€ 20.00

7

9498042A01
ref: 7

BAG,OWNER'S MANUAL

€ 6.00
