WATER PUMP
GSXR750 2012 (L2) USA (E03)

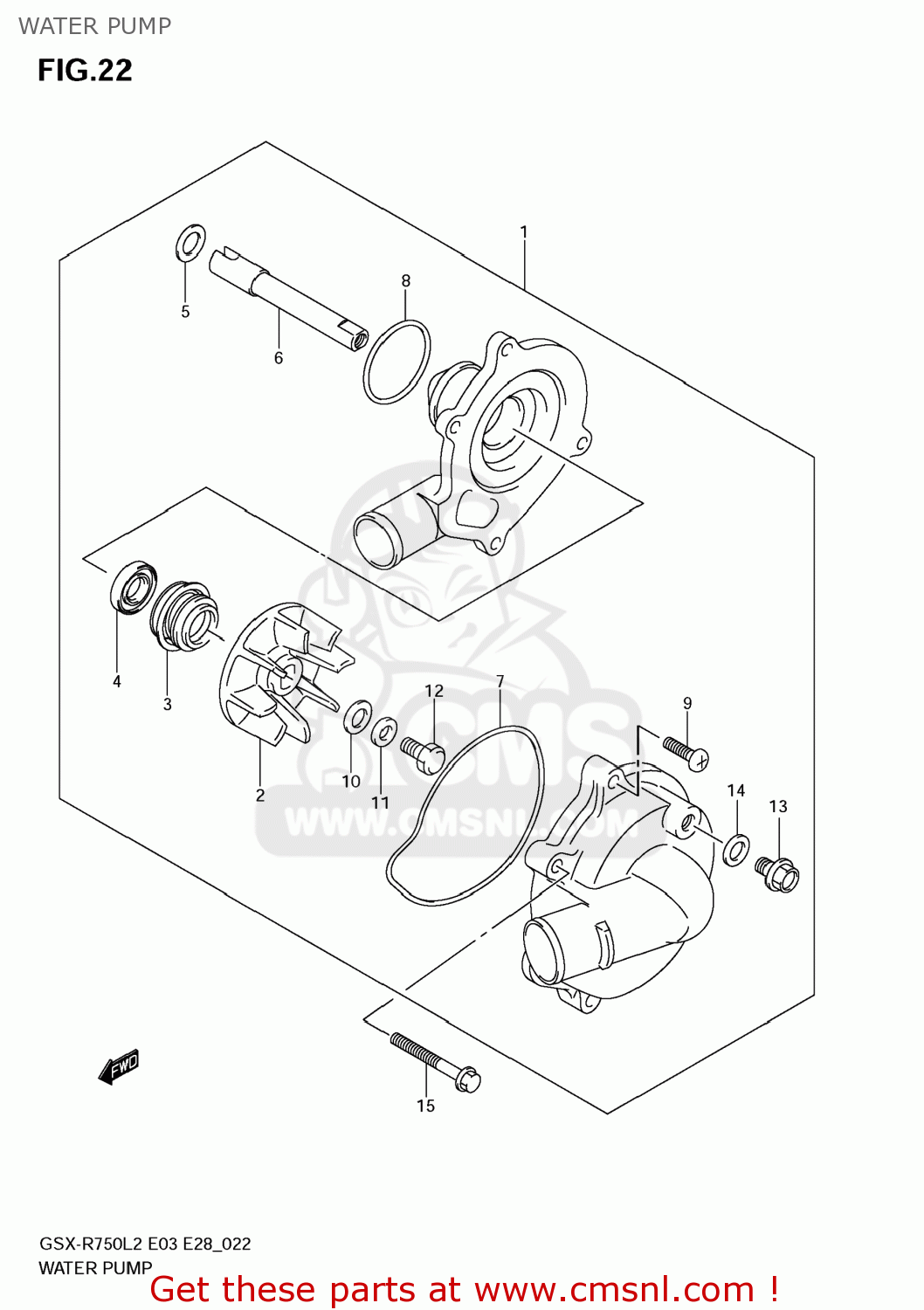

Water pump diagram GSXR750 2012 (L2) USA (E03)
WATER PUMP GSXR750 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1740001H10
ref: 1
PUMP ASSY,WATER
€ 273.50
2
1749101H00
ref: 2
IMPELLER
€ 17.00
3
1747002F10
ref: 3
SEAL,MECHANICAL
€ 21.50
4
1746101H00
ref: 4
SEAL,OIL
€ 15.50
5
1743207G00
ref: 5
WASHER
€ 2.00
6
1751101H00
ref: 6
SHAFT
€ 31.00
7
1741833400
ref: 7
O RING
€ 4.00
8
1743533400
ref: 8
O RING,WATER PUMP HOLDER
€ 13.00
9
021120616A
ref: 9
SCREW
€ 1.50
10
0916806025
ref: 10
GASKET(6X15X2.2) (NAS)
€ 3.00
11
0916406006
ref: 11
WASHER
€ 2.50
12
0910006099
ref: 12
BOLT(6X13)
€ 2.00
13
1741520920
ref: 13
BOLT,DRAIN
€ 5.00
14
0916808016
ref: 14
GASKET(8.2X14X1) (NAS)
€ 1.00
15
015470635A
ref: 15
BOLT
€ 3.00
