UNDER COWLING
GSXR750 2012 (L2) USA (E03)

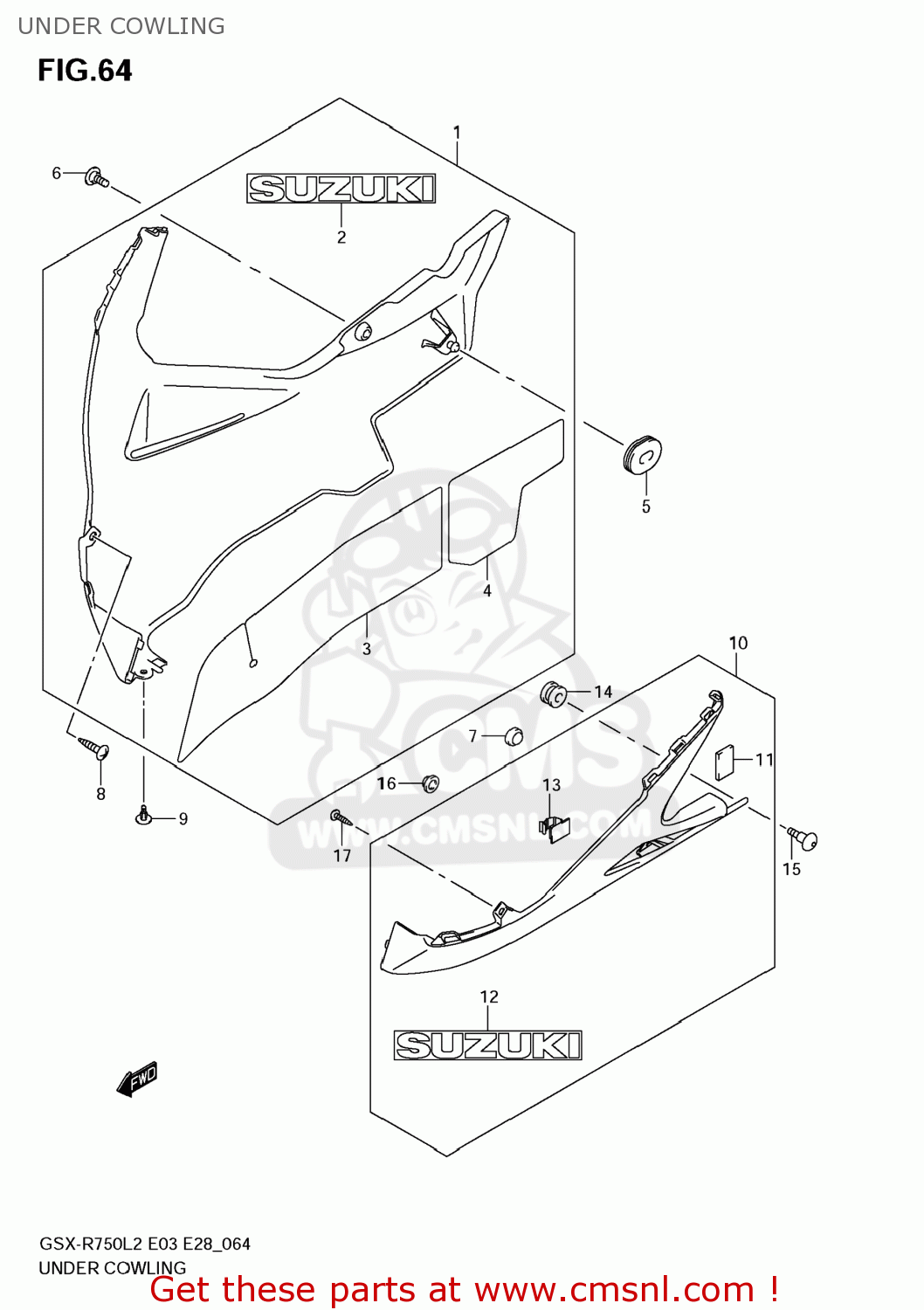

Under cowling diagram GSXR750 2012 (L2) USA (E03)
UNDER COWLING GSXR750 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
9447014J00YUA
ref: 1-1
COWLING,UNDER,R(BLUE)
€ 560.50
1-2
9447014J00YKV
ref: 1-2
COWLING,UNDER,R(BLACK)
€ 627.50
2-1
6818133C20Y4P
ref: 2-1
EMBLEM,SUZUKI
€ 27.50
2-2
6818133C2017U
ref: 2-2
EMBLEM,SUZUKI
€ 20.50
3
9447914J00
ref: 3
SHIELD,UNDER COWL HEAT,R
€ 7.50
4
9447914J10
ref: 4
SHIELD,UNDER COWL HEAT,R
€ 7.00
5
9447814J00
ref: 5
CUSHION,UNDER COWLING,R
€ 3.00
6
9447614J00
ref: 6
SCREW,UNDER COWL,R
€ 3.50
7
0932110018
ref: 7
CUSHION
€ 5.00
8
035410512A
ref: 8
SCREW
€ 2.00
9
9447935F00
ref: 9
CLIP
€ 3.50
10-1
9448014J00YUA
ref: 10-1
COWLING,UNDER,L(BLUE)
€ 432.50
10-2
9448014J00YKV
ref: 10-2
COWLING,UNDER,L(BLACK)
€ 466.00
11
4716110FA0
ref: 11
CUSHION,BRACKET NO.1
€ 5.00
12-1
6818133C20Y4P
ref: 12-1
EMBLEM,SUZUKI
€ 27.50
12-2
6818133C2017U
ref: 12-2
EMBLEM,SUZUKI
€ 20.50
13
0940314311
ref: 13
CLAMP
€ 4.00
14
0932009016
ref: 14
CUSHION
€ 2.50
15
0913906190
ref: 15
BOLT(6X20)
€ 4.00
16
0932110018
ref: 16
CUSHION
€ 5.00
17
035410512A
ref: 17
SCREW
€ 2.00
