COWLING BODY
GSXR750 2012 (L2) USA (E03)

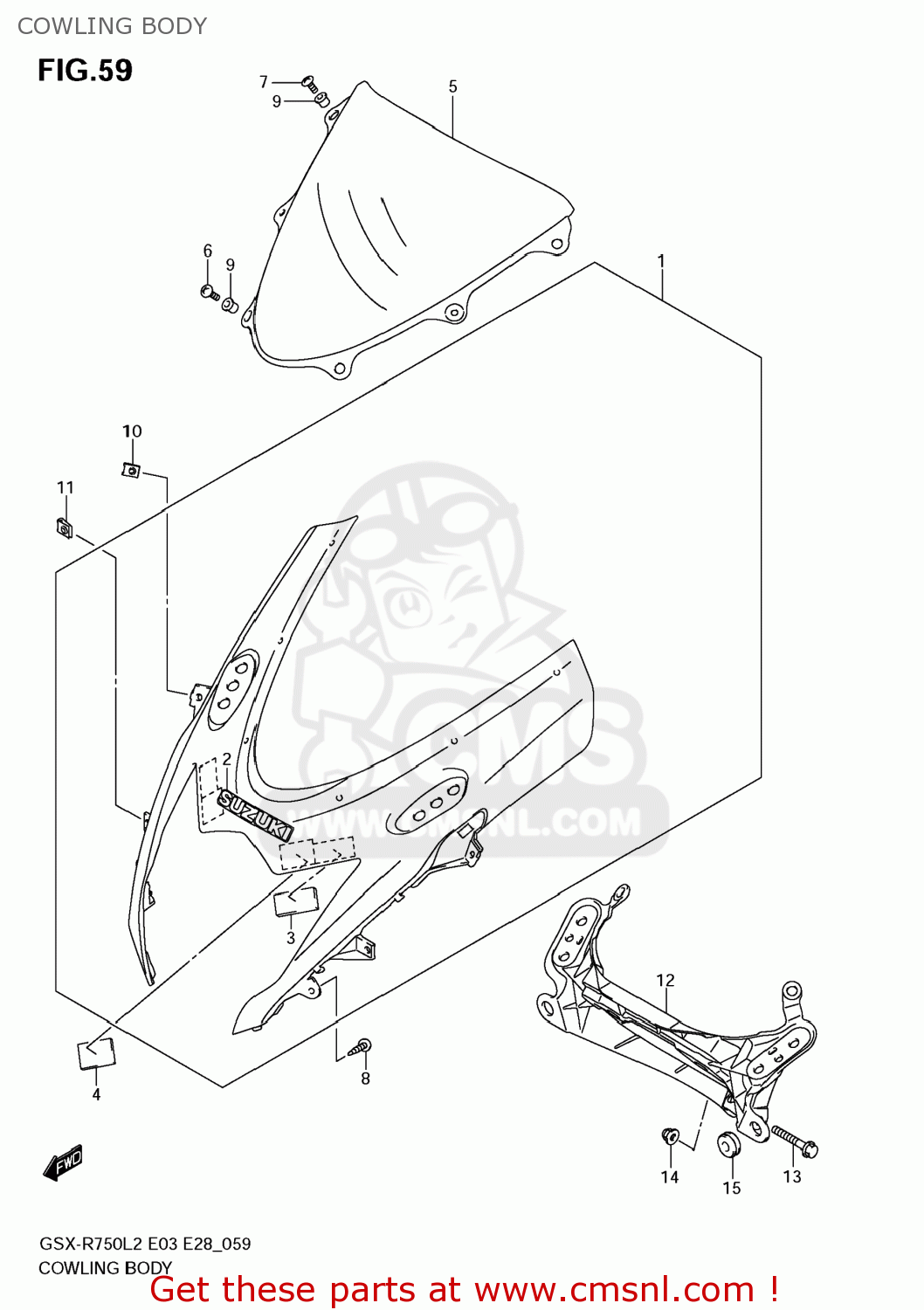

Cowling body diagram GSXR750 2012 (L2) USA (E03)
COWLING BODY GSXR750 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
9441014J10YSF
ref: 1-1
COWLING,BODY(BLUE)
€ 203.50
1-2
9441014J10YMF
ref: 1-2
COWLING,BODY(YELLOW)
€ 174.00
2-1
6864119F00YBD
ref: 2-1
EMBLEM,SUZUKI
€ 11.00
2-2
6828124F10019
ref: 2-2
EMBLEM,SUZUKI
€ 10.50
3
9214614J00
ref: 3
CUSHION,BODY COWLING
€ 2.50
4
4457202F01
ref: 4
FASTENER
€ 8.50
5
9461114J00
ref: 5
WINDSCREEN
€ 57.00
6
0912505133
ref: 6
SCREW(5X18)
€ 2.50
7
0912505134
ref: 7
SCREW(5X15)
€ 2.50
8
035410516A
ref: 8
SCREW
€ 1.50
9
0915905019
ref: 9
NUT
€ 5.50
10
0914805052
ref: 10
NUT
€ 3.50
11
0914805047
ref: 11
NUT
€ 2.00
12
9451114J00
ref: 12
BRACE,COWLING
€ 207.50
13
0910308207
ref: 13
BOLT(8X45)
€ 2.00
14
083132008A
ref: 14
NUT
€ 2.50
15
0932008047
ref: 15
CUSHION
€ 4.00
