GENERATOR

GSXR750 2012 (L2) USA (E03)

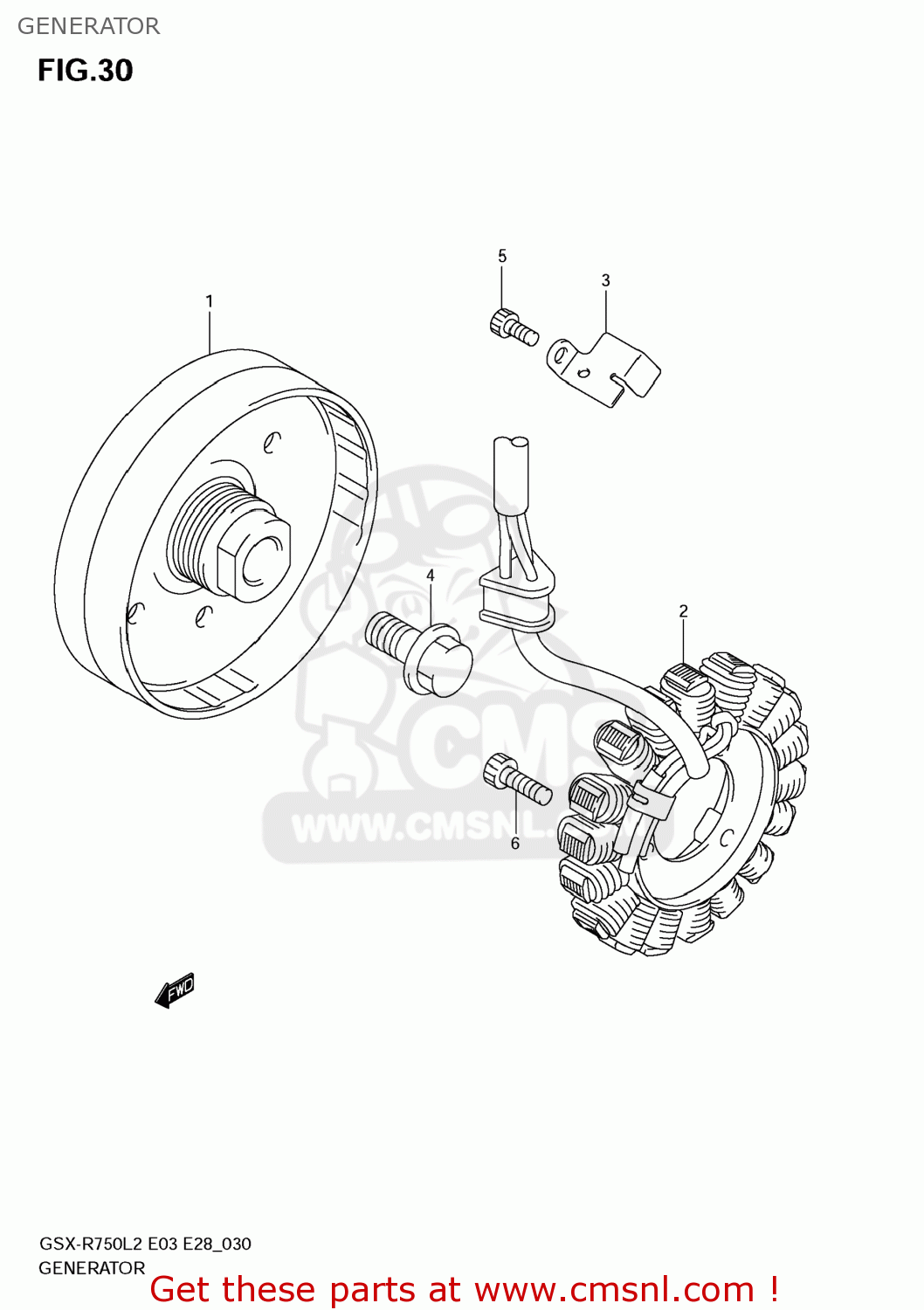

Generator diagram GSXR750 2012 (L2) USA (E03)

GENERATOR GSXR750 2012 (L2) USA (E03)
GENERATOR GSXR750 2012 (L2) USA (E03)
GENERATOR GSXR750 2012 (L2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3140201H20
ref: 1
ROTOR ASSY
3140201H20
€ 399.50
2
3140101H20
ref: 2
STARTER ASSY
€ 304.50
3
3237113E30
ref: 3
CLAMP,GENERATOR LEAD WIRE
€ 3.00
4
3179114J00
ref: 4
BOLT,GENERATOR ROTOR
€ 4.50
5
071300512A
ref: 5
BOLT
071300512A
€ 2.50
6
071300620A
ref: 6
BOLT
€ 3.00
