BATTERY

GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

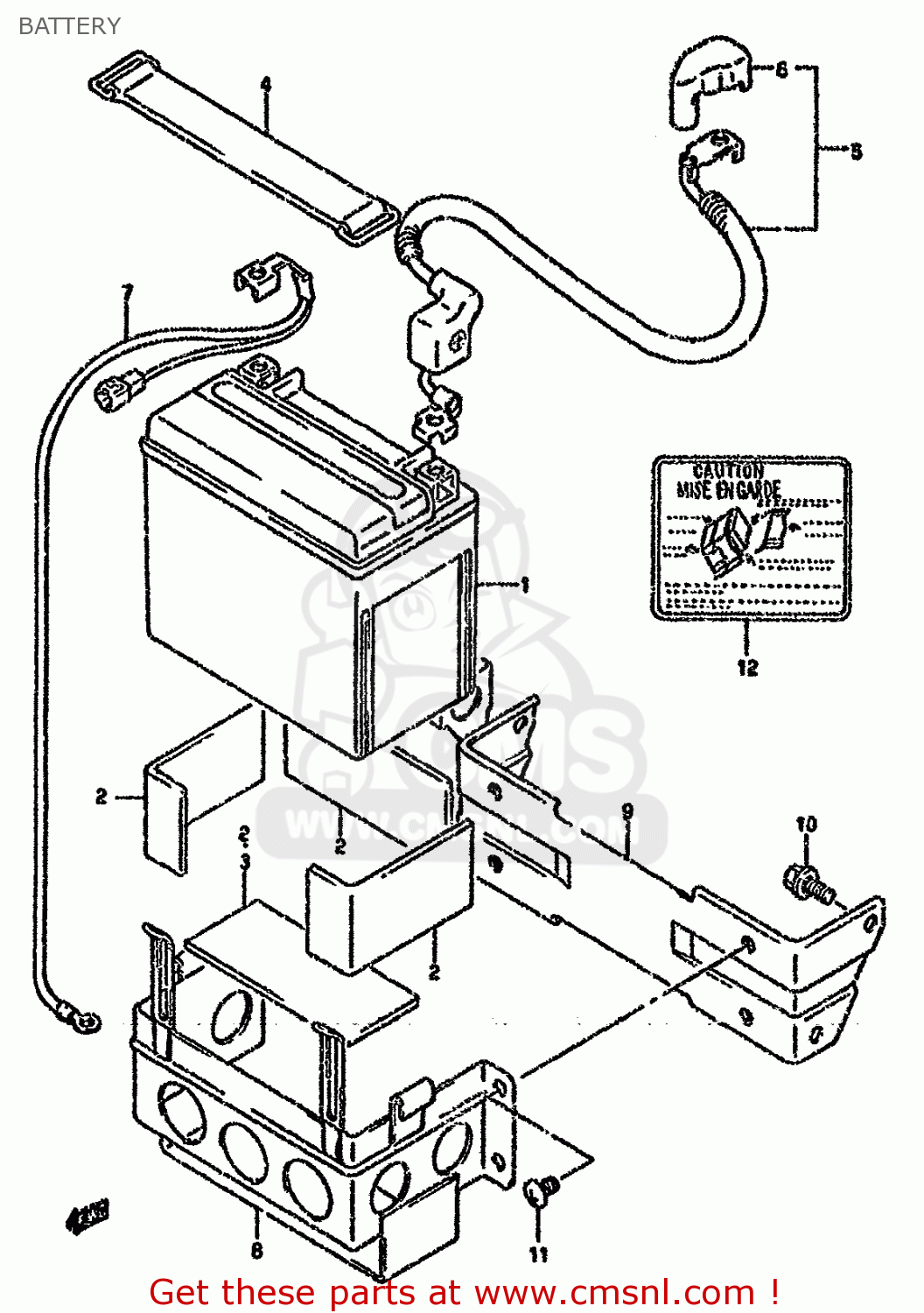

Battery diagram GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

BATTERY GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
BATTERY GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
BATTERY GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
3361017E10
ref: 1-1
MODEL N/P
BATTERY ASSY(YTX12-BS,12V10AH)
3361017E10
€ 97.50
1-2
3361032C10
ref: 1-2
MODEL R/S
BATTERY ASSY(YTX9-BS,12V8AH)
3361032C10
€ 108.50
1-3
3361007D10
ref: 1-3
MODEL N/P E24
BATTERY (YTX12-BS,12V,10AH)
€ 97.50
1-4
3361007D90
ref: 1-4
OPT,MODEL S E22
BATTERY (FT4L-B5-R,12V,3AH)
€ 191.00
2
3365137000
ref: 2
CUT AS REQUIRED PROF
PROTECTOR(170X95X3.0)
3365137000
€ 5.00
3
3365247D00
ref: 3
PROTECTOR,BATTERY
€ 7.00
4-1
0946200015
ref: 4-1
BAND
0946200015
€ 7.00
4-2
0946200040
ref: 4-2
OPT,MODEL S E22
BAND
0946200040
€ 4.50
5-1
3382017E00
ref: 5-1
MODEL N/P
WIRE,BATTERY PLUS
€ 22.50
5-2
3382017E01
ref: 5-2
MODEL R/S
WIRE,BATTERY PLUS
3382017E01
€ 22.50
6-1
3362401D10
ref: 6-1
MODEL N/P
CAP,STARTER RELAY TERMINAL
3362401D10
€ 8.50
6-2
3362433C10
ref: 6-2
MODEL R/S
CAP,BATTERY PLUS
€ 6.50
7
3386046E00
ref: 7
-33860-17E00
WIRE,BATTERY MINUS
3386046E00
€ 27.50
8-1
4154017E10
ref: 8-1
MODEL N/P,-41540-17E
HOLDER COMP,BATTERY
€ 69.50
8-2
4154017E50
ref: 8-2
MODEL R/S
HOLDER,BATTERY
€ 65.00
9-1
4156017E00
ref: 9-1
MODEL N/P
BRACKET,BATTERY HOLDER
€ 39.00
9-2
4156017E50
ref: 9-2
MODEL R/S
BRACKET COMP,BATTERY HOLDER
€ 32.50
10-1
0111406168
ref: 10-1
MODEL N/P
BOLT
€ 1.50
10-2
0155006163
ref: 10-2
MODEL R/S
BOLT
0155006163
€ 2.50
11-1
0214206127
ref: 11-1
MODEL N/P
SCREW 6X12
0214206127
€ 1.50
11-2
0214206123
ref: 11-2
MODEL R/S
SCREW 6X12
0214206123
€ 2.00
12
3369017E00
ref: 12
PLATE,BATTERY CAUTION
€ 3.00
