REAR MASTER CYLINDER (MODEL R/S)

GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

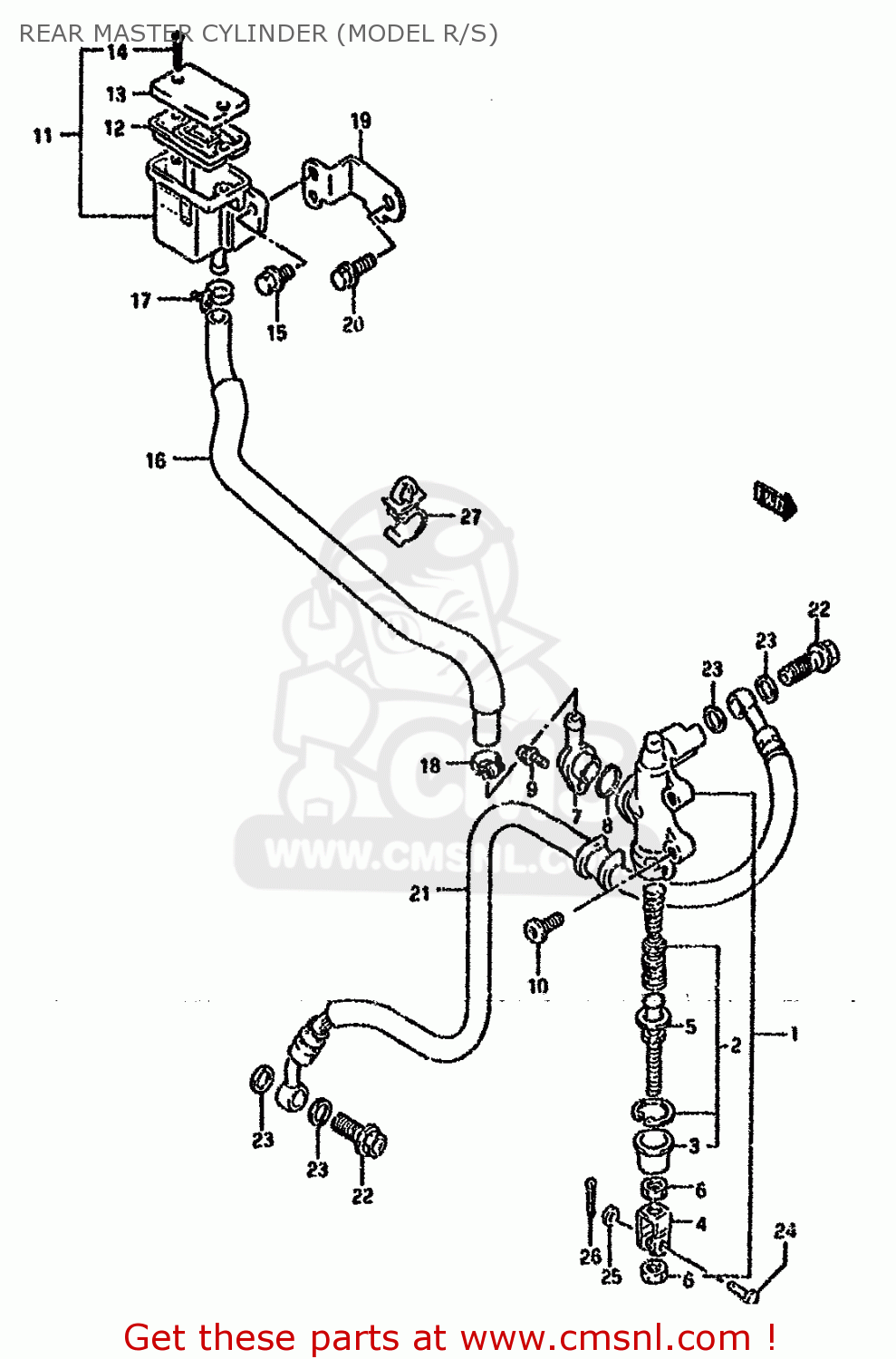

Rear master cylinder (model r/s) diagram GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

REAR MASTER CYLINDER (MODEL R/S) GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
REAR MASTER CYLINDER (MODEL R/S) GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
REAR MASTER CYLINDER (MODEL R/S) GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
6960017E00
ref: 1
CYLINDER ASSEMBLY,REAR MASTER
€ 151.00
2
6960004820
ref: 2
PISTON/CUP SET
6960004820
€ 31.00
3
6969100A00
ref: 3
BOOT
6969100A00
€ 3.50
4
6969227A30
ref: 4
YOKE
6969227A30
€ 12.50
5
6967017E00
ref: 5
ROD,PUSH
6967017E00
€ 25.00
6
6969305A00
ref: 6
NUT
6969305A00
€ 1.50
7
6967205A00
ref: 7
CONNECTOR
6967205A00
€ 4.50
8
6968634200
ref: 8
O RING
6968634200
€ 3.50
9
0211274123
ref: 9
SCREW
€ 2.50
10
0913908010
ref: 10
SCREW(8X22)
0913908010
€ 4.50
11
6974024A01
ref: 11
TANK ASSY,RESERVOIR
6974024A01
€ 99.50
12
5966704700
ref: 12
DIAPHRAGM
5966704700
€ 8.00
13
5966905D00
ref: 13
CAP
5966905D00
€ 13.50
14
6968904A00
ref: 14
SCREW
6968904A00
€ 2.00
15
0155006163
ref: 15
BOLT
0155006163
€ 2.50
16
6973117E00
ref: 16
HOSE,RESERVOIR TANK
6973117E00
€ 29.00
17
0940016302
ref: 17
CLAMP
0940016302
€ 4.50
18-1
0940215502
ref: 18-1
MODEL R
CLAMP
€ 8.00
18-2
0940217511
ref: 18-2
MODEL S
CLAMP
0940217511
€ 8.00
19
6975046E00
ref: 19
PLATE,RESERVOIR TANK
€ 8.50
20
0155006163
ref: 20
BOLT
0155006163
€ 2.50
21
6948017E20
ref: 21
HOSE,RR BRAKE
€ 105.00
22
0936010039
ref: 22
BOLT UNION
€ 6.50
23
0916110009
ref: 23
WASHER(10X15X1.5)
0916110009
€ 2.00
24
0920006037
ref: 24
PIN
0920006037
€ 5.00
25
0832201063
ref: 25
WASHER
0832201063
€ 2.00
26
0411120158
ref: 26
PIN
0411120158
€ 1.50
27
0940316307
ref: 27
CLAMP
0940316307
€ 2.00
25
0832221067
ref: 25
WASHER
0832221067
€ 2.00
26
0411120158
ref: 26
PIN
0411120158
€ 1.50
27
0940316307
ref: 27
CLAMP
0940316307
€ 2.00
