RADIATOR HOSE

GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

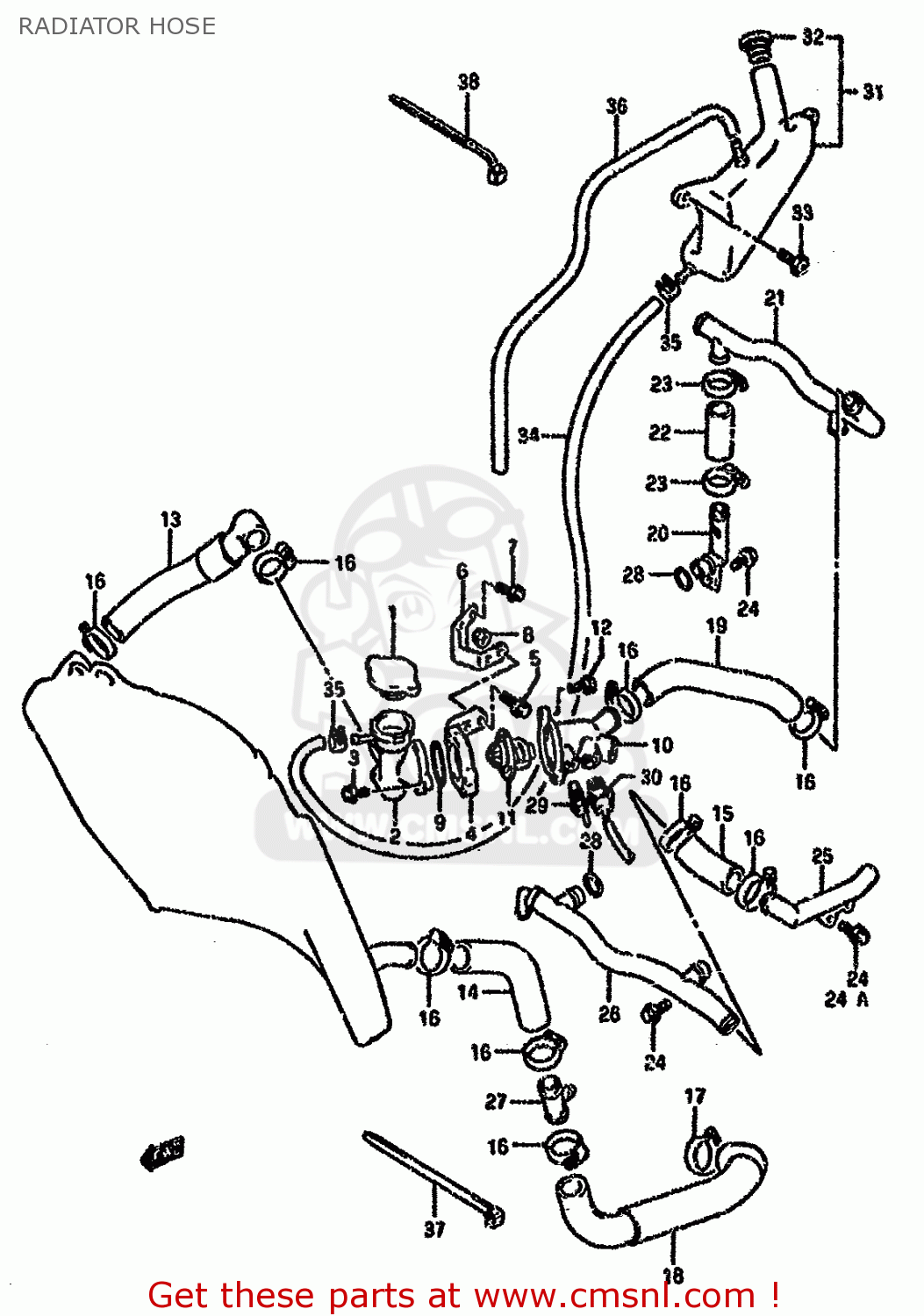

Radiator hose diagram GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

RADIATOR HOSE GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
RADIATOR HOSE GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
RADIATOR HOSE GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
1773020930
ref: 1-1
MODEL N/P
CAP,RADIATOR 1.1
1773020930
€ 40.00
1-2
1773012C01
ref: 1-2
MODEL R/S
CAP,RADIATOR
1773012C01
€ 40.00
2
1779132C00
ref: 2
CONDUCTION,RADIATOR
1779132C00
€ 133.50
3-1
0151706167
ref: 3-1
MODEL N/P
BOLT 6X16
0151706167
€ 1.50
3-2
0155006163
ref: 3-2
MODEL R/S
BOLT
0155006163
€ 2.50
4
1779232C01
ref: 4
BRACKET,CONDUCTION
1779232C01
€ 29.00
5-1
0151706207
ref: 5-1
MODEL N/P
BOLT 6X20
€ 2.50
5-2
0155006203
ref: 5-2
MODEL R/S
BOLT
0155006203
€ 2.50
6
1779317E00
ref: 6
BRACKET,CONDUCTION BRAKE
€ 11.50
7-1
0151706167
ref: 7-1
MODEL N/P
BOLT 6X16
0151706167
€ 1.50
7-2
0155006163
ref: 7-2
MODEL R/S
BOLT
0155006163
€ 2.50
8-1
0915906017
ref: 8-1
MODEL N/P
NUT
0915906017
€ 2.50
8-2
0831610063
ref: 8-2
MODEL R/S
NUT
0831610063
€ 2.50
9
0928044005
ref: 9
O RING(D:2.4,ID:43.2)
0928044005
€ 4.00
10
1766217E00
ref: 10
CONNECTOR,THERMOSTAT INLET
1766217E00
€ 42.00
11
1767032C01
ref: 11
THERMOSTAT,WATER
1767032C01
€ 41.00
12-1
0151706207
ref: 12-1
MODEL N/P
BOLT 6X20
€ 2.50
12-2
0155006203
ref: 12-2
MODEL R/S
BOLT
0155006203
€ 2.50
13-1
1785717E00
ref: 13-1
MODEL N/P
HOSE,WATER
€ 23.50
13-2
1785717E01
ref: 13-2
MODEL R/S
HOSE,RADIATOR INLET
1785717E01
€ 23.50
14
1785217E00
ref: 14
HOSE,RADIATOR OUTLET
1785217E00
€ 18.00
15-1
1785517E00
ref: 15-1
MODEL N/P
HOSE,WATER
1785517E00
€ 11.00
15-2
1785517E02
ref: 15-2
MODEL R
HOSE,WATER
1785517E02
€ 11.00
15-3
1785617E50
ref: 15-3
MODEL S
HOSE,WATER
1785617E50
€ 11.00
16-1
0940230502
ref: 16-1
MODEL N/P/R
CLAMP
€ 11.50
16-2
0940232511
ref: 16-2
MODEL S
CLAMP
0940232511
€ 11.50
17-1
0940233502
ref: 17-1
MODEL N/P/R
CLAMP
0940233502
€ 10.50
17-2
0940238511
ref: 17-2
MODEL S
CLAMP
0940238511
€ 10.50
18
1785317E00
ref: 18
HOSE,WATER PUMP INLET
1785317E00
€ 40.00
19
1785617E00
ref: 19
HOSE,HEAD OUTLET
1785617E00
€ 18.50
20
1788017E00
ref: 20
PIPE,HEAD OUTLET
1788017E00
€ 39.00
21-1
1784017E00
ref: 21-1
MODEL N/P
PIPE COMP,HEAD OUTLET
€ 105.00
21-2
1784017E10
ref: 21-2
MODEL R/S
PIPE COMP,HEAD OUTLET
€ 105.00
22
1785328C20
ref: 22
-17859-17E00
HOSE,RADIATOR JOINT NO.1
1785328C20
€ 17.50
23-1
0940225502
ref: 23-1
MODEL N/P/R
CLAMP
0940225502
€ 8.50
23-2
0940228511
ref: 23-2
MODEL S
CLAMP
0940228511
€ 8.50
24-1
0151706125
ref: 24-1
MODEL N/P
BOLT 6X12
0151706125
€ 2.50
24-2
0153006123
ref: 24-2
MODEL R
BOLT
€ 0.00
24-3
0155006123
ref: 24-3
MODEL S
BOLT
0155006123
€ 2.50
24A
0910306183
ref: 24A
MODEL S
BOLT(6X36)
0910306183
€ 2.00
25-1
1786017E00
ref: 25-1
MODEL N/P
PIPE,CYLINDER SIDE
1786017E00
€ 69.50
25-2
1786021E00
ref: 25-2
MODEL R
PIPE
€ 69.50
25-3
1786017E00
ref: 25-3
MODEL S
PIPE,CYLINDER SIDE
1786017E00
€ 69.50
26-1
1787017E00
ref: 26-1
MODEL N/P
PIPE COMP,CYLINDER INLET
€ 64.00
26-2
1787021E01
ref: 26-2
MODEL R/S
PIPE,CYLINDER INLET
1787021E01
€ 168.00
27-1
1789017E00
ref: 27-1
MODEL N/P
UNION,HOSE JOINT
€ 25.00
27-2
1789021E00
ref: 27-2
MODEL R
UNION,HOSE JNT
€ 25.00
27-3
1789017E01
ref: 27-3
MODEL S
UNION,HOSE JOINT
1789017E01
€ 25.00
28
0928018009
ref: 28
O RING(D:3.2,ID:17.8)
0928018009
€ 8.00
29-1
3485082002
ref: 29-1
MODEL N/P
GAUGE ASSY,WATER TEMPERATURE
€ 25.00
29-2
3485050A00
ref: 29-2
MODEL R/S
GAUGE ASSY,WATER TEMP
3485050A00
€ 25.00
30
1768045D00
ref: 30
SWITCH COMP,RADIATOR FAN
1768045D00
€ 95.00
31
1791017E10
ref: 31
TANK ASSY,RESERVOIR
1791017E10
€ 55.50
32
1793212C00
ref: 32
CAP,RESERVOIR TANK
1793212C00
€ 3.50
33
0913606022
ref: 33
SCREW(6X20)
0913606022
€ 2.50
34-1
1798117E00
ref: 34-1
MODEL N/P
HOSE,RESERVOIR TANK INLET
€ 19.50
34-2
1798121E00
ref: 34-2
MODEL R/S
HOSE,RESERVOIR TANK INLET
€ 19.50
35-1
0940108407
ref: 35-1
MODEL N/P
CLIP
€ 3.00
35-2
0940108411
ref: 35-2
MODEL R/S
CLIP
0940108411
€ 3.00
36
1798217E00
ref: 36
HOSE,RESERVOIR TANK OVERFLOW
€ 19.50
37
0940722404
ref: 37
CLAMP
0940722404
€ 2.50
38
0940718402
ref: 38
CLAMP(L:165)
0940718402
€ 2.50
