OIL COOLER-OIL FILTER

GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

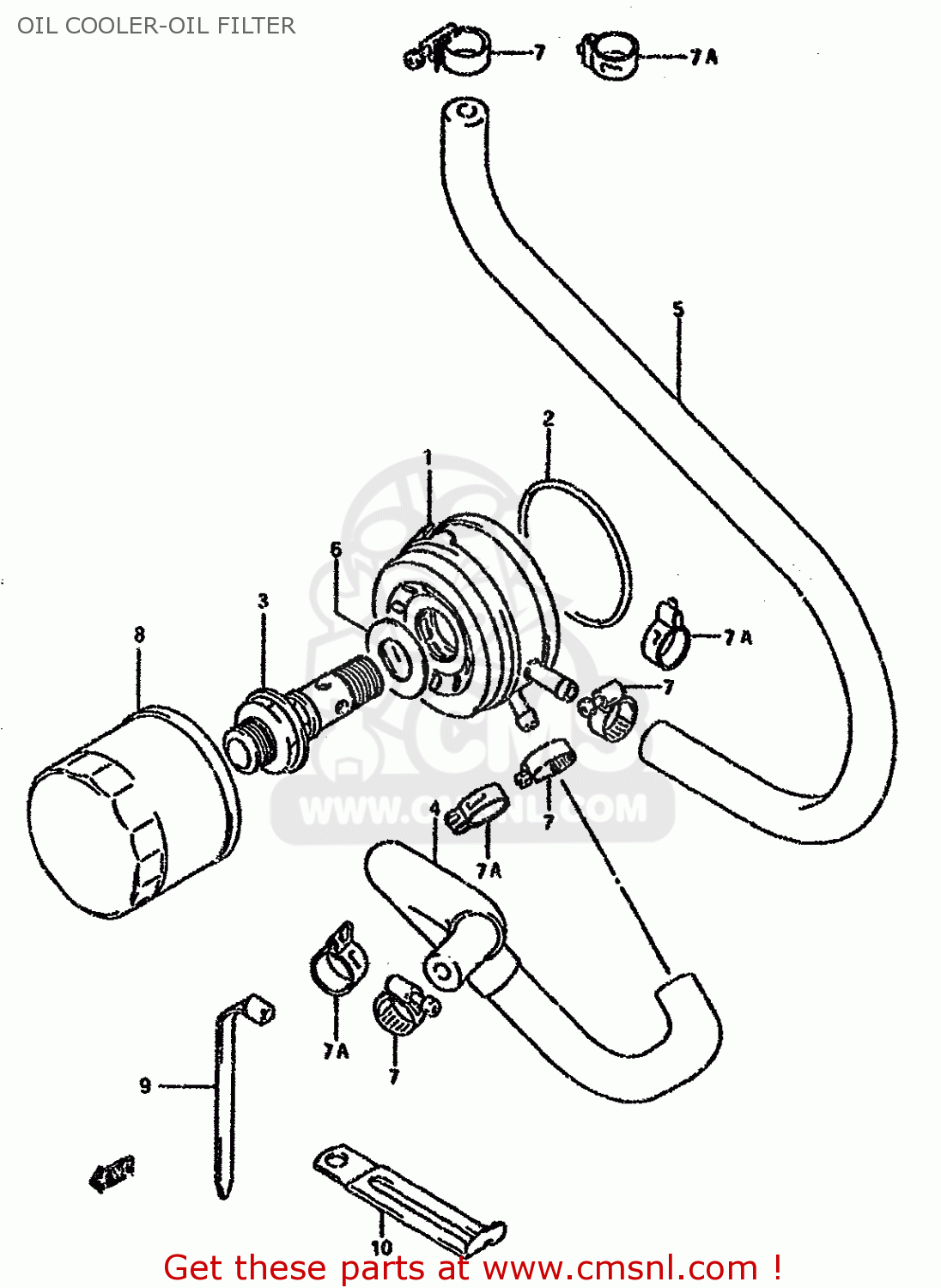

Oil cooler-oil filter diagram GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

OIL COOLER-OIL FILTER GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

OIL COOLER-OIL FILTER GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

1660017E00
ref: 1

COOLER ASSY,OIL

€ 525.00

2

0928064003
ref: 2

O RING(D:3.1,ID:63.9)

€ 5.00

3

1659133C00
ref: 3

BOLT,OIL COOLER UNION

€ 46.00

4

1646117E00
ref: 4

HOSE,OIL COOLER WATER IN

€ 22.50

5-1

1647117E00
ref: 5-1
MODEL N/P

HOSE,OIL

€ 31.50

5-2

1647117E01
ref: 5-2
MODEL R

HOSE,OIL

€ 31.50

5-3

1647117E02
ref: 5-3
MODEL S

HOSE,OIL COOLER OUTLET

€ 31.50

6-1

0918122009
ref: 6-1
MODEL N/P

SHIM,PRIMARY SHAFT (T=0)

€ 3.00

6-2

0822122355
ref: 6-2
MODEL R/S

SHIM

€ 2.00

7

0940215502
ref: 7
MODEL N/P/R

CLAMP

€ 8.00

7A

0940113410
ref: 7A
MODEL S

CLIP

€ 3.00

8

1651006801
ref: 8

FILTER ASSY,ENGINE OIL

€ 0.00

9

0940718402
ref: 9

CLAMP(L:165)

€ 2.50

10-1

0940406412
ref: 10-1
T:1.0,MODEL N/P

CLAMP

€ 2.50

10-2

0940406402
ref: 10-2
T:0.7,MODEL R

CLAMP

€ 2.50

10-3

0940406429
ref: 10-3
T:0.6,MODEL S

CLAMP(L:45)

€ 2.50

all assemblies
