FUEL TANK (MODEL S)

GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

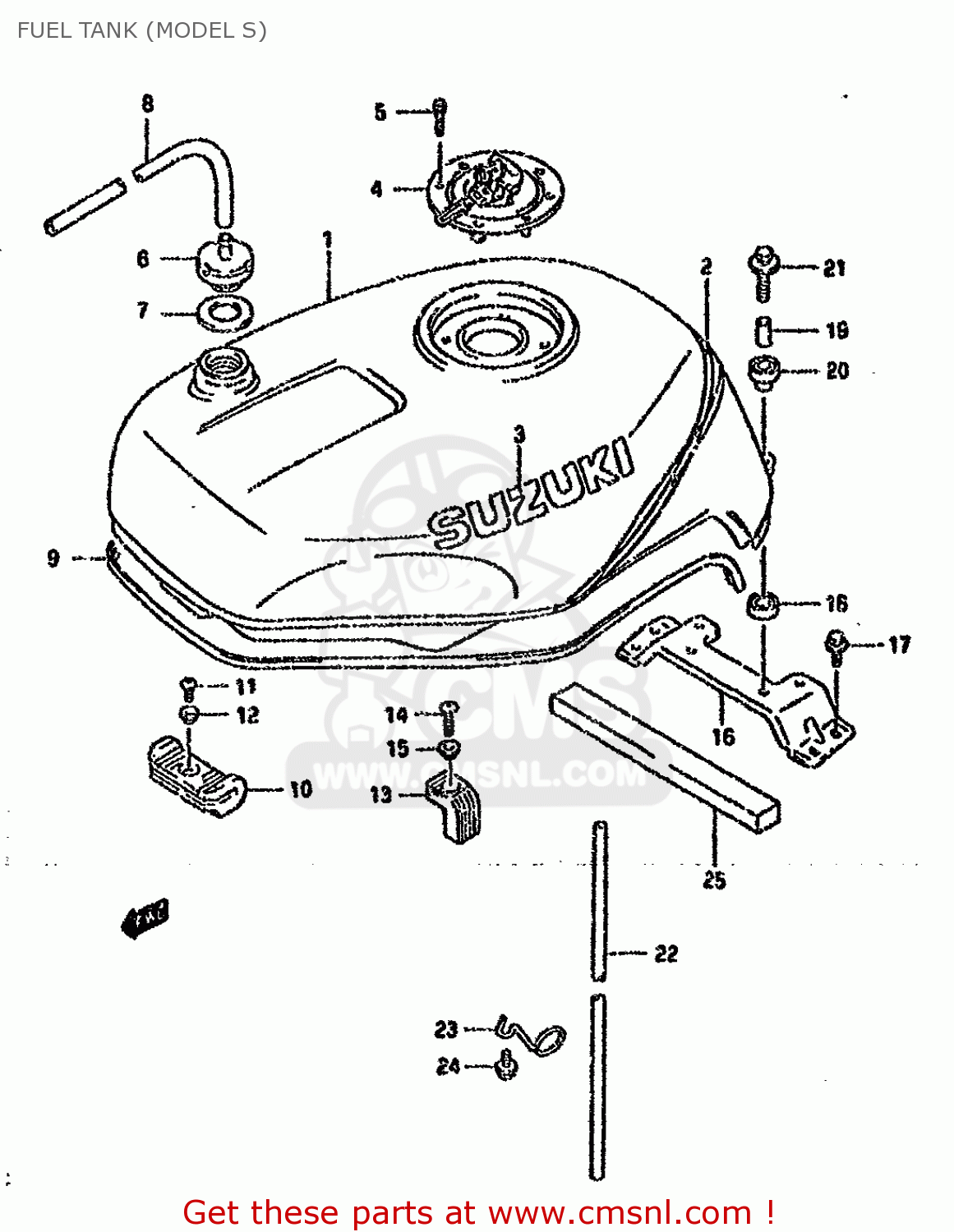

Fuel tank (model s) diagram GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

FUEL TANK (MODEL S) GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
FUEL TANK (MODEL S) GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
FUEL TANK (MODEL S) GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4410017EN1M18
ref: 1-1
TANK ASSEMBLY,FUEL
€ 927.50
1-2
4410017EN1D4A
ref: 1-2
TANK ASSY,FUEL
€ 740.00
1-3
4410017EN1D5R
ref: 1-3
TANK ASSY,FUEL
€ 577.00
1-4
4410017EP1M18
ref: 1-4
E22
TANK ASSY,FUEL (BLUE)
€ 0.00
1-5
4410017EP1D4A
ref: 1-5
E22
TANK ASSY,FUEL (SILVER)
€ 0.00
1-6
4410017EP1D5R
ref: 1-6
E22
TANK ASSY,FUEL
€ 0.00
2-1
6811517E20D4G
ref: 2-1
FOR M18
TAPE,FUEL TANK STRIPE
6811517E20D4G
€ 44.50
2-2
6811517E20D6F
ref: 2-2
FOR D4A
TAPE,FUEL TANK STRIPE
€ 47.50
2-3
6811517E20D5T
ref: 2-3
FOR D5R
TAPE,FUEL TANK STRIPE
6811517E20D5T
€ 28.50
3-1
6811112C000JW
ref: 3-1
FOR M18,D5R
EMBLEM,FUEL TANK
6811112C000JW
€ 21.00
3-2
6811112C0020H
ref: 3-2
FOR D4A
EMBLEM,FUEL TANK
€ 15.50
4
4420101852
ref: 4
CAP SET,FUEL TANK
4420101852
€ 166.50
5
0910605017
ref: 5
BOLT(5X20)
0910605017
€ 3.00
6
4424006B10
ref: 6
PLUG,FUEL TANK BREATHER
4424006B10
€ 36.00
7
0916812012
ref: 7
GASKET(12.5X20X2.5) (NAS)
0916812012
€ 2.00
8
0935250823600
ref: 8
HOSE(5X8.2X600)
0935250823600
€ 13.00
9
6824117E00
ref: 9
MOLDING,FUEL TANK
€ 23.00
10
4451141C00
ref: 10
CUSHION,FUEL TANK FR
4451141C00
€ 13.50
11
0214205103
ref: 11
SCREW
0214205103
€ 2.50
12
0916905012
ref: 12
WASHER
0916905012
€ 3.00
13
4454533C01
ref: 13
CUSHION,TANK SIDE
4454533C01
€ 11.50
14
0214206203
ref: 14
SCREW
0214206203
€ 2.00
15
0916906045
ref: 15
WASHER
0916906045
€ 2.50
16
4453017E11
ref: 16
BRACKET,FUEL TANK,REAR
4453017E11
€ 31.50
17
0153006163
ref: 17
BOLT
€ 2.50
18
0932014017
ref: 18
CUSHION
0932014017
€ 3.00
19
0918006072
ref: 19
SPACER
0918006072
€ 2.00
20
0932010038
ref: 20
CUSHION
0932010038
€ 4.00
21
0150006353
ref: 21
BOLT
€ 2.50
22
093525082300B
ref: 22
HOSE(5X8.2X2000)
093525082300B
€ 13.00
23
4448117E01
ref: 23
GUIDE,DRAIN HOSE
€ 6.00
24
0135006123
ref: 24
BOLT
€ 0.00
25
1384117E00
ref: 25
CUSHION,AIR SEAL
1384117E00
€ 18.00
29
1384117E00
ref: 29
CUSHION,AIR SEAL
1384117E00
€ 18.00
29
0150006353
ref: 29
BOLT
€ 2.50
30
0935250823008
ref: 30
HOSE,WATER DRAIN (L:2000-670)
€ 0.00
31
4448117E01
ref: 31
GUIDE,DRAIN HOSE
€ 6.00
32
0155006127
ref: 32
BOLT
0155006127
€ 2.50
33
1384117E00
ref: 33
CUSHION,AIR SEAL
1384117E00
€ 18.00
