SIGNAL GENERATOR

GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

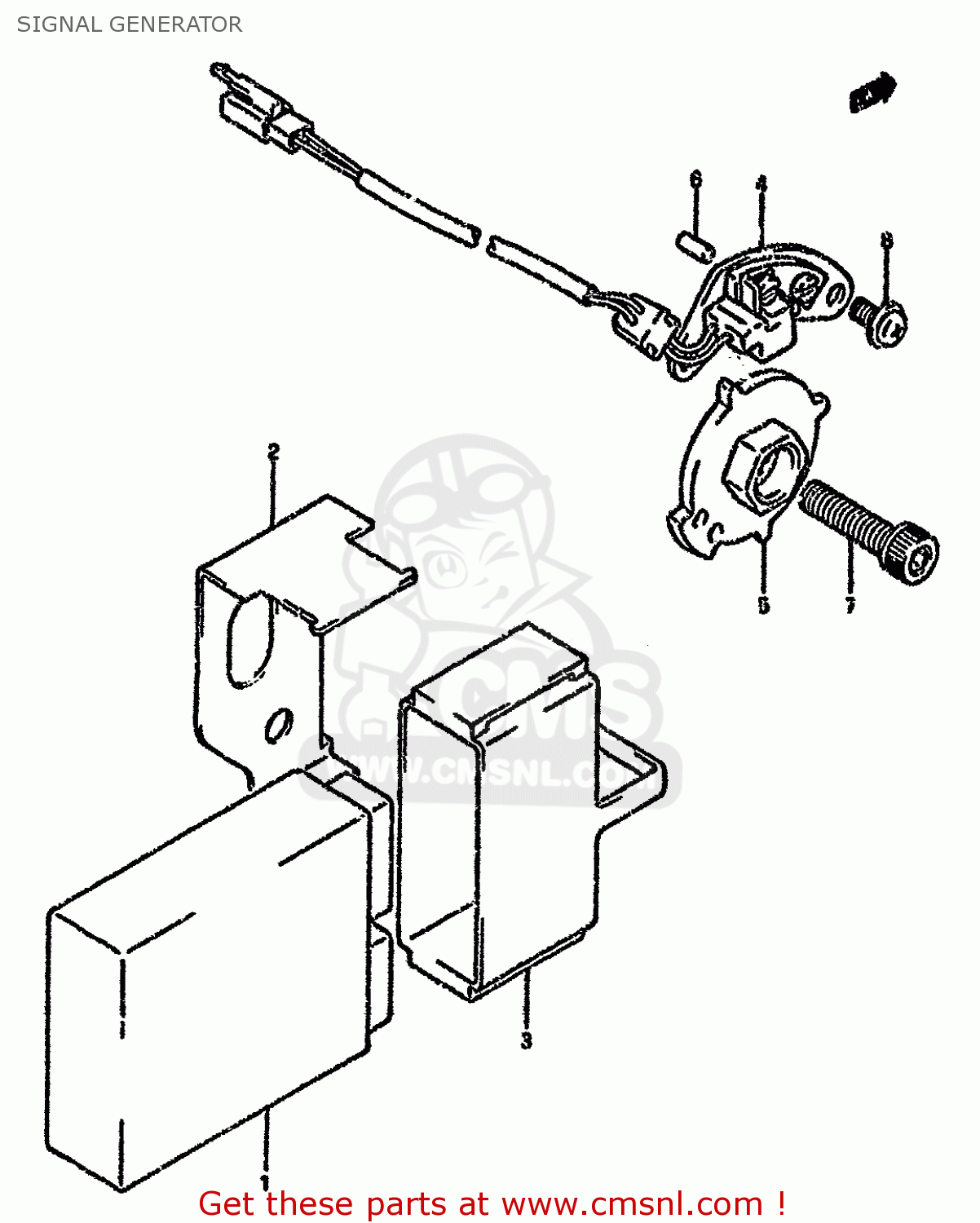

Signal generator diagram GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

SIGNAL GENERATOR GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

SIGNAL GENERATOR GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1-1

3290017E00
ref: 1-1
MODEL N/P

IGNITOR ASSY

€ 514.00

1-2

3290017E40
ref: 1-2
MODEL R/S

IGNITOR ASSY

€ 564.50

1-3

3290017E30
ref: 1-3
MODEL N/P E4

IGNITER ASSY

€ 514.00

1-4

3290017E70
ref: 1-4
MODEL R/S E4

IGNITER ASSY

€ 0.00

1-5

3290017E10
ref: 1-5
MODEL N/P E18,E39

IGNITER ASSEMBLY

€ 457.00

1-6

3290017E90
ref: 1-6
MODEL R/S E18,E39

IGNITER ASSEMBLY

€ 755.50

1-7

3290017EB0
ref: 1-7
MODEL R/S E22

IGNITER ASSY

€ 0.00

1-8

3290017E50
ref: 1-8
OPT,MODEL S E22

IGNITOR

€ 652.00

2

3293117E00
ref: 2

BRACKET,IGNITOR

€ 28.50

3-1

3298040C00
ref: 3-1
MODEL N/P

CUSHION,IGNITER

€ 9.50

3-2

3298040C01
ref: 3-2
MODEL R/S

CUSHION,IGNITOR

€ 9.50

4

3311017E00
ref: 4

STARTER,SIGNAL GENERATOR

€ 203.50

5-1

3312017E00
ref: 5-1
MODEL N/P

ROTOR,SIGNAL GENERATOR

€ 115.00

5-2

3312017E20
ref: 5-2
MODEL R/S

ROTOR,SIGNAL GENERATOR

€ 115.00

5-3

3312017E10
ref: 5-3
MODEL N/P E18,E39

ROTOR,SIGNAL GENERATOR

€ 62.00

6

0422104089
ref: 6

PIN

€ 1.50

7-1

0711008306
ref: 7-1
MODEL N/P

BOLT

€ 3.00

7-2

0713008303
ref: 7-2
MODEL R/S

BOLT

€ 3.00

8-1

0215205108
ref: 8-1
MODEL N/P

SCREW

€ 2.50

8-2

0214205103
ref: 8-2
MODEL R/S

SCREW

€ 2.50
