STEERING STEM

GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

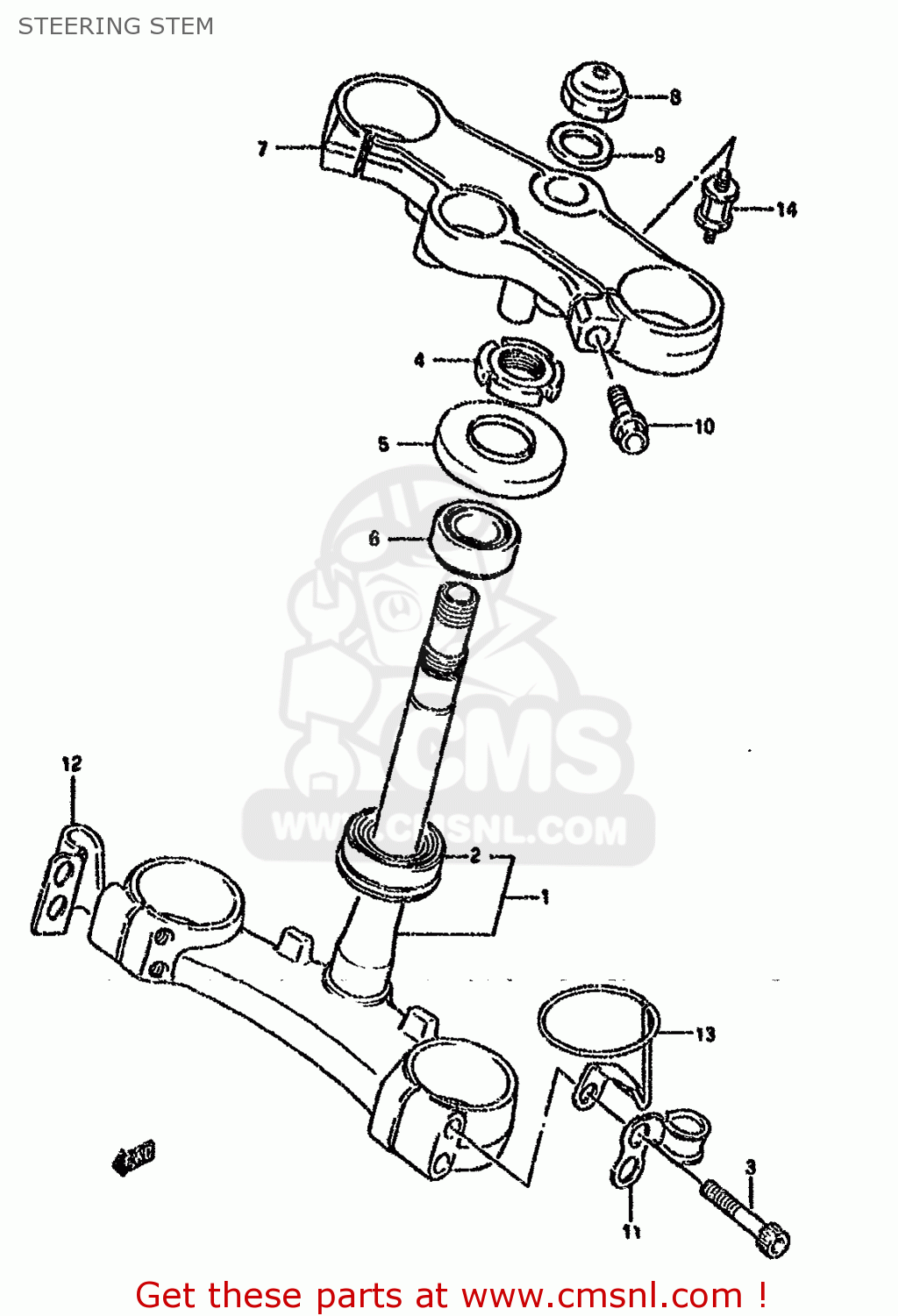

Steering stem diagram GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

STEERING STEM GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

STEERING STEM GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1-1

5141017E00
ref: 1-1
MODEL N/P

STEM,STEERING

€ 633.00

1-2

5141017E20
ref: 1-2
MODEL R

STEM,STEERING

€ 709.00

2

0926530009
ref: 2

BEARING(30X55X17)

€ 49.50

3-1

0910610022
ref: 3-1
MODEL N/P

BOLT 10X45

€ 4.00

3-2

0155008407
ref: 3-2
MODEL R

BOLT

€ 3.50

4

5163128000
ref: 4

NUT,STEERING STEM(25X44X10)

€ 12.50

5

0928534009
ref: 5

SEAL,OIL(34X69X11.9)

€ 16.50

6

0926525008
ref: 6

TAPER,ROLLER BEARING

€ 48.50

7-1

5131117E00
ref: 7-1
MODEL N/P

HEAD,STEERING STEM

€ 325.50

7-2

5131117E20
ref: 7-2
MODEL R

HEAD,STEERING STEM

€ 325.50

8-1

5135317C00
ref: 8-1
MODEL N/P

NUT,STEM HEAD

€ 30.00

8-2

5135328A10
ref: 8-2
MDOEL R

NUT

€ 30.00

9-1

5135417C00
ref: 9-1
MODEL N/P

WASHER

€ 3.00

9-2

5135624B01
ref: 9-2
MODEL R

WASHER(22.5X32X1.6)

€ 3.00

10-1

5132818D00
ref: 10-1
MODEL N/P

BOLT,UPR

€ 4.00

10-2

0155008407
ref: 10-2
MODEL R

BOLT

€ 3.50

11

3493817E10
ref: 11
MODEL N/P

GUIDE,SPEEDOMETER CABLE

€ 8.00

12

5828517C00
ref: 12
MODEL N/P

CLAMP,CLUTCH CABLE

€ 0.00

13

5174017D00
ref: 13
MODEL N/P

HOLDER,STEERING DAMPER

€ 18.50

14

1778810D00
ref: 14
MODEL N/P

BOLT,SPEEDOMETER CUSHION

€ 8.50
