REAR CALIPER (MODEL R/S)

GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

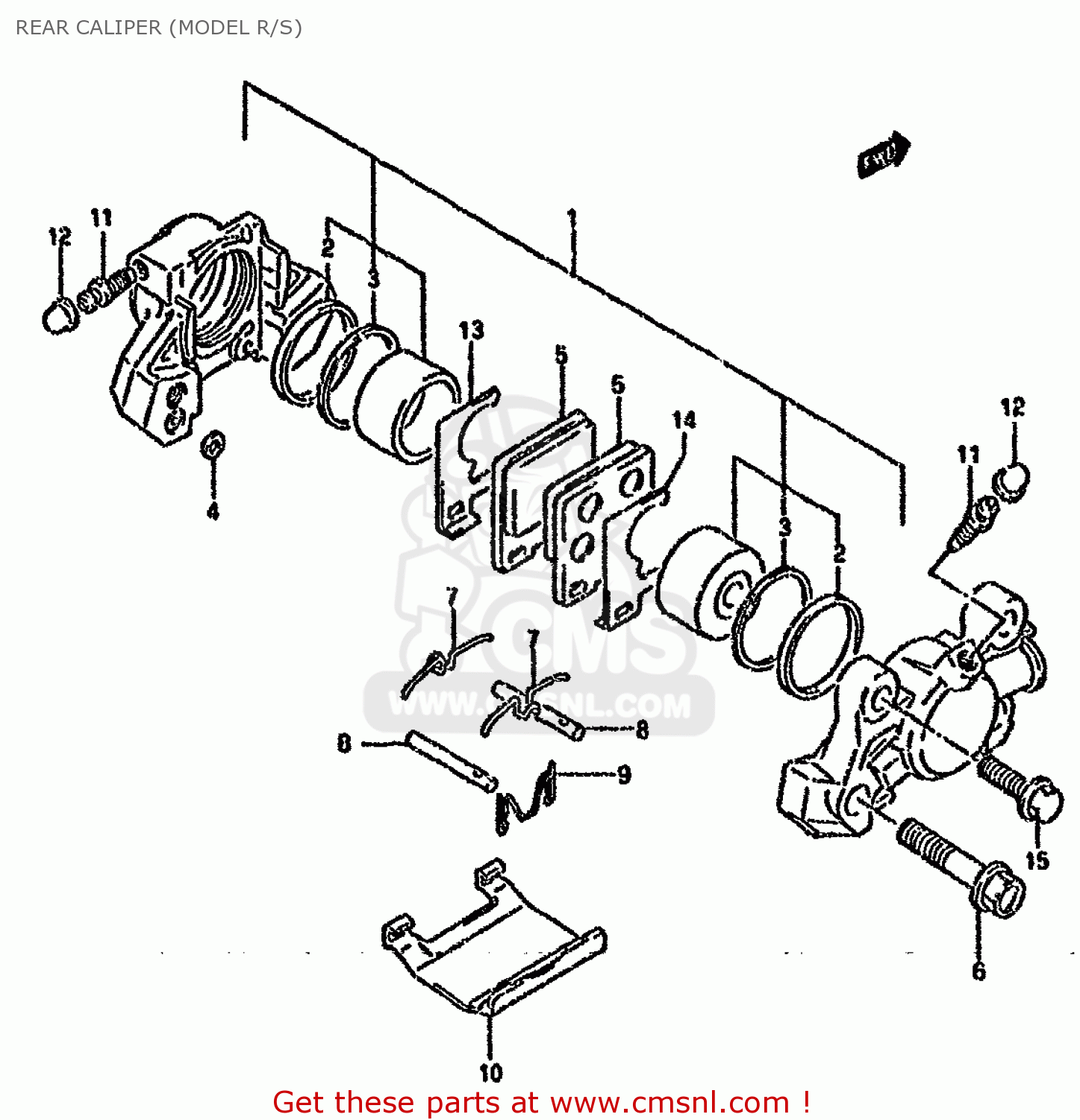

Rear caliper (model r/s) diagram GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

REAR CALIPER (MODEL R/S) GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
REAR CALIPER (MODEL R/S) GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
REAR CALIPER (MODEL R/S) GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
0
6910021E01
ref: 0
CALIPER ASSEMBLY,REAR
€ 526.00
1
6910032810
ref: 1
PISTON SET
€ 122.50
2
5910718410
ref: 2
SEAL,PISTON
5910718410
€ 17.00
3
6910832B00
ref: 3
SEAL,WIPER
6910832B00
€ 26.50
4
6910734200
ref: 4
SEAL,JOINT
6910734200
€ 12.00
5
6913021E00
ref: 5
PAD,BRAKE
€ 43.00
6-1
5914517C00
ref: 6-1
MODEL R
BOLT
5914517C00
€ 7.00
6-2
5914516700
ref: 6-2
MODEL S
BOLT,HOUSING
5914516700
€ 8.00
7
5914316700
ref: 7
SPRING
5914316700
€ 7.50
8
6914146E01
ref: 8
PIN,PAD
6914146E01
€ 9.00
9
6914246E01
ref: 9
CLIP,PAD PIN
6914246E01
€ 14.00
10
5915116701
ref: 10
COVER
5915116701
€ 13.50
11
5912118410
ref: 11
BLEEDER
5912118410
€ 8.00
12
5515666310
ref: 12
CAP,BLEEDER PLUG
5515666310
€ 6.00
13
5937120C00
ref: 13
SHIM,INNER
5937120C00
€ 7.50
14
5938120C00
ref: 14
SHIM,OUTER
5938120C00
€ 7.50
15
0155008303
ref: 15
BOLT
0155008303
€ 3.00
