REAR WHEEL (MODEL R/S)

GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

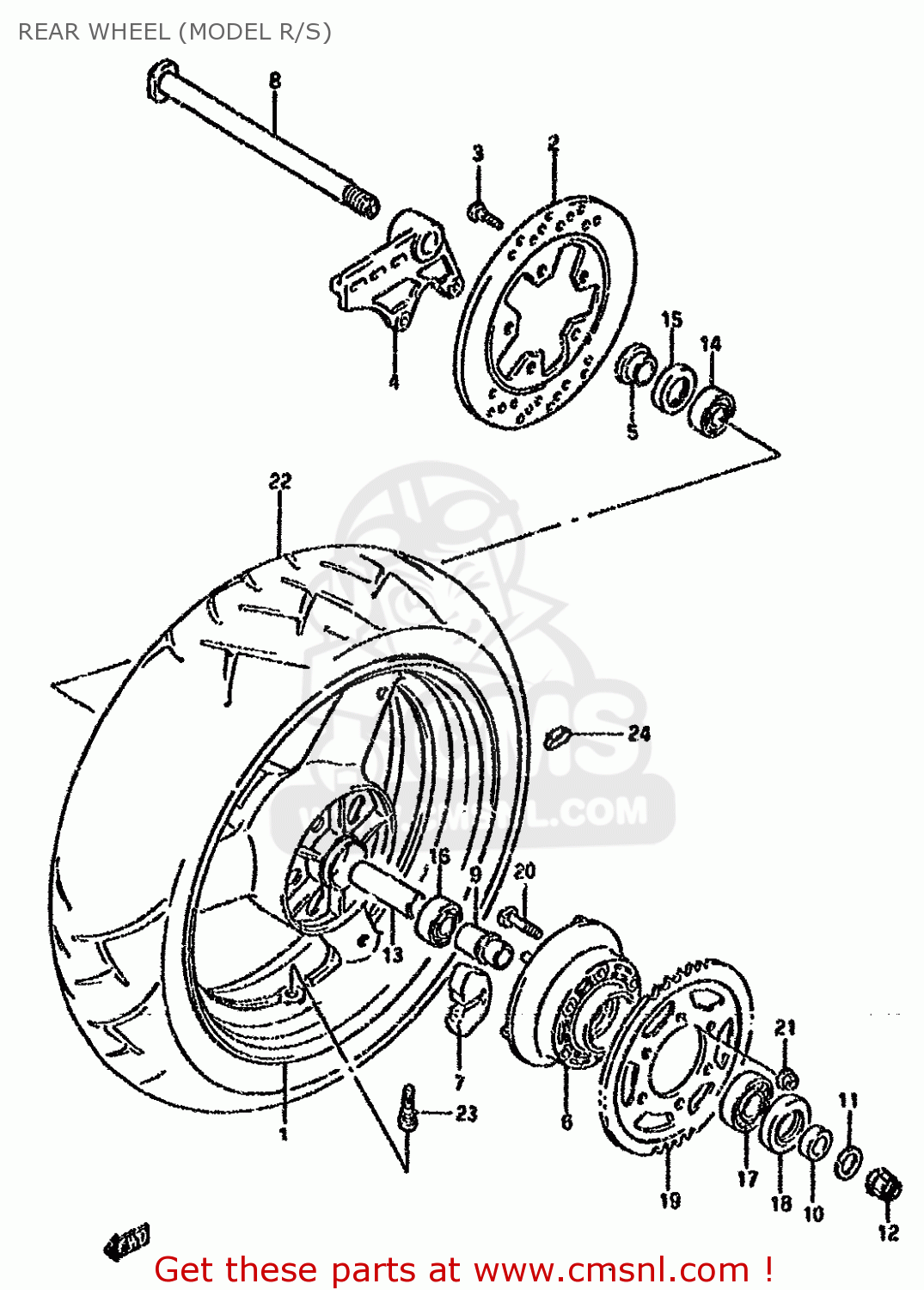

Rear wheel (model r/s) diagram GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

REAR WHEEL (MODEL R/S) GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
REAR WHEEL (MODEL R/S) GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
REAR WHEEL (MODEL R/S) GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
6411117E101MJ
ref: 1-1
MODEL R FOR M18
WHEEL,REAR
€ 979.00
1-2
6411117E101TU
ref: 1-2
FOR C3R
WHEEL,REAR (17XMT5.50)
6411117E101TU
€ 891.00
1-3
6411117E101LS
ref: 1-3
FOR 1UJ
WHEEL,REAR (17XMT5.50)
€ 909.00
1-4
6411117E101ZV
ref: 1-4
MODEL S FOR M18
WHEEL,REAR
€ 922.00
1-5
6411117E101UL
ref: 1-5
FOR D5R
WHEEL,REAR
€ 1,254.50
1-6
6411117E10Y22
ref: 1-6
FOR D4A
WHEEL,REAR
€ 979.00
2
6921121E00
ref: 2
DISC,RR BRAKE
6921121E00
€ 249.00
3
0910608125
ref: 3
BOLT 8X33
0910608125
€ 6.00
4-1
6972117E00
ref: 4-1
MODEL R
BRACKET,REAR CALIPER
€ 153.50
4-2
6972117E10
ref: 4-2
MODEL S
BRACKET,RR CALIPER
6972117E10
€ 153.50
5
6474117E00
ref: 5
SPACER,RR AXLE,R
6474117E00
€ 15.50
6
6461117E00
ref: 6
DRUM,RR SPROCKET
6461117E00
€ 156.00
7
6465117E00
ref: 7
ABSORBER,RR HUB SHOCK
6465117E00
€ 12.50
8-1
6471117E20
ref: 8-1
-64711-17E30
AXLE,REAR
€ 103.00
8-2
6471117E30
ref: 8-2
AXLE,RR
6471117E30
€ 103.00
9
6473348B00
ref: 9
RETAINER,RR HUB BEARING
6473348B00
€ 25.50
10
6475146E00
ref: 10
SPACER,RR AXLE,L
6475146E00
€ 21.50
11
0916018026
ref: 11
WASHER (18.2X28X2.6)
€ 2.50
12
0915918007
ref: 12
NUT
0915918007
€ 14.00
13
6473140C00
ref: 13
SPACER,RR WHEEL HUB BEARING
6473140C00
€ 38.00
14
0926220114
ref: 14
BEARING(20X47X14)
0926220114
€ 26.50
15
0928528001
ref: 15
SEAL,OIL(28X47X7)
0928528001
€ 11.50
16
0926220042
ref: 16
BEARING(20X47X14)
0926220042
€ 21.00
17
0926225073
ref: 17
BEARING(25X62X17)
0926225073
€ 21.50
18
0928535001
ref: 18
SEAL,OIL(35X62X8)
0928535001
€ 9.00
19
6451117D01
ref: 19
SPROCKET,RR(NT:42)
6451117D01
€ 102.50
20
0911910037
ref: 20
BOLT
0911910037
€ 6.00
21
0831931107
ref: 21
NUT
0831931107
€ 3.00
22
6311017E50
ref: 22
TIRE,REAR (180/55 ZR17 D204) (DUNLOP)
€ 0.00
23
4313024A11
ref: 23
VALVE ASSEMBLY,WHEEL,TR412
€ 7.00
24-1
5541100A00
ref: 24-1
BALANCER,WHEEL (10G)
€ 6.50
24-2
5541200A01
ref: 24-2
BALANCER,WHEEL (20G)
€ 7.00
24-3
5541300A01
ref: 24-3
BALANCER,WHEEL
€ 4.00
27-1
5541100A00
ref: 27-1
BALANCER,WHEEL (10G)
€ 6.50
27-2
5541200A00
ref: 27-2
BALANCER,WHEEL
€ 7.00
27-3
5541300A00
ref: 27-3
BALANCER,WHEEL
€ 4.00
