CYLINDER

GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

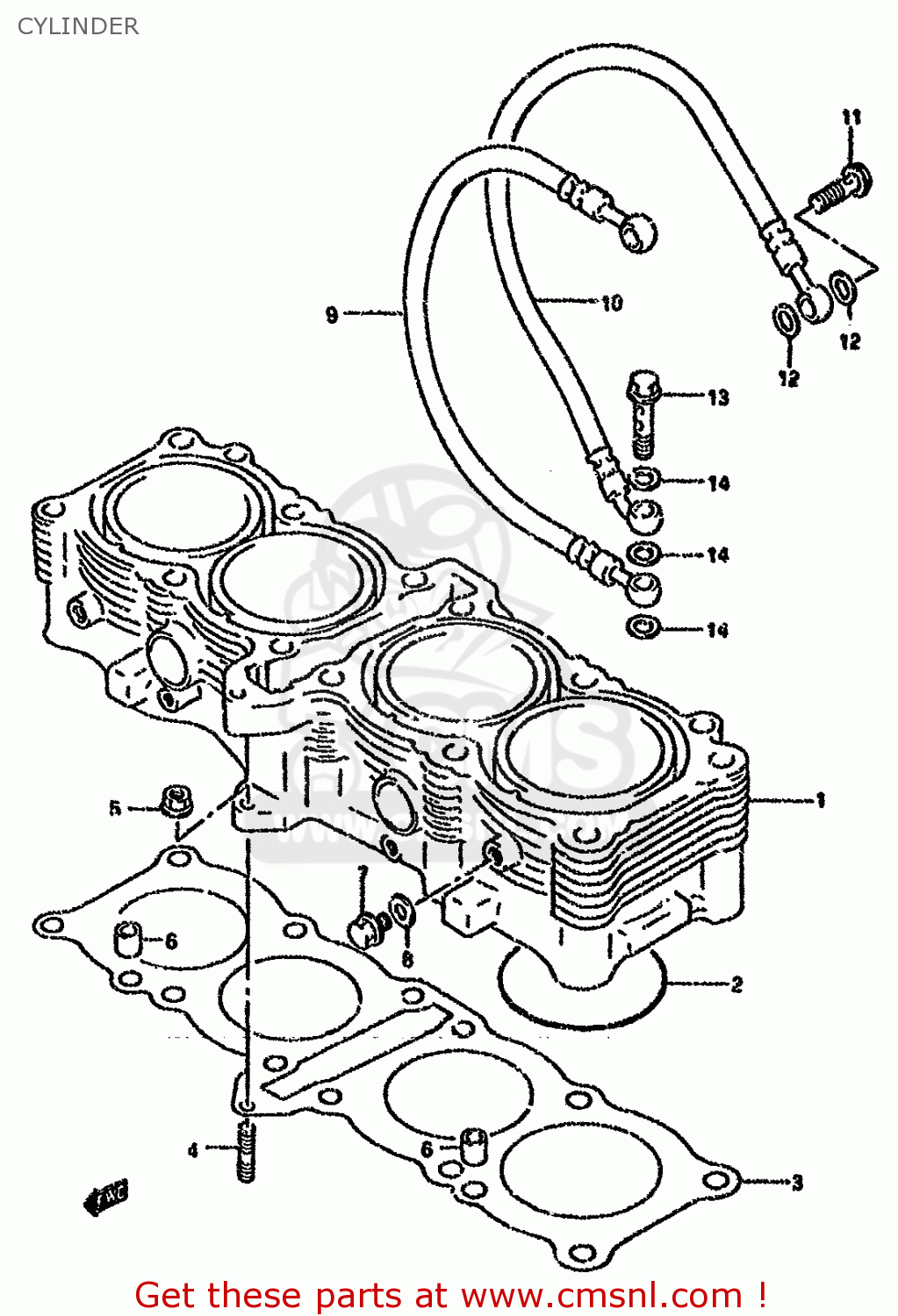

Cylinder diagram GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

CYLINDER GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

CYLINDER GSXR750W 1993 (P) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1-1

1121017E01
ref: 1-1
MODEL N/P

CYLINDER COMP

€ 990.50

1-2

1121017E10
ref: 1-2
MODEL R

CYLINDER COMP

€ 990.50

1-3

1120017E01
ref: 1-3
MODEL S

CYLINDER

€ 990.50

2

0928075004
ref: 2

O-RING

€ 19.00

3

1124117E00
ref: 3

GASKET,CYLINDER

€ 16.50

4-1

0142106205
ref: 4-1
MODEL N/P/R

STUD BOLT L:20

€ 2.50

4-2

0142106203
ref: 4-2
MODEL S

STUD,M6X1X32

€ 2.50

5-1

0831616064
ref: 5-1
MODEL N/P

NUT 6MM

€ 2.50

5-2

0831610063
ref: 5-2
MODEL R/S

NUT

€ 2.50

6

0421111189
ref: 6

PIN

€ 2.00

7

1741514300
ref: 7
MODEL N/P/R

BOLT,DRAIN

€ 2.00

8

0916808008
ref: 8
MODEL N/P/R

GASKET 8.2X14X1 (NAS)

€ 1.00

9-1

1128117E00
ref: 9-1
MODEL N/P

HOSE,OIL

€ 81.50

9-2

1128117E01
ref: 9-2
MODEL R/S

HOSE,OIL,R

€ 81.50

10-1

1128217E00
ref: 10-1
MODEL N/P

HOSE,OIL

€ 107.00

10-2

1128217E01
ref: 10-2
MODEL R/S

HOSE,OIL,L

€ 107.00

11

1128417E00
ref: 11

BOLT,OIL PIPE UNION,NO

€ 15.00

12-1

0916808026
ref: 12-1
MODEL N/P/R

GASKET (NAS)

€ 1.00

12-2

0916808016
ref: 12-2
MODEL S

GASKET(8.2X14X1) (NAS)

€ 1.00

13

1128532C00
ref: 13

BOLT,OIL PIPE UNION,NO

€ 16.50

14

0916110009
ref: 14

WASHER(10X15X1.5)

€ 2.00
