BATTERY

GT200 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

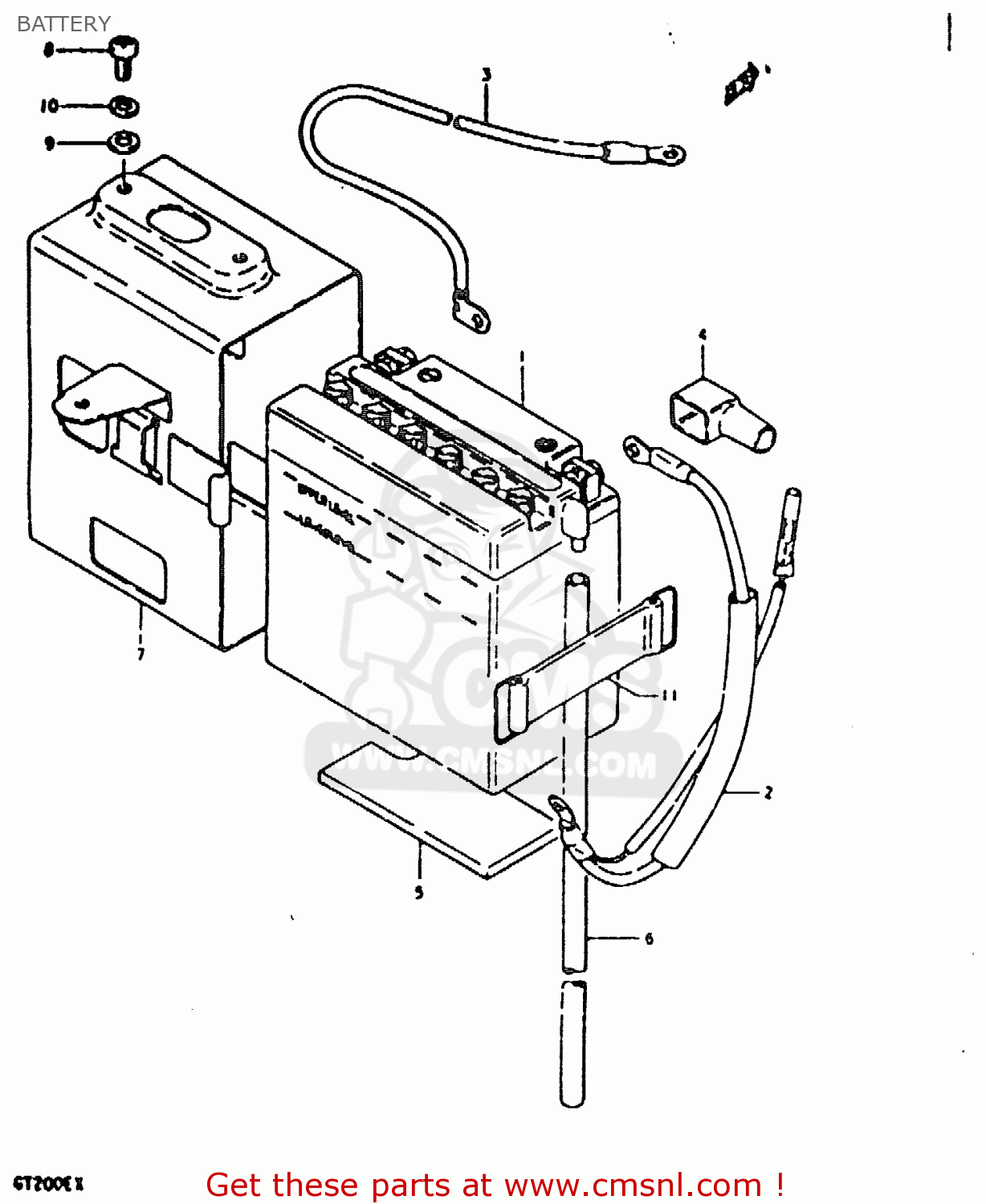

Battery diagram GT200 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

BATTERY GT200 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

BATTERY GT200 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

3361010310
ref: 1

BATTERY ASSY(YB7-A)

€ 81.50

2

3382044000
ref: 2

WIRE,BATTERY PLUS

€ 11.50

3

3385010200
ref: 3

LEAD WIRE, (-)

€ 0.00

4

3362445000
ref: 4

CAP,TERMINAL

€ 5.50

5

3365232200
ref: 5

PROTECTOR,BATTERY

€ 0.00

6

3368036200
ref: 6

HOSE, EXHAUST

€ 0.00

7

4154010200
ref: 7

HOLDER, BATTERY

€ 0.00

8

0211206128
ref: 8

SCREW 6X12

€ 2.00

9

0832221068
ref: 9

WASHER

€ 2.00

10

0832121068
ref: 10

LOCK WASHER

€ 2.50

11

0946200008
ref: 11

BAND

€ 4.50
