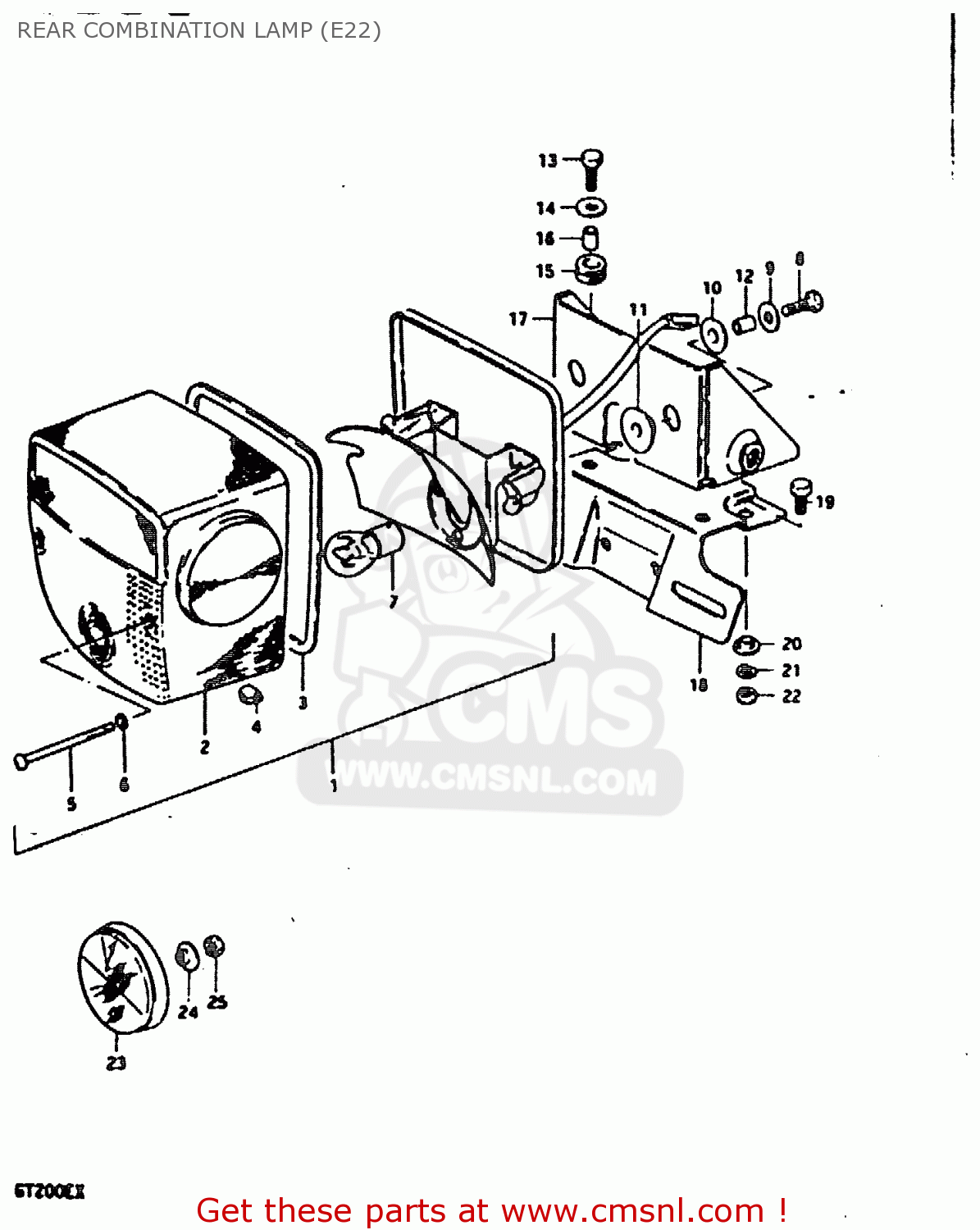

REAR COMBINATION LAMP (E22)

ref

part #

description

quantity

1

3571011390999
ref: 1

LAMP ASSY, TAIL

€ 0.00

2

3571230641
ref: 2

LENS

€ 47.00

3

3571330510
ref: 3

GASKET (NAS)

€ 6.00

4

3572830640
ref: 4

GROMMET,REAR COMBINATION LAMP

€ 3.00

5

0912504002
ref: 5

SCREW (4X55)

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0947112046
ref: 7
EXECUTED LOCALLY

BULB(12V21/5W)

€ 1.50

8

0110706208
ref: 8

BOLT

€ 2.00

9

0916006027
ref: 9

WASHER (6.5X20X1.2)

€ 2.00

10

0932014010
ref: 10

CUSHION

€ 2.50

11

0932009012
ref: 11

CUSHION

€ 6.00

12

0918006006
ref: 12

SPACER (6.8X10X11.5)

€ 3.00

13

0110706168
ref: 13

BOLT, UPPER

€ 3.00

14

0916006027
ref: 14

WASHER (6.5X20X1.2)

€ 2.00

15

0932009009
ref: 15

CUSHION

€ 5.00

16

0918006011
ref: 16

SPACER (6.1X9X9)

€ 2.00

17

3578010390
ref: 17

BRACKET, COMBINATION LAMP

€ 0.00

18

3592710301
ref: 18

PLATE, LICENSE

€ 0.00

19

0110706128
ref: 19

BOLT

€ 2.00

20

0918006048
ref: 20

SPACER

€ 2.00

21

0832121068
ref: 21

LOCK WASHER

€ 2.50

22

0831011068
ref: 22

NUT

€ 2.50

23

3597045611
ref: 23

REFLECTOR,REFLEX

€ 47.50

24

0918006048
ref: 24

SPACER

€ 2.00

25

0831011058
ref: 25

NUT

€ 2.50
