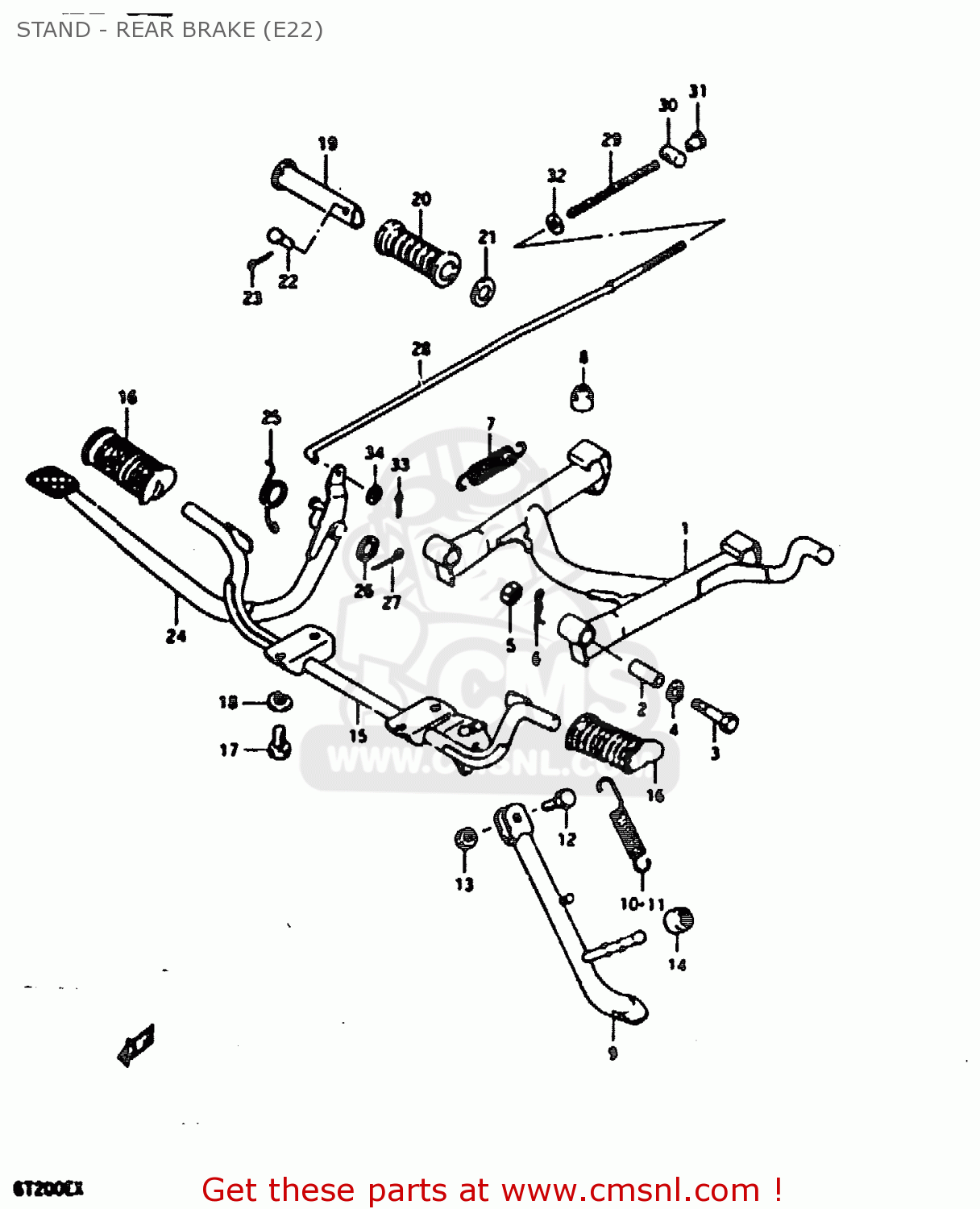

STAND - REAR BRAKE (E22) - GT200 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

ref

part #

description

quantity

1

4210010200
ref: 1

STAND, CENTER

€ 0.00

2

0918010001
ref: 2

SPACER(10.5X16X30)

€ 3.50

3

0910110020
ref: 3

BOLT 10X52

€ 9.50

4

0832121108
ref: 4

LOCK WASHER

€ 2.00

5

0831011108
ref: 5

NUT

€ 2.50

6

0938510001
ref: 6

CLIP

€ 1.50

7

0944317007
ref: 7

SPRING

€ 4.50

8

0932110001
ref: 8

CUSHION

€ 2.50

9

4231010310
ref: 9

STAND, PROP

€ 0.00

10

0944311008
ref: 10

SPRING

€ 5.50

11

0944319002
ref: 11

SPRING, OUTER

€ 4.00

12

0911110013
ref: 12

BOLT

€ 4.50

13

0831022108
ref: 13

NUT

€ 2.50

14

0932007001
ref: 14

CUSHION

€ 4.00

15

4351010310
ref: 15

BAR, FRONT FOOTREST

€ 0.00

16

4355139100
ref: 16

RUBBER,FR FOOTREST

€ 7.50

17

0110708168
ref: 17

BOLT

€ 2.00

18

0832121088
ref: 18

LOCK WASHER

€ 2.00

19

4361003001
ref: 19

BAR,FOOTREST RUBBER

€ 5.50

20

4361203001
ref: 20

RUBBER,PILLION FOOTREST

€ 3.50

21

0916019006
ref: 21

WASHER (19.5X32X2)

€ 2.00

22

0920006010
ref: 22

PIN

€ 2.50

23

0411120208
ref: 23

PIN 20X20

€ 1.50

24

4311010200
ref: 24

PEDAL,BRAKE

€ 41.50

25

0944831011
ref: 25

SPRING

€ 3.50

26

0916015002
ref: 26

WASHER(15.5X26X2.3)

€ 2.00

27

0411130308
ref: 27

COTTER PIN

€ 1.50

28

4331010300
ref: 28

ROD ASSY, REAR BRAKE

€ 7.00

29

0944009004
ref: 29

SPRING

€ 2.00

30

0920913003
ref: 30

PIN

€ 3.50

31

0915006001
ref: 31

NUT

€ 3.50

32

0832221068
ref: 32

WASHER

€ 2.00

33

0411120208
ref: 33

PIN 20X20

€ 1.50

34

0832221058
ref: 34

WASHER

€ 2.50

STAND - REAR BRAKE (E22)
