FRONT WHEEL (GT200EX)

GT200 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

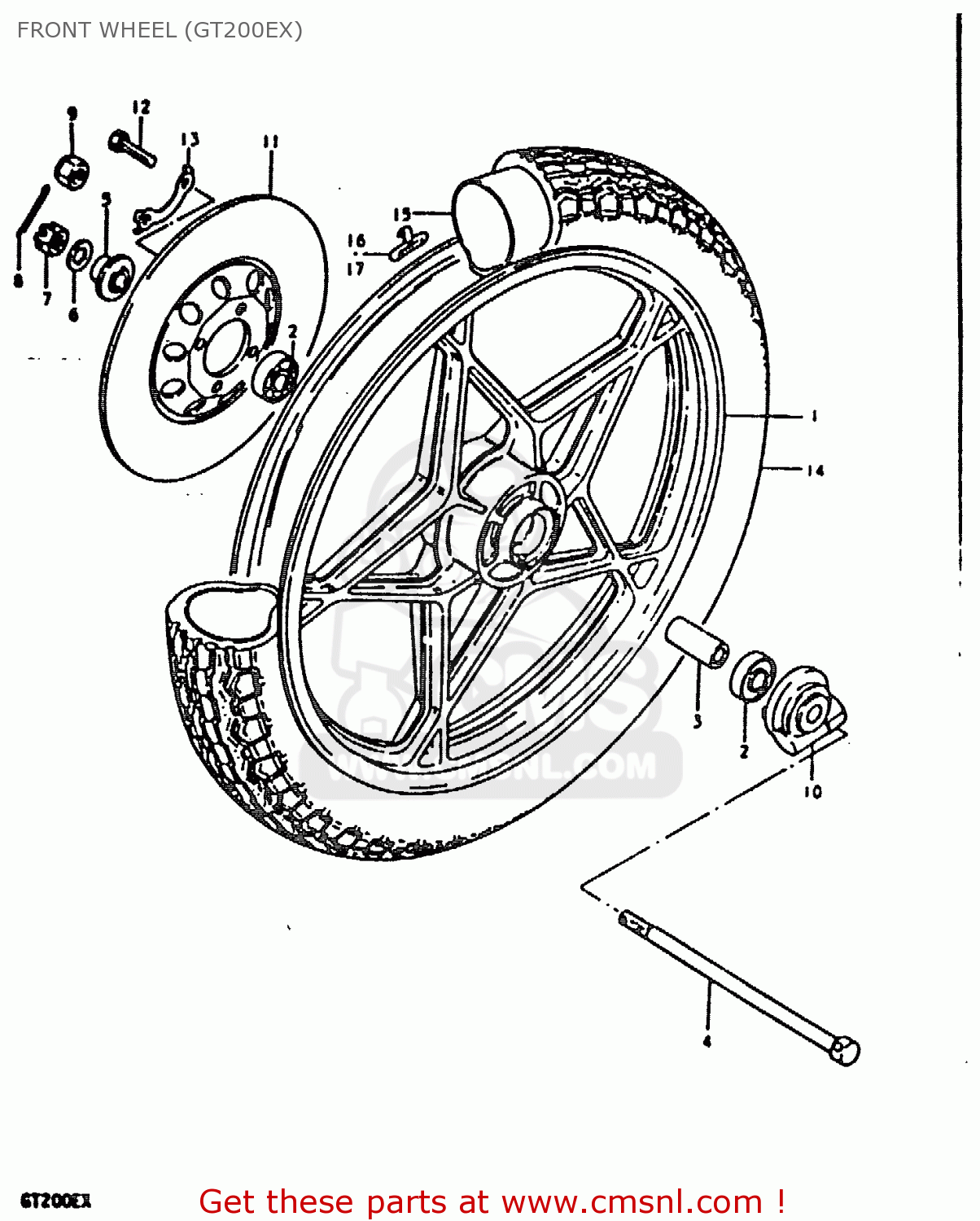

Front wheel (gt200ex) diagram GT200 1981 (X) (E01 E02 E06 E07 E09 E13 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

5411111301
ref: 1

WHEEL, FRONT

€ 429.00

0812363017
ref: 2

BEARING

€ 13.50

0918012041
ref: 3

SPACER (12.6X19X52)

€ 4.50

5471111301
ref: 4

AXLE, FRONT

€ 24.00

5474011300
ref: 5

SPACER,FR AXLE,L

€ 13.50

0832211128
ref: 6

WASHER

€ 2.00

0831431128
ref: 7

NUT 12MM

€ 2.00

0411130308
ref: 8

COTTER PIN

€ 1.50

NOTUSED
ref: 9

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

5460036200
ref: 10

BOX ASSY,SPEEDOMETER GEAR

€ 95.50

5921136202
ref: 11

DISC,BRAKE

€ 179.50

0910008140
ref: 12

BOLT(8X25)

€ 2.00

0916908019
ref: 13

WASHER

€ 2.00

5510036600
ref: 14

TIRE,FRONT

€ 201.00

5520011601
ref: 15

TUBE,INNER

€ 24.50

5520011601
ref: 15

TUBE,INNER

€ 24.50

5541147001
ref: 16
20G

BALANCER,WHEEL

€ 4.00

5541247001
ref: 17
30G

BALANCER,WHEEL

€ 3.50

FRONT WHEEL (GT200EX)

all assemblies
