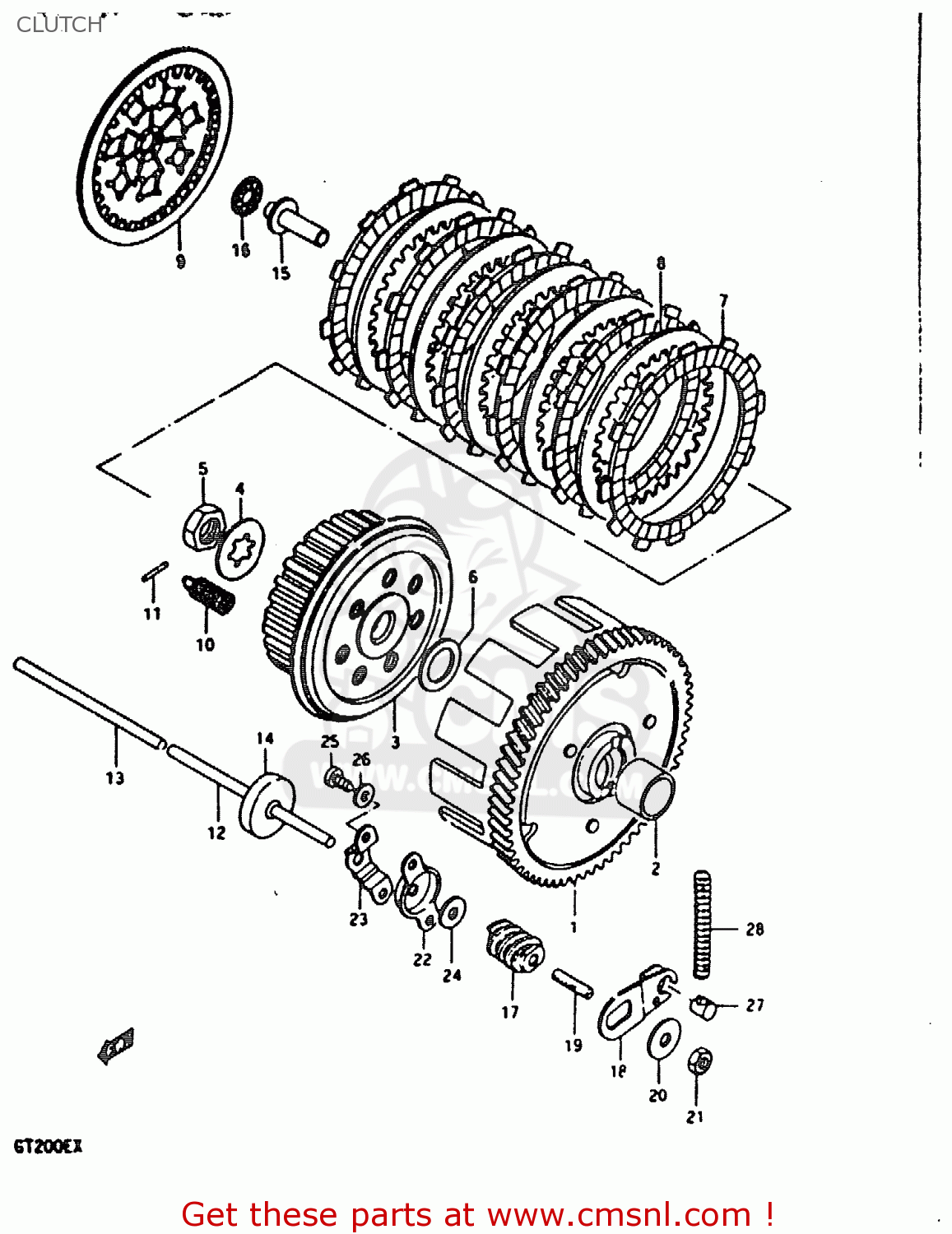

CLUTCH

ref

part #

description

quantity

1

2120010200
ref: 1
NT:61

GEAR ASSY, PRIMARY DRIVEN

€ 0.00

2

0918020068
ref: 2

SPACER

€ 0.00

3

2141028700
ref: 3

HUB,CLUTCH SLEEVE

€ 54.00

4

0916717002
ref: 4

WASHER,LOCK

€ 2.00

5

0914016001
ref: 5

NUT

€ 4.50

6

0821117282
ref: 6

WASHER

€ 3.00

7

2144128300
ref: 7

PLATE,CLUTCH DRIVE

€ 8.50

8

2145128000
ref: 8

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

9

2146028000
ref: 9

PLATE,CLUTCH PRESSURE

€ 21.50

10

0944312010
ref: 10

SPRING

€ 2.00

11

0926102001
ref: 11

PIN(2.5X19.8)

€ 1.50

12

2311110000
ref: 12

ROD,CLUTCH PUSH

€ 7.50

13

2311110200
ref: 13

ROD,CLUTCH PUSH NO.2

€ 9.00

14

0928506009
ref: 14

SEAL,OIL(6X30X7)

€ 5.00

15

2312139100
ref: 15

PIECE, PUSH

€ 14.00

16

0926310002
ref: 16

BEARING(10X22X2.8)

€ 8.50

17

2321136200
ref: 17

SCREW,CLUTCH RELEASE

€ 20.50

18

2321207202
ref: 18

ARM,CLUTCH RELEASE

€ 9.50

19

0913406001
ref: 19

SCREW

€ 3.00

20

0916006020
ref: 20

WASHER

€ 2.00

21

0831022068
ref: 21

NUT 6MM

€ 2.50

22

2324136200
ref: 22

COVER

€ 4.50

23

2324536200
ref: 23

HOLDER,DUST SEAL

€ 5.50

24

0928105001
ref: 24

SEAL,DUST(5.3X13X5)

€ 2.50

25

0311105128
ref: 25

SCREW

€ 1.50

26

0832221058
ref: 26

WASHER

€ 2.50

27

2322207000
ref: 27

PIECE,RELEASE ARM END

€ 5.00

28

0944008001
ref: 28

SPRING

€ 2.00

all assemblies
